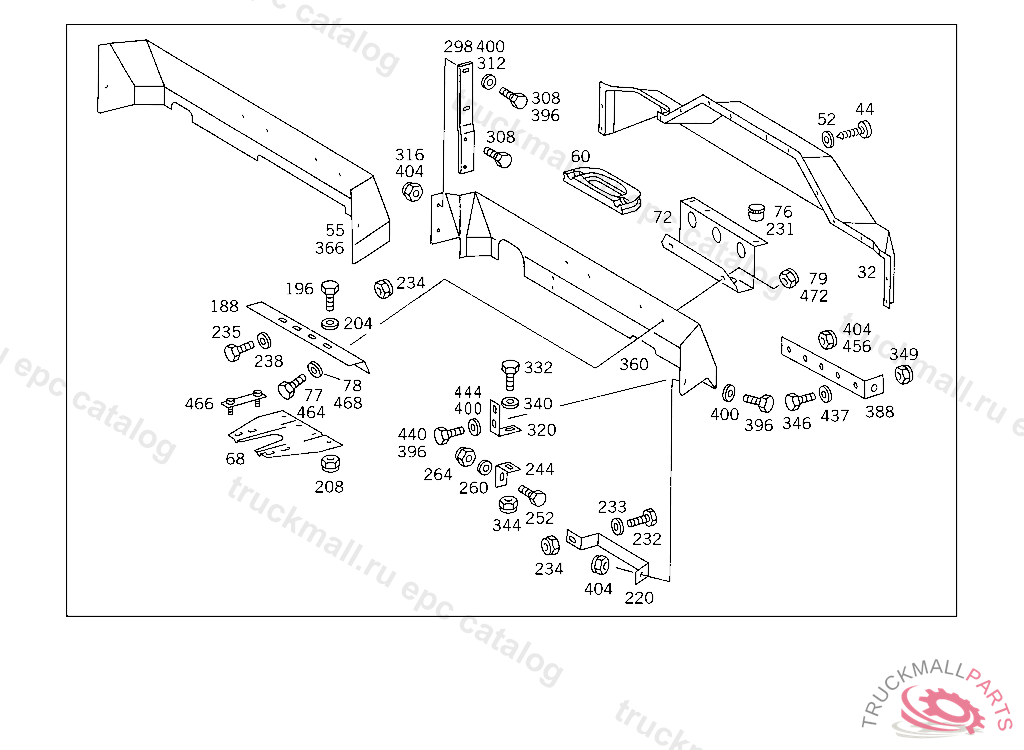

Поз.
Артикул
Описание
32
COVERING CHASSIS
32
COVERING CHASSIS
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COVERING TO CAB
52
WASHER COMPRESSED AIR LINE TO BRACKET
55
ANTINOISE CAPSULE CHASSIS
55
ANTINOISE CAPSULE CHASSIS
60
BOOT CROSS CONNECTION
60
BOOT CROSS CONNECTION
68
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 099117, Replaced By: A6205244740
68
BRACKET , Replaced By: A6205234740
68
BRACKET COVERING
68
BRACKET CROSS CONNECTION
68
BRACKET COVERING
72
BRACKET CROSS CONNECTION
72
BRACKET ,5 002371 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290068
76
PLUG BRACKET TO STRUT
77
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
77
SCREW END PIECE TO EXHAUST PIPE M 10X25
78
WASHER BRACKET TO COVERING
78
WASHER , Replaced By: N000125010532
78
WASHER , Replaced By: N009021010209
78
WASHER RADIATOR TO RUBBER MOUNTING
79
NUT STRAP TO BRACKET
79
NUT , Replaced By: N910113010000
188
MOUNTING ANGLE COVERING
188
MOUNTING ANGLE BRACKET TO MOUNTING ANGLE
196
SCREW PIPE CLAMP
196
SCREW , Replaced By: N304017008021
204
WASHER , Replaced By: N000125008443
204
WASHER , Replaced By: N009021008213
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER BRACKET TO LEFT SIDE MEMBER
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
NUT , Replaced By: N913004008001
220
BRACKET LEFT
231
PLUG BRACKET TO STRUT
232
SCREW CONSOLE TO SIDE MEMBER
232
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
232
SCREW END PIECE TO EXHAUST PIPE M 10X25
232
SCREW , Replaced By: N308676012026
233
WASHER , Replaced By: N000125010532
233
WASHER RADIATOR TO RUBBER MOUNTING
233
WASHER
234
NUT SUPPORT TO SIDE MEMBER
234
NUT STRAP TO BRACKET
234
NUT , Replaced By: N910113010000
235
SCREW , Replaced By: N304017008021
235
SCREW , Replaced By: N304017008034
235
SCREW , Replaced By: N304017008016
235
SCREW PIPE CLAMP
235
SCREW BRACKET TO CROSS CONNECTION STRUT
235
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
238
WASHER BRACKET TO LEFT SIDE MEMBER
238
WASHER EXHAUST MUFFLER TO STRAP
238
WASHER , Replaced By: N000125008443
238
WASHER , Replaced By: N009021008213
244
BRACKET , Replaced By: A6735460243
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6205240340
244
BRACKET COVERING,5 736351
244
BRACKET COVERING
244
BRACKET LEFT
244
BRACKET COVERING
244
BRACKET FUEL LINES TO TRANSMISSION
244
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
252
SCREW REAR EXHAUST PIPE TO MUFFLER
260
WASHER BRACKET TO FRAME
260
WASHER RADIATOR TO RUBBER MOUNTING
260
WASHER , Replaced By: N000125010532
264
NUT , Replaced By: N913004008001
264
NUT , Replaced By: N910113010000
264
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
264
NUT STRAP TO BRACKET
298
BRACKET MANUAL PUMP
298
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 099117, Replaced By: A6205245040
308
SCREW , Replaced By: N304017010002
308
SCREW BRACKET TO SIDE MEMBER
308
SCREW EXHAUST PIPE TO BRACKET
308
SCREW REAR EXHAUST PIPE TO MUFFLER
308
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
312
WASHER RADIATOR TO RUBBER MOUNTING
312
WASHER , Replaced By: N000125010532
316
NUT , Replaced By: N910113010000
316
NUT STRAP TO BRACKET
320
BRACKET BRACKET TO CROSS MEMBER
320
BRACKET , Replaced By: A6205243040
320
BRACKET , Replaced By: A6205243040
320
BRACKET COVERING
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
332
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
340
WASHER RADIATOR TO RUBBER MOUNTING
340
WASHER , Replaced By: N000125010532
344
NUT , Replaced By: N910113010000
344
NUT STRAP TO BRACKET
346
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
346
SCREW , Replaced By: N304017008027
346
SCREW , Replaced By: N304017008016
346
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
349
NUT , Replaced By: N913004008001
349
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
360
COVERING CHASSIS
360
COVERING CHASSIS
360
COVERING CHASSIS
360
ANTINOISE CAPSULE CHASSIS
360
ANTINOISE CAPSULE CHASSIS
360
COVERING CHASSIS
360
COVERING CHASSIS
360
COVERING , Replaced By: A6525202622
360
COVERING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 771050, Replaced By: A6555203722
360
COVERING CHASSIS
360
COVERING CHASSIS
360
COVERING CHASSIS
360
COVERING CHASSIS
366
COVERING CHASSIS,5 736351
366
ANTINOISE CAPSULE CHASSIS
388
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
388
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
388
BRACKET , Replaced By: A3184923441
388
BRACKET , Replaced By: A3604292940
388
BRACKET , Replaced By: A3184923641
396
SCREW , Replaced By: N304017008021
396
SCREW , Replaced By: N304017008018
396
SCREW , Replaced By: N304017008034
396
SCREW , Replaced By: N304017008016
396
SCREW , Replaced By: A0079900801
396
SCREW REDUCTION VALVE TO BRACKET
396
SCREW BRACKET TO CROSS CONNECTION STRUT
396
SCREW PIPE CLAMP
396
SCREW SUPPORT TO FENDER
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
400
WASHER BRACKET TO LEFT SIDE MEMBER
400
WASHER EXHAUST MUFFLER TO STRAP
400
WASHER , Replaced By: N000125008443
400
WASHER , Replaced By: N009021008213
404
NUT , Replaced By: N913004008001
404
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
437
SCREW , Replaced By: N304017008016
437
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
440
SCREW , Replaced By: N304017008021
440
SCREW PIPE CLAMP
444
WASHER RADIATOR TO RUBBER MOUNTING
444
WASHER , Replaced By: N000125010532
456
NUT , Replaced By: N913004008001
456
NUT , Replaced By: N910113008007
456
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
456
NUT COVERING TO BRACKET
464
SCREW END PIECE TO EXHAUST PIPE M 10X25
466
BRACKET STRUT TO CROSS MEMBER
468
WASHER RADIATOR TO RUBBER MOUNTING
468
WASHER , Replaced By: N000125010532
472
NUT , Replaced By: N910113010000
472
NUT STRAP TO BRACKET
999
RUBBER BUFFER , NOT USED
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
999
SUPPORT , Replaced By: A3874320916
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
999
SUPPORT , Replaced By: A6214320116
999
BRACKET MANUAL PUMP
999
BRACKET LEFT
999
BRACKET RIGHT,5 385158
999
COVERING CHASSIS
999
BRACKET LEFT
999
BRACKET RIGHT
999
ANGLE LEFT
999
SUPPORT BRAKE LINE COUPLINGS
999
ANGLE RIGHT
999
COVERING CHASSIS
999
BRACKET , Replaced By: A6555240040
999
BRACKET , Replaced By: A6555240040
999
BRACKET HAND PUMP
999
FLAP CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
BRACKET BOOT
999
BRACKET CABLE HARNESS MOUNTING
999
WASHER , Replaced By: N000125010532
999
SCREW , Replaced By: N304017008021
999
WASHER , Replaced By: N009021008213
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
