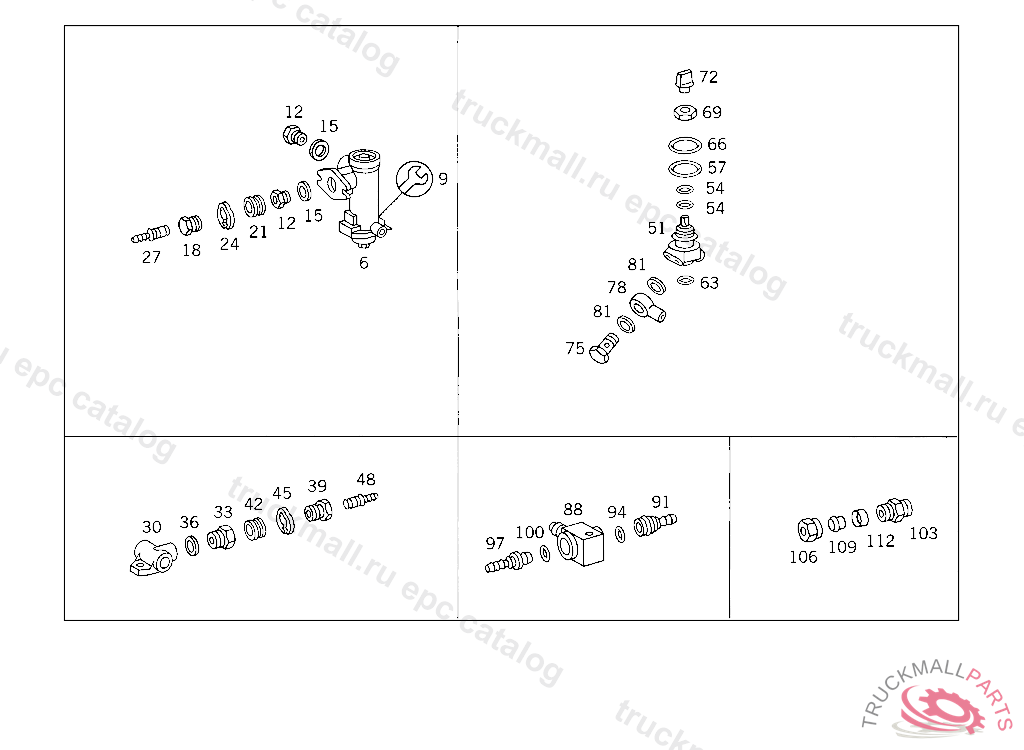

Поз.
Артикул
Описание
6
VALVE (PRESSURE LIMIT VALVE)
9
VALVE REPAIR KIT
9
REPAIR KIT , Replaced By: A0024292844
12
FITTING AIR RESERVOIR,CONNECTION: "11"
15
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
18
SCREW. UNION SCREW LINE CONNECTION
18
SCREW. UNION SCREW , Replaced By: A0009973734
21
SEAL RING , Replaced By: A0009940747
21
LOCK RING LINE CONNECTION
24
LOCK LINE CONNECTION
24
LOCK , Replaced By: A0009945448
27
CONNECTOR , Replaced By: A0029905378
27
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
30
DISTRIBUTOR FRONT AXLE BRAKE CIRCUIT,5 411349
33
FITTING AIR RESERVOIR,CONNECTION: "11"
36
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
39
SCREW. UNION SCREW LINE CONNECTION
39
SCREW. UNION SCREW , Replaced By: A0009973734
42
SEAL RING , Replaced By: A0009940747
42
LOCK RING LINE CONNECTION
45
LOCK LINE CONNECTION
45
LOCK , Replaced By: A0009945448
48
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
48
CONNECTOR , Replaced By: A0029905378
51
VALVE 4/2-WAY BOSCH
51
VALVE 3/2-WAY,P.T.O. CONTROL "BOSCH"
54
SEAL RING
57
SEAL RING
63
SEAL RING
66
SEAL RING
69
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
72
HANDLE 3/2-WAY VALVE TO BRACKET
75
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
78
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
81
SEAL RING VALVE,CONNECTION "10"
88
CONNECTOR DISTRIBUTOR TO FRAME
91
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
94
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
97
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
100
SEAL RING
103
FITTING TEST PLUG CONNECTION
106
UNION NUT
109
SEAL CONE
109
GLAND , Replaced By: A0019901667
112
SLEEVE LINE CONNECTION
999
BREATHER TRANSMISSION
999
ACTUATING PART
999
SUPPORT SHIFTING CYLINDER
999
BREATHER , Replaced By: A0002600758
999
CONNECTOR SHIFTING CYLINDER
999
SHIFTING CYLINDER PNEUMATIC SHIFTING CYLINDER
999
COTTER PIN CYLINDER TO BRACKET
999
PIN POWER CYLINDER TO EXHAUST SHUNT FLAP
999
SCREW-IN FITTING 3/2-WAY VALVE,CONNECTIONS: "10,20,40"
