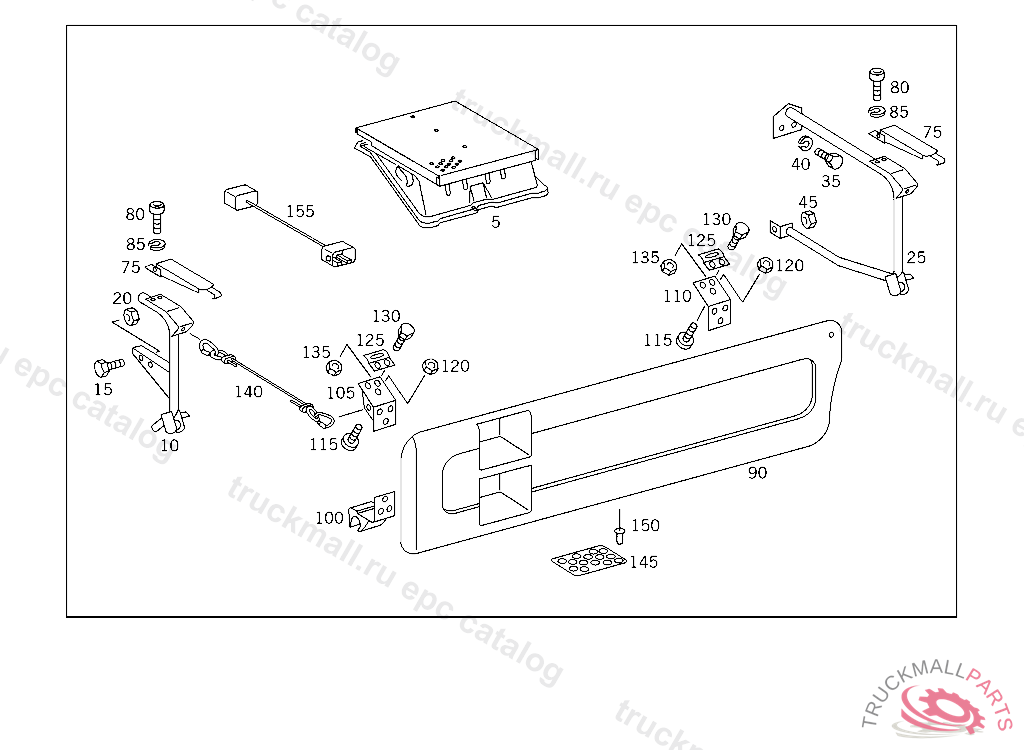

Поз.
Артикул
Описание
5
PANELLING
10
CLAMP FRONT LEFT
15
SCREW BRACKET TO SIDE MEMBER
20
NUT STRAP TO BRACKET
20
NUT , Replaced By: N910113010000
25
CLAMP REAR LEFT
35
HEXAGON HEAD BOLT , Replaced By: A0029902704
40
LOCK WASHER FITTING TO BRACKET
45
NUT , Replaced By: N913004020003
45
NUT CROSS MEMBER TO REINFORCEMENT
75
FASTENING CLAMP AT SUPPORT
80
CYLINDRICAL HEAD SCREW. SCREW FASTENING CLAMP ON HOLDER
85
LOCK WASHER BRACKET TO STEERING COLUMN END
90
PANELLING LEFT, WHEELBASE: 3600 MM
90
PANELLING LEFT, WHEELBASE: 3500 MM
90
PANELLING LEFT, WHEELBASE: 3800 MM
100
RUBBER MOUNTING FRONT LEFT AND RIGHT, REAR LEFT
100
RUBBER BUFFER REAR RIGHT
105
BRACKET LEFT FRONT, RIGHT REAR
110
BRACKET RIGHT FRONT,LEFT REAR
115
RUBBER BUFFER ON SIDE PANELLING
120
NUT , Replaced By: N913004008001
120
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
125
TOW HOOK AT BRACKET
130
SCREW HOOK TO BRACKET
135
NUT HOOK TO BRACKET
140
CABLE RETAINER ON SIDE PANELLING
145
ROCKER PANEL ROCKER PANEL
150
RIVET REST TO ROCKER PANEL
155
ELECTRIC CABLE ONLY APPLICABLE TO WHEELBASE: 3800 MM
999
STEP
999
MOUNTING ANGLE
999
STEP
