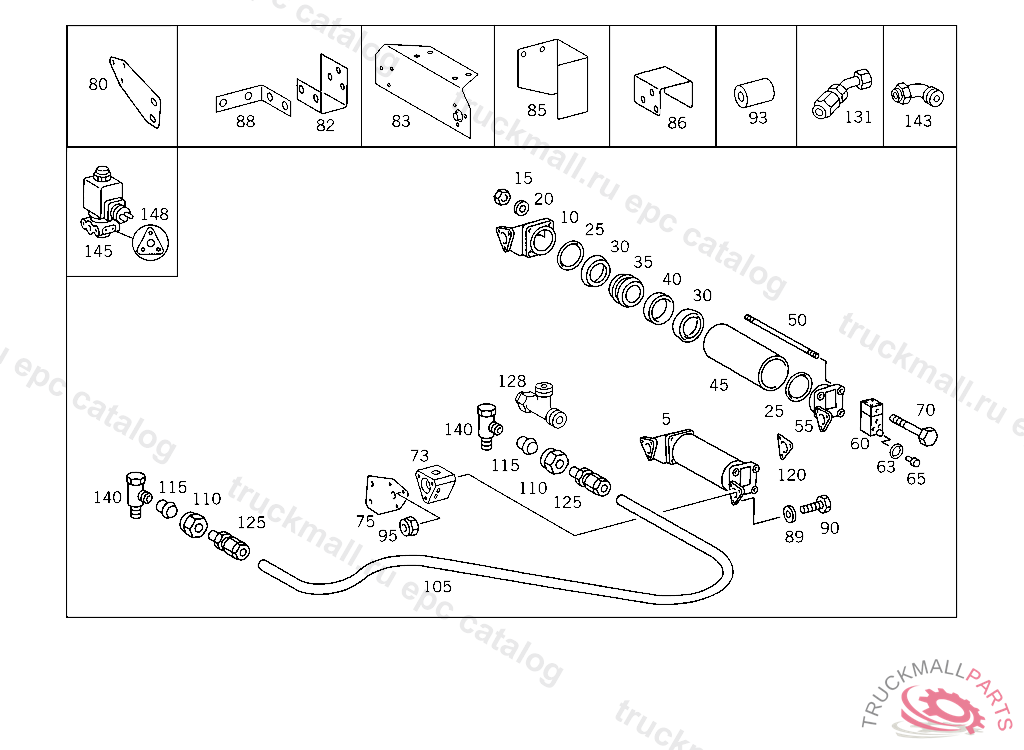

Поз.
Артикул
Описание
5
VACUUM TANK OIL COOLER
10
COVER
15
NUT
20
WASHER , Replaced By: N000125008443
20
WASHER EXHAUST MUFFLER TO STRAP
25
SEAL RING
30
SEAL RING
35
PISTON
40
PISTON GUIDE
45
PIPE
50
STUD
55
COVER
60
VALVE
63
SEAL RING
65
VALVE
70
SCREW , Replaced By: N304017008043
70
SCREW VALVE TO BRACKET M 8X55
73
FLANGE RESERVOIR
75
BRACKET RESERVOIR
80
BRACKET RESERVOIR
80
BRACKET RESERVOIR
82
BRACKET RESERVOIR
82
BRACKET RESERVOIR
83
BRACKET RESERVOIR
85
BRACKET RESERVOIR
85
BRACKET RESERVOIR
86
PROTECTIVE PLATE ACTIVATING AGENT RESERVOIR
88
BRACKET PROTECTIVE PLATE
89
WASHER , Replaced By: N000125017016
89
WASHER BRACKET TO FRAME
90
SCREW REAR AXLE REGULATING SOLENOID VALVE
90
SCREW , Replaced By: N304017008018
90
SCREW , Replaced By: N304017008027
90
SCREW SUPPORT TO FENDER
90
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
93
SLEEVE BRACKET TO TRANSMISSION
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
95
NUT , Replaced By: N913004008001
105
HOSE FROM OIL COOLER TO TRANSMISSION, ORDER BY THE METER
110
UNION NUT LINE CONNECTION
110
UNION NUT LINE CONNECTION
115
GLAND LINE CONNECTION
115
GLAND LINE CONNECTION
120
GASKET LINE CONNECTION
125
FITTING LINE CONNECTION
128
FITTING LINE CONNECTION
131
FITTING LINE CONNECTION
140
SCREW CONNECTION LINE CONNECTION
143
ELBOW FITTING LINE CONNECTION
145
VALVE (3/2-WAY SOLENOID VALVE) EKS
145
VALVE (3/2-WAY SOLENOID VALVE) WABCO
145
VALVE (3/2-WAY SOLENOID VALVE) KNORR
145
VALVE , Replaced By: A0049975736
148
GASKET KITKNORR
999
LINE FROM OIL COOLER TO TRANSMISSION
999
LINE FROM OIL COOLER TO TRANSMISSION
999
BRACKET PROTECTIVE PLATE
