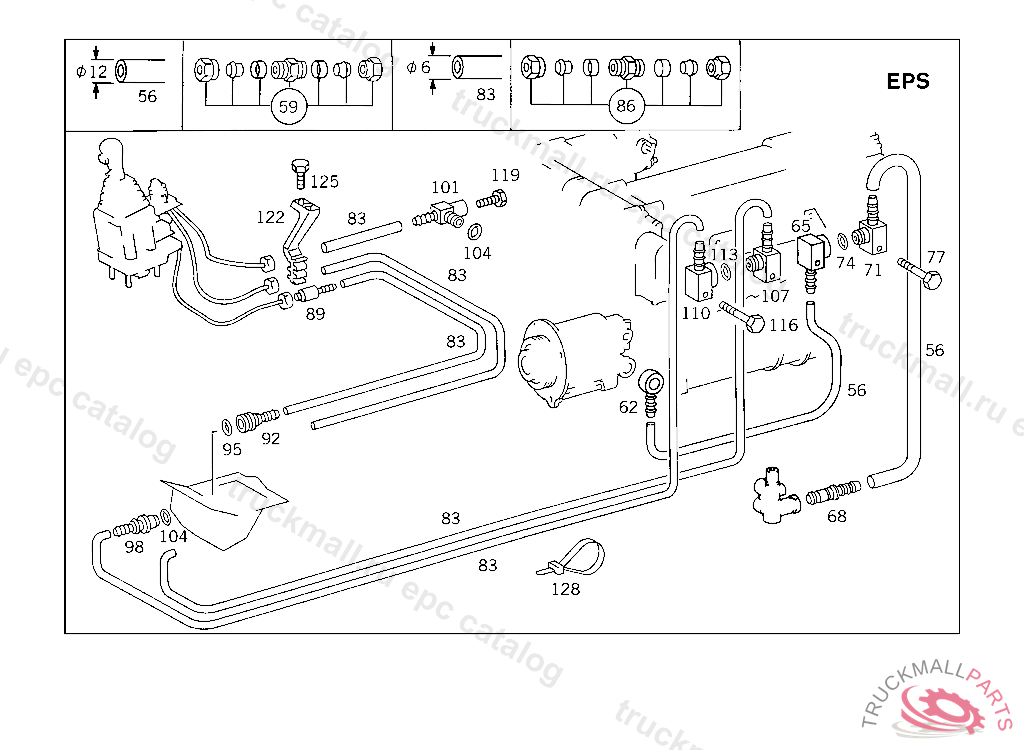

Поз.
Артикул
Описание
56
HOSE , Replaced By: A0009872827
56
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
59
FITTING (PARTS KIT),LINE RUPTURE
62
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
65
CONNECTOR RELEASE BEARING LUBRICATION
65
CONNECTOR , Replaced By: A0019904078
68
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
71
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
74
SEAL RING CONNECTOR 11.8X2 MM
74
SEAL RING , Replaced By: A0229973948
77
SCREW CONNECTOR TO TRANSMISSION
83
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
83
PLASTIC PIPE RISING PIPE 4X6 MM
86
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
89
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
92
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
95
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
98
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
101
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
104
SEAL RING
107
CONNECTOR
110
CONNECTOR
113
SEAL RING CONNECTOR 11.8X2 MM
113
SEAL RING , Replaced By: A0229973948
116
SCREW CONNECTOR TO TRANSMISSION
119
SCREW EXHAUST BRAKE SEPARATION POINT
122
BRACKET LINE MOUNTING
125
SCREW COVER PLATE TO COVER PLATE M 6 X 12
125
SCREW , Replaced By: N304017006018
128
LOOM TIE LINE MOUNTING 280 MM
