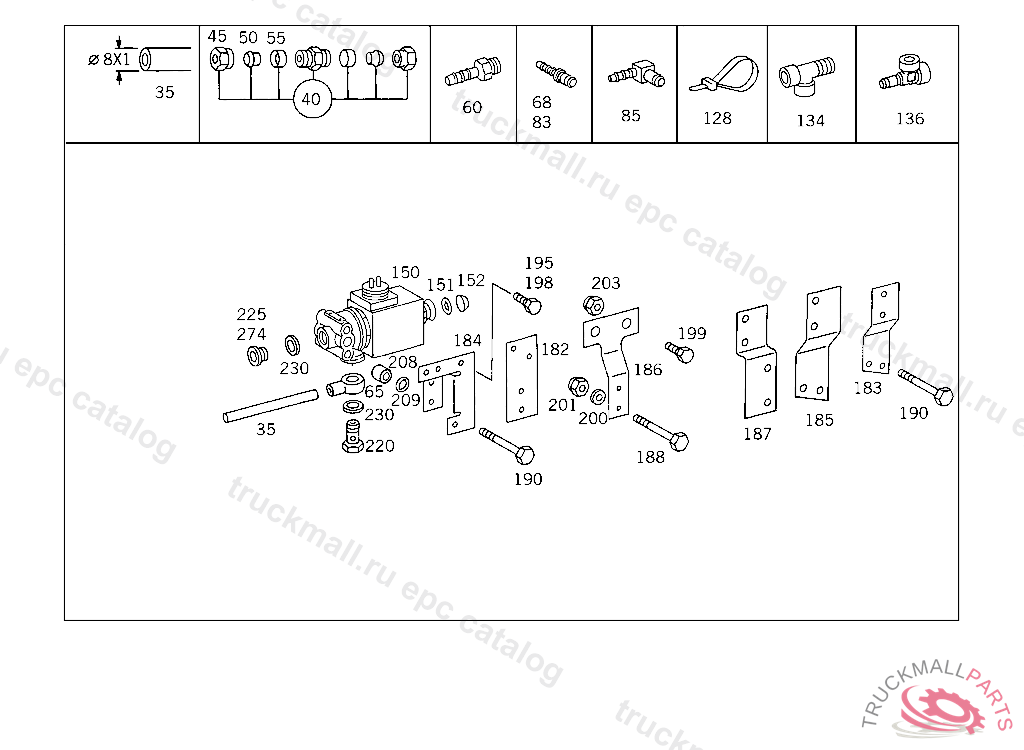

Поз.
Артикул
Описание
35
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
40
FITTING , Replaced By: A0029905971
40
FITTING (PARTS KIT),LINE RUPTURE
45
UNION NUT LINE CONNECTION
50
GLAND LINE CONNECTION
55
SLEEVE LINE CONNECTION
60
FITTING BETWEEN THE LINES
65
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
68
CONNECTOR HOSE WIDTH, 6 MM, TO M22
83
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
85
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
85
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 16
85
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
85
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
85
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
85
ELBOW FITTING , Replaced By: A0049905371
128
LOOM TIE LINE MOUNTING 280 MM
134
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
136
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
136
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
150
VALVE , Replaced By: A0049975736
150
VALVE (3/2-WAY SOLENOID VALVE) EKS
151
SEAL RINGWABCO
151
SEAL RINGBOSCH
151
SEAL RINGBOSCH
152
PROTECTIVE CAPWABCO
182
BRACKET 3/2-WAY VALVE
183
BRACKET 3/2-WAY SOLENOID VALVE
184
BRACKET , Replaced By: A6554313640
184
BRACKET 3/2-WAY VALVE,5 431227
185
BRACKET 3/2-WAY VALVE
186
BRACKET 3/2-WAY SOLENOID VALVE
187
BRACKET 3/2-WAY VALVE
188
SCREW , Replaced By: N304017008043
188
SCREW VALVE TO BRACKET M 8X55
190
SCREW 3/2-WAY VALVE TO BRACKET
190
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
190
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
190
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
190
SCREW , Replaced By: N304014008021
190
SCREW , Replaced By: N304014008009
195
SCREW , Replaced By: N304017008067
195
SCREW BRACKET TO RIGHT SIDE MEMBER,5 434014
198
SCREW , Replaced By: N304014008009
198
SCREW 3/2-WAY VALVE TO BRACKET
199
SCREW 3/2-WAY VALVE TO BRACKET
199
SCREW PIPE CLAMP
199
SCREW BRACKET TO SIDE MEMBER
199
SCREW , Replaced By: N304014008009
199
SCREW , Replaced By: N304017008021
200
NUT , Replaced By: N913004008001
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
WASHER 3/2-WAY VALVE TO BRACKET
201
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
201
NUT , Replaced By: N913004008001
203
NUT , Replaced By: N910113010000
203
NUT STRAP TO BRACKET
208
SPACER TUBE VALVE TO CROSS MEMBER
209
SEAL RING VALVE TO VALVE
220
HOLLOW SCREW HEATING CONNECTION
220
HOLLOW SCREW LINE CONNECTION
225
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
225
SCREW PLUG , Replaced By: N000908012009
230
SEAL RING LINE CONNECTION
274
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
274
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
274
SCREW PLUG , Replaced By: N000908012009
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
NUT , Replaced By: N913004008001
999
NUT EXHAUST BRAKE VALVE, CONNECTION: "20"
