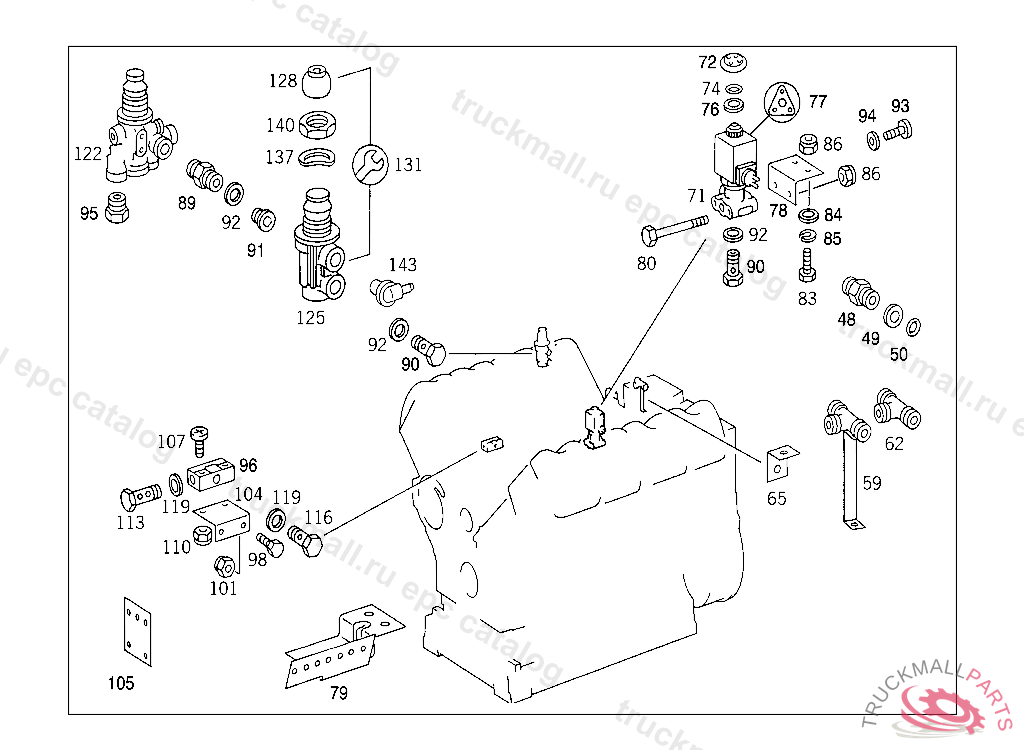

Поз.
Артикул
Описание
62
T-FITTING EXHAUST BRAKE LINE CONNECTION
65
ANGLE LINE MOUNTING
71
VALVE (3/2-WAY SOLENOID VALVE) EKS
71
VALVE , Replaced By: A0049975736
72
PROTECTIVE CAPWABCO
74
SEAL RINGBOSCH
74
SEAL RINGWABCO
76
SEAL RINGBOSCH
77
GASKET KITKNORR
78
BRACKET 3/2-WAY SOLENOID VALVE
79
BRACKET 3/2-WAY SOLENOID VALVE
79
BRACKET 3/2-WAY SOLENOID VALVE
80
SCREW VALVE TO BRACKET
80
SCREW VALVE TO BRACKET, Replaced By: N304014008002
83
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
83
SCREW , Replaced By: N304017008016
84
WASHER EXHAUST MUFFLER TO STRAP
84
WASHER , Replaced By: N000125008443
85
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
86
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
86
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
86
NUT , Replaced By: N913004008001
89
FITTING LINE CONNECTION
89
FITTING LINE CONNECTION, Replaced By: N000000006446
90
HOLLOW SCREW HEATING CONNECTION
91
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
91
SCREW PLUG , Replaced By: N000908012009
92
SEAL RING LINE CONNECTION
93
SCREW TO PLUG THE FREE CONNECTIONS
94
SEAL RINGBOSCH
95
SCREW. UNION SCREW LINE CONNECTION
95
SCREW. UNION SCREW , Replaced By: A0009973734
96
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
96
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
98
SCREW OIL TANK TO BRACKET
101
NUT , Replaced By: N913004006001
101
NUT PUMP TO BRACKET
104
BRACKET LINE MOUNTING
105
BRACKET 3/2-WAY SOLENOID VALVE
107
SCREW TWO-WAY VALVE TO BRACKET
110
NUT TWO-WAY VALVE TO BRACKET
113
HOLLOW SCREW LINE CONNECTION
116
HOLLOW SCREW HEATING CONNECTION
119
SEAL RING LINE CONNECTION
122
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
122
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
125
VALVE EXHAUST BRAKE 3/2-WAY VALVE BOSCH
125
VALVE EXHAUST BRAKE 3/2-WAY VALVE WABCO
128
CUP 3/2-WAY VALVE WABCO
131
REPAIR KIT 3/2-WAY VALVE BOSCH
131
REPAIR KIT 3/2-WAY VALVE WABCO
131
REPAIR KIT 3/2-WAY VALVE BOSCH
137
SPRING WASHER AT CAB FLOOR
140
NUT SUCTION LINE TO OIL PUMP
143
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
143
BREATHER , Replaced By: A3933280065
999
SHIM 3/2-WAY SOLENOID VALVE
