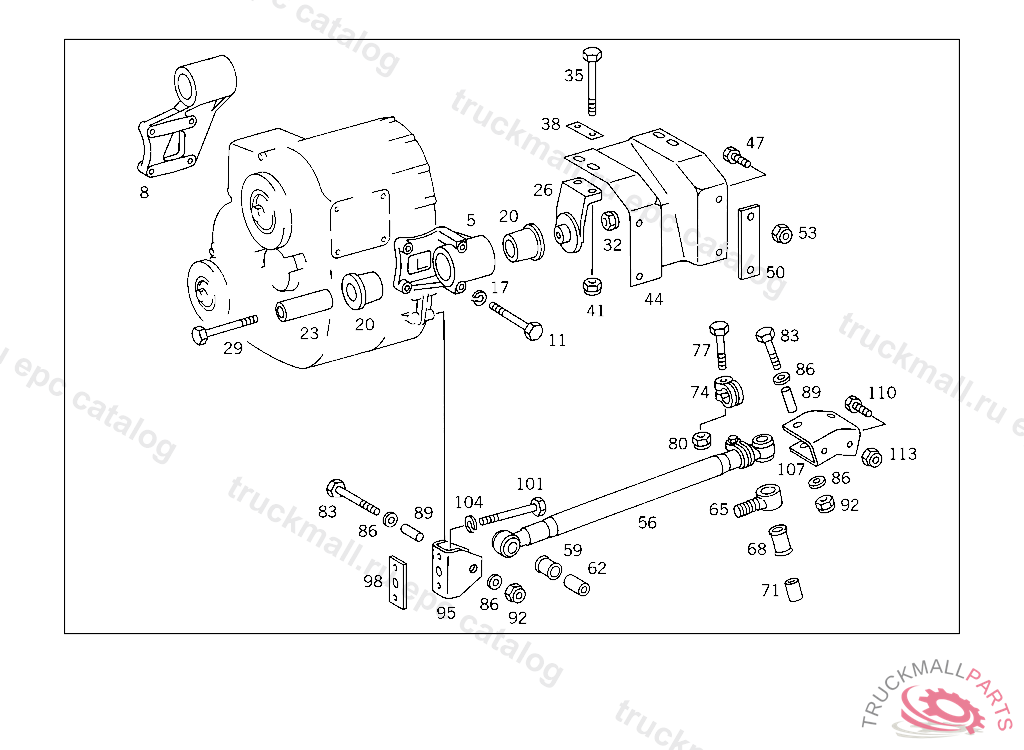

Поз.
Артикул
Описание
5
CONSOLE LEFT
8
CONSOLE RIGHT
11
SCREW BEARING TO TRANSFER CASE M 14X140
11
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
11
SCREW , Replaced By: N308676014014
11
SCREW , Replaced By: N000961014158
17
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
20
BEARING RUBBER MOUNT
23
SPACER TUBE RUBBER MOUNT
26
BEARING TRANSFER CASE CONSOLE
26
BEARING , Replaced By: A6212850403
26
BEARING TRANSFER CASE CONSOLE
26
BEARING , Replaced By: A6212850403
29
SCREW RUBBER MOUNTING TO BEARING M 16X1.5X200
32
NUT CONSOLE TO SUPPORT
32
NUT , Replaced By: N910113016001
35
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
35
SCREW , Replaced By: N308676016007
38
SHIM BEARING BRACKET TO BRACKET
41
NUT CONSOLE TO SUPPORT
41
NUT , Replaced By: N910113016001
44
BRACKET TRANSFER CASE TO FRAME,RIGHT
44
BRACKET TRANSFER CASE TO FRAME,LEFT
47
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
47
SCREW , Replaced By: N308676016013
50
SHIM REINFORCEMENT 173X50X7 MM
53
NUT CONSOLE TO SUPPORT
53
NUT , Replaced By: N910113016001
56
ROD TRANSFER CASE TO FRAME
59
BUSHING
62
BUSHING
83
HEXAGON HEAD BOLT. SCREW PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
83
SCREW , Replaced By: N308765012003
86
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
86
WASHER , Replaced By: N007349013005
89
SPACER TUBE PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
92
NUT SUPPORT TO SIDE MEMBER
95
BRACKET ROD TO TRANSFER CASE
98
SHIM ROD TO TRANSFER CASE
101
SCREW , Replaced By: N308676014013
101
SCREW ROD TO TRANSFER CASE M 14X65
104
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
107
BRACKET ROD TO SIDE MEMBER
107
BRACKET ROD TO SIDE MEMBER
110
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
110
SCREW APPARATUS SUPPORT TO FRAME
110
SCREW , Replaced By: A9429901304
113
NUT STEERING SUPPORT TO FRAME
113
NUT , Replaced By: N910113014000
