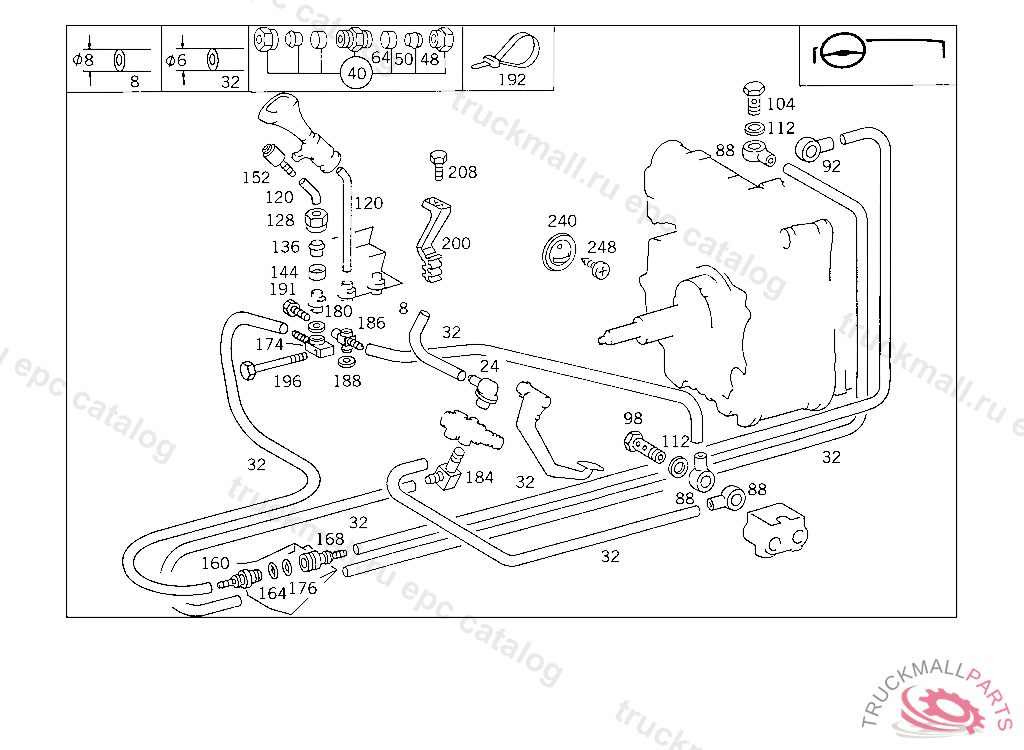

Поз.
Артикул
Описание
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
BREATHER , Replaced By: A3933280065
24
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
32
PLASTIC PIPE RISING PIPE 4X6 MM
32
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
40
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
48
UNION NUT BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
50
GLAND BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
64
SLEEVE LEAK LINE
88
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
92
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
98
HOLLOW SCREW LINE CONNECTION
104
HOLLOW SCREW HEATING CONNECTION
104
HOLLOW SCREW LINE CONNECTION
112
SEAL RING LINE CONNECTION
112
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
112
SEAL RING LINE CONNECTION
120
HOSE FUEL LINE, ORDER BY THE METER
120
PLASTIC TUBE2X4MM, ORDER BY THE METER
128
NUT LINE MOUNTING
128
UNION NUT LINE MOUNTING, Replaced By: N000000006521
136
GLAND LINE MOUNTING
144
SLEEVE LINE MOUNTING
152
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
160
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
164
SEAL RING
168
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
168
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
168
CONNECTOR , Replaced By: A0029905378
174
CONNECTOR
176
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
180
SEAL RING CONNECTOR 11.8X2 MM
180
SEAL RING , Replaced By: A0229973948
184
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
186
CONNECTOR DISTRIBUTOR TO CAB
188
SEAL RING
191
SCREW EXHAUST BRAKE SEPARATION POINT
192
LOOM TIE LINE MOUNTING 280 MM
192
LOOM TIE LINE MOUNTING
196
SCREW CONNECTOR
200
BRACKET LINE MOUNTING
208
SCREW COVER PLATE TO COVER PLATE M 6 X 12
208
SCREW , Replaced By: N304017006018
240
BRACKET LINE MOUNTING
248
SHEET METAL SCREW MODULE TO HOUSING
248
SHEET METAL SCREW , Replaced By: N000000000453
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH
999
GUIDE SIGN P.T.O. CONTROL
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
GUMMED LABEL GEARSHIFT DIAGRAM
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
GUMMED LABEL , Replaced By: A6555840438
999
GUMMED LABEL , Replaced By: A6555840338
999
COVERING SHIFT MECHANISM
999
COVERING SHIFT MECHANISM
999
SHIM SHIFT MECHANISM AND BRACKET TO CAB FLOOR
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SHIM , Replaced By: A6552680184
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
COVER COVERING
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
BRACKET SHIFT MECHANISM
999
SHIFTING ROD REAR
999
BOOT SHIFT LEVER
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
999
HOSE , Replaced By: A0009872827
999
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
999
FITTING (PARTS KIT),LINE RUPTURE
999
SCREW BRACKET TO BEARING BRACKET,K 274033
999
HANDLE TRANSFER CASE ACTUATION
999
HANDLE 3/2-WAY VALVE TO BRACKET
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
SHIFT MECHANISM ELECTROPNEUMATIC POWER SHIFT, 625.101,652-654 5 984064 625.129,655-659 5 957779
