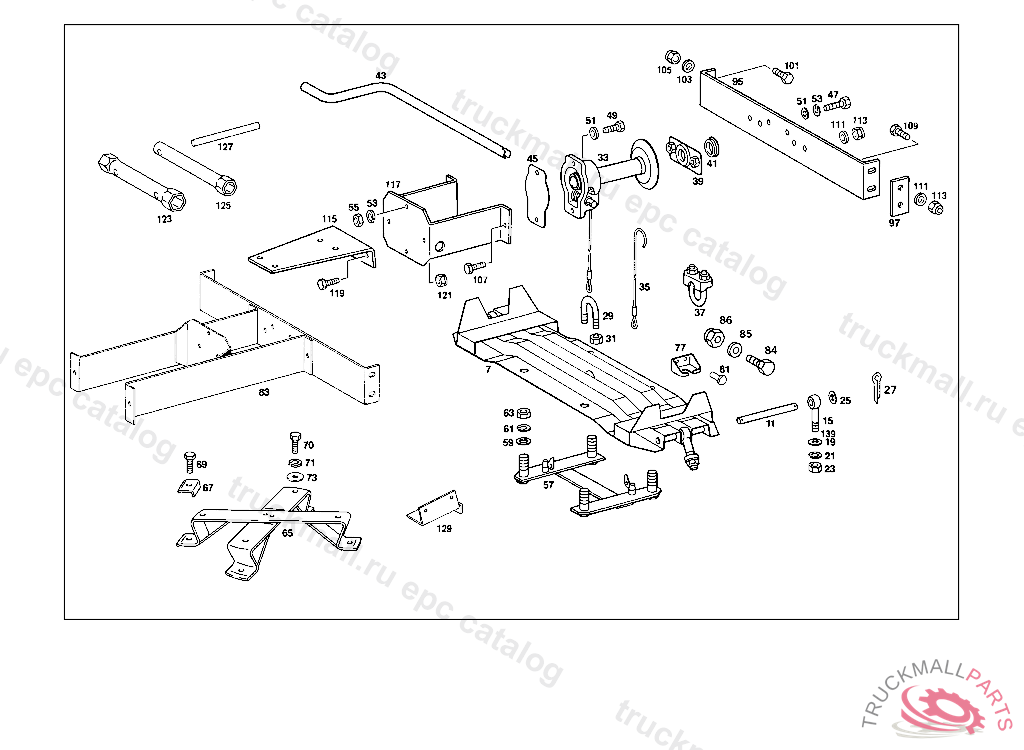

Поз.
Артикул
Описание
7
BRACKET SPARE WHEEL CARRIER
7
BRACKET SPARE WHEEL CARRIER,4 179002-4 369654
7
BRACKET , Replaced By: A3874001639, +002A3634030074, +002N000444016317, +002N000934016012
11
PIN ,4 179002-4 369654
15
EYEBOLT
15
EYEBOLT
19
WASHER TORSION BAR TO BEARING BRACKET
19
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
21
LOCK WASHERROCKINGER TYP 59 G140,59 G150
23
NUT ,4 179002-4 369654
25
WASHER ,4 179002-4 369654
27
COTTER PIN STRAP TO CONSOLE
29
HOOK BOLT
31
NUT
31
NUT
31
NUT , Replaced By: N304035010001
31
NUT , Replaced By: N304032010002
33
SPARE WHEEL HOIST TRILEX WHEEL
35
WIRE CABLE
37
FERRULE
39
MOUNTING SPARE WHEEL HOIST
41
BUSHING
43
CRANK SPARE WHEEL HOIST
43
CRANK , Replaced By: A6504030045
45
RUBBER SEAL SPARE WHEEL HOIST
47
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
47
SCREW , Replaced By: N304017008027
49
SCREW , Replaced By: N304017008021
49
SCREW PIPE CLAMP
51
WASHER EXHAUST MUFFLER TO STRAP
51
WASHER , Replaced By: N000125008443
53
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
55
NUT
57
CLAMPING PIECE SPARE WHEEL TO SUPPORT
59
WASHER BRACKET TO FRAME
59
WASHER , Replaced By: N000125017016
61
LOCK WASHERROCKINGER TYP 59 G140,59 G150
63
NUT ,4 179002-4 369654
65
BRACKET TRILEX WHEEL
65
BRACKET TRILEX WHEEL
65
BRACKET , Replaced By: A3814001339
67
CLAMPING PIECE SPARE WHEEL CARRIER
69
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
69
SCREW , Replaced By: N308676014020
69
SCREW BRACKET TO CAB CONSOLE,K 035197
70
SCREW , Replaced By: N308676014020
70
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
71
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
73
WASHER SPARE WHEEL CARRIER
77
SUPPORT SPARE WHEEL HOIST,4 179002-4 369654
77
SUPPORT SPARE WHEEL HOIST
77
SUPPORT SPARE WHEEL HOIST
77
SUPPORT SPARE WHEEL MOUNTING, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
81
RIVET , Replaced By: N910005012020
81
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
81
RIVET REAR CROSS MEMBER 12X42 MM
83
BRACKET
84
SCREW CONSOLE TO SIDE MEMBER
85
WASHER
86
NUT SUPPORT TO SIDE MEMBER
95
CONNECTING RAIL SPARE WHEEL HOIST
95
CONNECTING RAIL SPARE WHEEL HOIST,4 179001
95
CONNECTING RAIL SPARE WHEEL HOIST
97
BASE BLOCK ,4 179001
101
SCREW
103
WASHER
105
NUT SUPPORT TO SIDE MEMBER
107
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
107
SCREW , Replaced By: N308676012012
109
SCREW CONSOLE TO SIDE MEMBER
111
WASHER
113
NUT SUPPORT TO SIDE MEMBER
115
ANGLE
117
BRACKET SPARE WHEEL HOIST
119
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
119
SCREW , Replaced By: N308676012012
121
NUT SUPPORT TO SIDE MEMBER
123
SOCKET WRENCH SPARE WHEEL MOUNTING
125
SOCKET WRENCH SPARE WHEEL MOUNTING
125
SOCKET WRENCH SPARE WHEEL MOUNTING
127
TURN HANDLE SPARE WHEEL MOUNTING
129
STOP LEFT,4 179001
139
WASHER TORSION BAR TO BEARING BRACKET
139
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
999
ROD , Replaced By: A0005832545
999
ROD , FROM IDENT NO. 4 368902 ALSO INSTALLED ON 361336,365889,366416,368062,368229,368497,368500,368502,368515,368584-368587,368655-368662,368802, 368827,368828,368833,368838,368839,368844,368846,368848,368850-368855,368859,368864,368867,368868, 368870,368876,368879,368880,368887,368889,368892-368894,368896-368898,369294.
999
BRACKET , NO LONGER AVAILABLE
999
TURN HANDLE , Replaced By: A4355810003
999
STOP RIGHT,4 179001
999
SHIM COMPRESSED AIR LINE TO ENGINE
