Поз.
Артикул
Описание
5

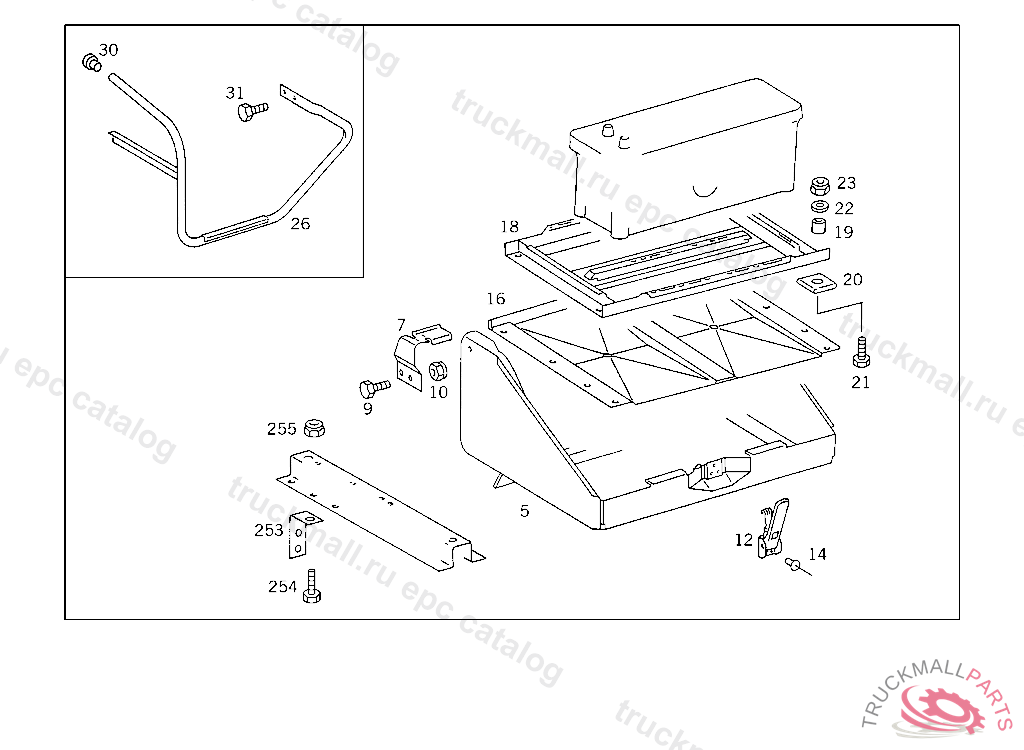

BATTERY SUPPORT APPARATUS
7
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
7
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
9
SCREW LICENSE PLATE TO BRACKET
9
SCREW , Replaced By: N304017006020
10
NUT PUMP TO BRACKET
10
NUT , Replaced By: N913004006001
12
FASTENING CLAMP BATTERY/APPARATUS SUPPORT
12
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
12
LOCKING HANDLE PROTECTIVE PLATE TO APPARATUS SUPPORT
14
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
16
BATTERY CASE
18
RAIL. BATTERY BASE FRAME
19
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
20
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
21
SCREW BRACKET TO FRAME SIDE MEMBER
22
WASHER STRUT TO CROSS MEMBER
22
WASHER , Replaced By: N007349010007
23
NUT , Replaced By: N910113010000
23
NUT STRAP TO BRACKET
26
SUPPORT (STEP BRACKET),AT APPARATUS SUPPORT
30
PLUG ROCKER PANEL
31
SCREW END PIECE TO EXHAUST PIPE M 10X25
253
BRACKET FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
254
SCREW BRACKET TO FRAME SIDE MEMBER
255
NUT END PIECE TO EXHAUST PIPE
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
SUPPORT ROCKER PANEL
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
BRACKET RELAY VALVE
999
BRACKET AIR RESERVOIR TO FRAME
999
BRACKET AIR DEHYDRATOR
999
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
999
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLAMP , Replaced By: A1239950065
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
