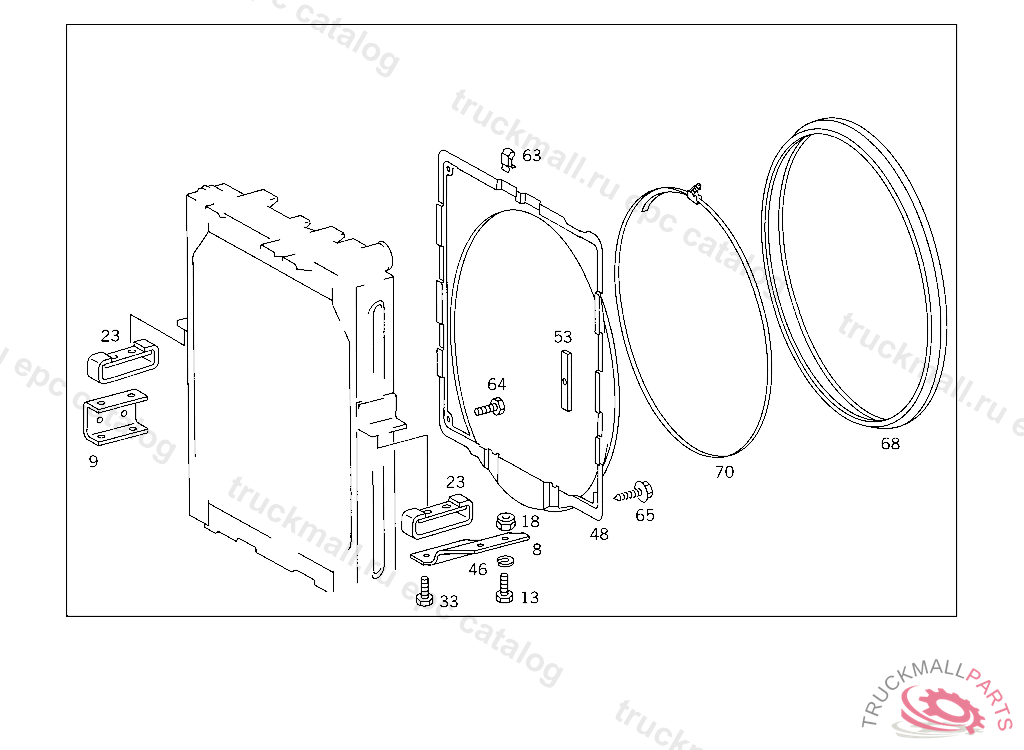

Поз.
Артикул
Описание
8
SUPPORT RADIATOR
8
SUPPORT RADIATOR,LEFT,K 096749
8
SUPPORT RADIATOR,RIGHT,K 096749
8
SUPPORT RADIATOR,LEFT
8
SUPPORT RADIATOR,LEFT,K 096749
8
SUPPORT RADIATOR,RIGHT
8
SUPPORT RADIATOR,LEFT
9
SUPPORT RADIATOR
13
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
13
SCREW CONSOLE TO SIDE MEMBER
18
NUT SUPPORT TO SIDE MEMBER
23
RUBBER MOUNTING RADIATOR
33
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
33
SCREW , Replaced By: N304017010028
46
SPRING WASHER STEERING COLUMN BRACKET TO CAB
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
AIR BAFFLE RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
48
FAN SHROUD RADIATOR
53
DETENT FAN SHROUD TO RADIATOR
63
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
64
SCREW COVER PLATE TO COVER PLATE M 6 X 12
64
SCREW , Replaced By: N304017006018
65
SCREW , Replaced By: A6739900032
65
SCREW DE-AERATION LINE TO RADIATOR
68
BOOT FAN SHROUD TO FAN RING
68
BOOT FAN SHROUD TO FAN RING
68
BOOT FAN SHROUD TO FAN RING
68
BOOT FAN SHROUD TO FAN RING
68
BOOT FAN SHROUD TO FAN RING
68
BOOT , Replaced By: A6505050086
68
BOOT FAN SHROUD TO FAN RING
70
CLAMP FAN SHROUD TO FAN RING
70
CLAMP FAN SHROUD TO FAN RING
999
BRACKET RADIATOR TO FRAME
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRACKET TO SIDE MEMBER
