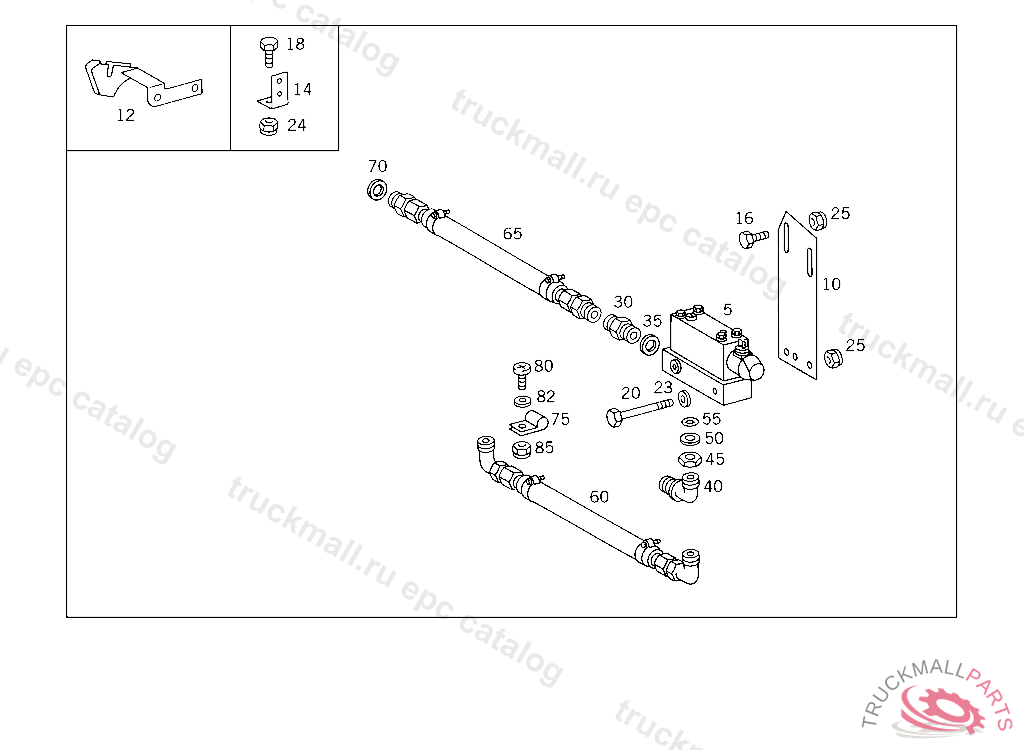

Поз.
Артикул
Описание
5
VALVE (CONTROL VALVE)
5
VALVE , Replaced By: A0004301509
10
BRACKET VALVE TO CROSS MEMBER
10
BRACKET CONTROL VALVE
10
BRACKET VALVE TO CROSS MEMBER
10
BRACKET VALVE TO CROSS MEMBER
12
BRACKET AT RIGHT SIDE MEMBER
14
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
16
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
16
SCREW BRACKET TO FRAME M 12X35
16
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
16
SCREW BRACKET TO CROSS MEMBER
16
SCREW MOUNTING TO CONSOLE M 14X35
16
SCREW LEFT CONSOLE TO FRAME M 12X1.5X50, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
16
SCREW , Replaced By: N308676012013
16
SCREW , Replaced By: N308676012012
16
SCREW , Replaced By: N308676014008
16
HEXAGON HEAD BOLT , Replaced By: A0029902704
18
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
18
SCREW BRACKET TO SIDE MEMBER
20
SCREW VALVE TO BRACKET
20
SCREW CONTROL VALVE TO BRACKET
20
SCREW BRACKET TO AIR SPRING BELLOWS SUPPORT
20
SCREW , Replaced By: N308676012034
23
WASHER
23
WASHER COVER PLATE TO FRAME
23
WASHER SUPPORT TO SIDE MEMBER,4 394527
24
NUT STRAP TO BRACKET
24
NUT , Replaced By: N910113010000
25
NUT , Replaced By: N910113012003
25
NUT , Replaced By: N910113014000
25
NUT STRAP TO SUPPORT
25
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
25
NUT STEERING SUPPORT TO FRAME
30
FITTING LINE CONNECTION
35
SEAL RING LINE CONNECTION
40
ELBOW FITTING LINE CONNECTION
45
NUT CHECK VALVE TO AIR RESERVOIR
50
THRUST RING CHECK VALVE TO AIR RESERVOIR
50
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
55
SEAL RING LINE CONNECTION
60
BRAKE HOSE CONTROL LINE
60
BRAKE HOSE CONTROL LINE
60
BRAKE HOSE CONTROL LINE
60
BRAKE HOSE CONTROL LINE
60
BRAKE HOSE CONTROL LINE
60
BRAKE HOSE CONTROL LINE
60
BRAKE HOSE FROM PRESSURE RATIO VALVE TO RETARDER
60
BRAKE HOSE FROM PRESSURE RATIO VALVE TO RETARDER
60
BRAKE HOSE FROM PRESSURE RATIO VALVE TO RETARDER
60
BRAKE HOSE CONTROL LINE
65
BRAKE HOSE CONTROL LINE
65
BRAKE HOSE CONTROL LINE
65
BRAKE HOSE , Replaced By: A6554202148
65
BRAKE HOSE FROM PRESSURE RATIO VALVE TO RETARDER
65
BRAKE HOSE FROM PRESSURE RATIO VALVE TO RETARDER
65
BRAKE HOSE CONTROL LINE
65
BRAKE HOSE CONTROL LINE
65
BRAKE HOSE CONTROL LINE
65
BRAKE HOSE CONTROL LINE
70
SEAL RING LINE CONNECTION
75
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
75
CLAMP DELIVERY AND SUCTION LINES TO FRAME
80
SCREW OIL TANK TO BRACKET
80
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
82
WASHER , Replaced By: N009021006208
82
WASHER COMPRESSED AIR LINE TO BRACKET
85
NUT PUMP TO BRACKET
85
NUT , Replaced By: N913004006001
85
NUT AT FILTER BRACKET
999
THRUST RING SUCTION LINE TO OIL PUMP
999
NUT BRACKET TO BRACKET
999
SCREW BRACKET TO CROSS MEMBER M 8X45
999
SCREW STRUT TO FRAME, RIGHT
999
SCREW LEAF SPRING TO STRUT M 12X1.5X110
999
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
999
SEAL RING LINE CONNECTION
999
SPACER TUBE REAR AXLE REGULATING SOLENOID VALVE
999
ELBOW FITTING , Replaced By: A0039901671
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
BRACKET
999
BRACKET VALVE TO CROSS MEMBER
999
NUT SUCTION LINE TO OIL PUMP
999
CLAMP HOSE TO BRACKET 25/20,5 206397
