Поз.
Артикул
Описание

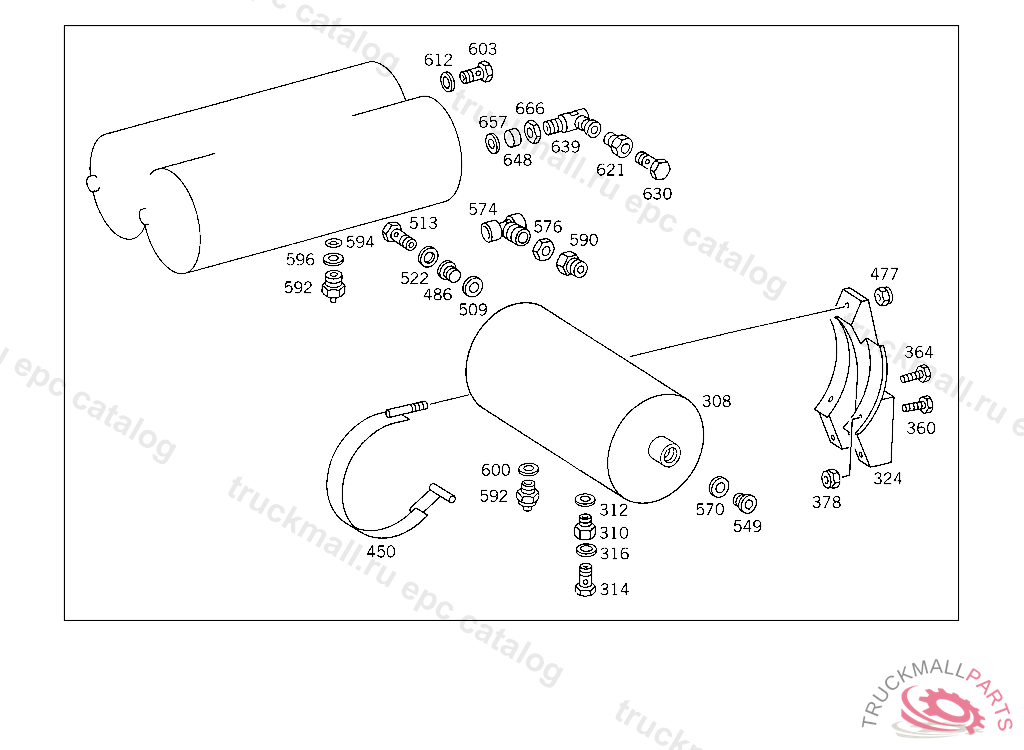

308
RESERVOIR10L,206 MM,8.5 BAR
308
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
308
RESERVOIR6/20 L
310
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
312
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
314
HOLLOW SCREW HEATING CONNECTION
316
SEAL RING LINE CONNECTION
324
BRACKET AIR RESERVOIR,5 765578
324
BRACKET SPRING-LOADED BRAKE AIR RESERVOIR
324
BRACKET SPRING-LOADED BRAKE AIR RESERVOIR
324
BRACKET SPRING-LOADED BRAKE AIR RESERVOIR
324
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
324
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
324
BRACKET AIR RESERVOIR TO CROSS MEMBER
324
BRACKET AIR RESERVOIR TO CROSS MEMBER
324
BRACKET AIR RESERVOIR
324
BRACKET SPRING-LOADED BRAKE AIR RESERVOIR
324
BRACKET AIR RESERVOIR
324
BRACKET AIR RESERVOIR
324
BRACKET AIR RESERVOIR TO CROSS MEMBER
324
BRACKET AIR RESERVOIR TO CROSS MEMBER
324
BRACKET AIR RESERVOIR
360
SCREW BRACKET TO CAB MOUNTING CONSOLE
360
SCREW BRACKET TO FRAME SIDE MEMBER
360
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
360
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
360
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
364
SCREW PIPE CLAMP
364
SCREW , Replaced By: N304017008021
378
NUT STRAP TO BRACKET
378
NUT STRAP TO BRACKET
378
NUT STRAP TO BRACKET
378
NUT STRAP TO BRACKET
378
NUT , Replaced By: N910113010000
450
STRAP PARTICLE FILTER
450
STRAP PARTICLE FILTER
450
STRAP , Replaced By: A6214900242
450
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
450
STRAP PARTICLE FILTER
450
STRAP , Replaced By: A6554900942
450
STRAP AIR RESERVOIR TO BRACKET
450
STRAP AIR RESERVOIR TO BRACKET
477
NUT STRAP TO BRACKET
477
NUT STRAP TO BRACKET
477
NUT , Replaced By: N910113010000
486
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
509
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
513
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
522
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
549
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
549
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
549
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
549
SCREW PLUG , Replaced By: N000908022011
570
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
574
T-FITTING LINE CONNECTION
576
NUT CHECK VALVE TO AIR RESERVOIR
590
SCREW. UNION SCREW LINE CONNECTION
590
SCREW. UNION SCREW LINE CONNECTION
590
SCREW. UNION SCREW LINE CONNECTION
592
THRUST RING CHECK VALVE TO AIR RESERVOIR
592
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
592
VALVE DRAIN, Replaced By: A0004322107
592
VALVE DRAIN, Replaced By: A0004322107
592
VALVE DRAIN, Replaced By: A0004322407
592
VALVE. DRAIN VALVE DRAIN
592
VALVE. DRAIN VALVE DRAIN
592
VALVE DRAIN, Replaced By: A0004322107
592
VALVE DRAIN, Replaced By: A0004322407
592
VALVE DRAIN, Replaced By: A0004322107
592
VALVE. DRAIN VALVE DRAIN
592
VALVE. DRAIN VALVE DRAIN
592
VALVE DRAIN, Replaced By: A0004322107
592
VALVE DRAIN, Replaced By: A0004322407
594
O-RING CHECK VALVE TO AIR RESERVOIR
596
THRUST RING CHECK VALVE TO AIR RESERVOIR
596
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
600
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
600
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
603
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
603
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
612
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
612
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
612
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
621
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
630
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
639
T-FITTING AIR RESERVOIR,CONNECTION: "31"
648
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
657
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
666
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
CONNECTOR BLEEDING
999
RESERVOIR , Replaced By: A0034321401
999
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
999
RESERVOIR , Replaced By: A0034321201
999
PLUGTO 008 420 59 18,KNORR
999
VALVE REPAIR KIT
999
VALVE (PRESSURE LIMIT VALVE)
999
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,5 963779 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KIT COMBINATION CYLINDER KNORR,K 186394
999
BEARING BRACKET WHEEL CYLINDER, IN CASE OF CAST AXLE
999
BRACKET TRAILER CONTROL VALVE
999
GUIDE SIGN
999
LOCK FRONT AXLE RELAY VALVE
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 585845
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 359430
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 592211
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 592211
999
BRACKET PRESSURE RATIO VALVE,5 448631
999
GUIDE SIGN LOAD-DEPENDING BRAKE
