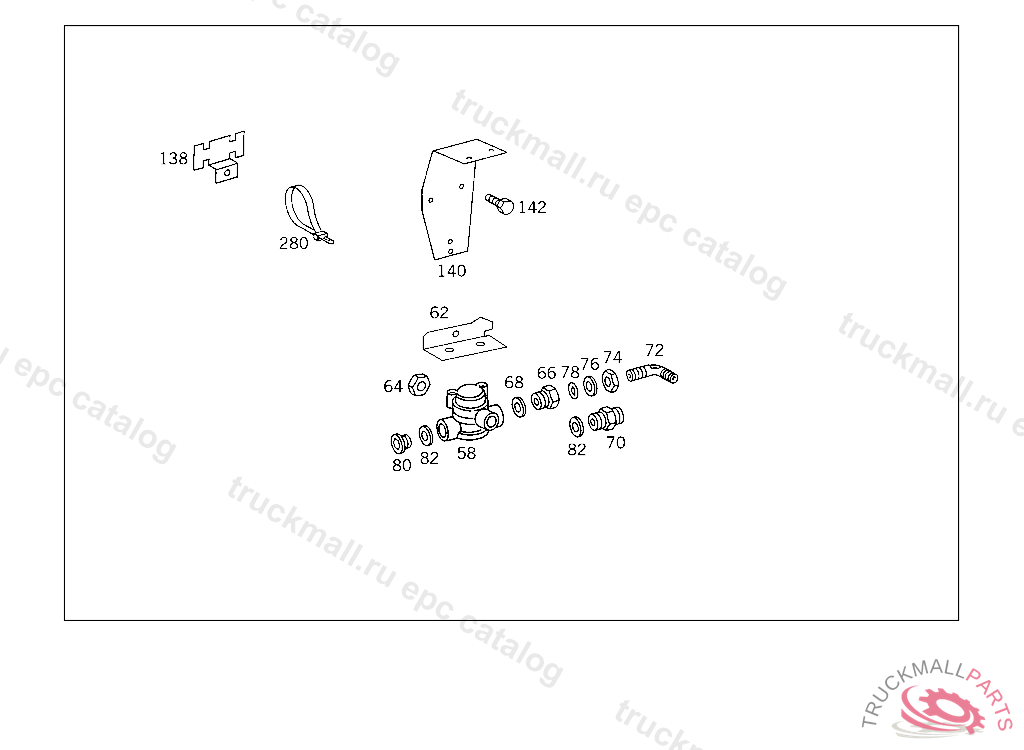

Поз.
Артикул
Описание
58
VALVE (REDUCTION VALVE)
58
VALVE (REDUCTION VALVE),5 359430
58
VALVE (REDUCTION VALVE)
62
BRACKET REDUCTION VALVE
64
NUT BRACKET TO SIDE MEMBER
66
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
68
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
70
FITTING SHUTTLE VALVE
72
ELBOW FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
74
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
76
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
76
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
78
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
80
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
80
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
80
SCREW PLUG , Replaced By: N000908022011
82
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
138
BRACKET BREATHER LINE TO SIDE MEMBER
140
BRACKET DIAPHRAGM CYLINDER
142
SCREW AT SIDE MEMBER,REAR M 8X135
280
LOOM TIE LINE MOUNTING
999
BRAKE HOSEVOSS 232
999
REPAIR KIT REDUCTION VALVE
999
BRAKE HOSE , Replaced By: A0004203048, +002A0009974834
