Поз.
Артикул
Описание

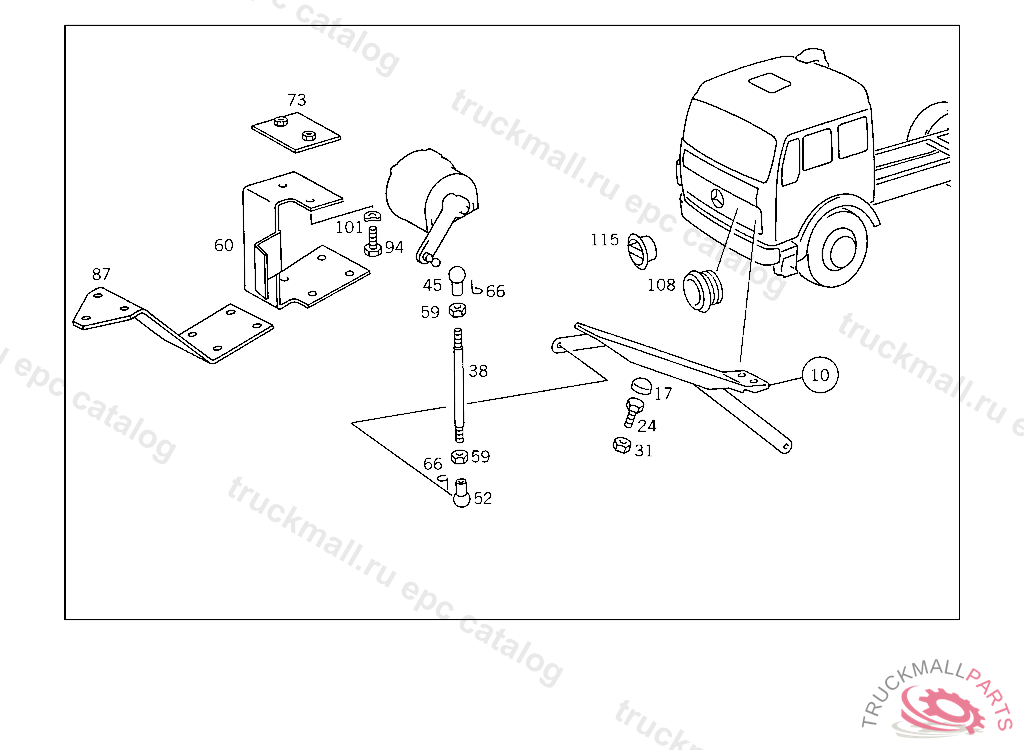

10
ACCELERATOR PEDAL PARTS KIT
17
STOP ACCELERATOR PEDAL
24
SCREW VALVE TO BRACKET M 8X55
24
SCREW , Replaced By: N304017008043
31
NUT
38
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
45
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
52
BALL SOCKET PULL ROD TO LEVER
59
NUT BALL PIVOT TO LEVER
66
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
73
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6243000340
80
BRACKET SENDER UNIT, TO BE ADAPTED DURING ASSEMBLY
80
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6243000340
87
BRACKET SENDER UNIT
94
SCREW PUMP TO BRACKET
94
SCREW , Replaced By: N304017006016
101
SPRING WASHER LICENSE PLATE TO BRACKET
108
PLUG CAB FLOOR SEALING
115
PLUG IN CAB FIRE WALL,USED FOR IDLING CABLE
999
GROMMET WIRE CABLE THRU WINDOW SILL
999
NUT WIRE CABLE TO INSTRUMENT PANEL
999
MANUAL CONTROL IDLING ADJUSTMENT
999
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
999
GUIDE MANUAL CONTROL
999
BRACKET
999
NUT MANUAL CONTROL
999
CLAMPING PIECE FLEXIBLE SHAFT TO BUMPER SUPPORT
999
BALL SOCKET ROD TO BALL PIVOT
999
COVERING INTERMEDIATE BEARING
999
CLAMPING PIECE WIRE CABLE TO FIRE WALL
999
CLAMPING PIECE CABLE PULL TO FIRE WALL
999
ROD LOAD SENSOR CONTROL
999
WIRE CABLE IDLING ADJUSTMENT
999
BEARING BRACKET INTERMEDIATE BEARING,5 324164
999
LEVER INTERMEDIATE BEARING
999
BRACKET WIRE CABLE TO FRAME
999
ACCELERATOR PEDAL , Replaced By: A6583000004
999
KNOB IDLING ADJUSTMENT
999
BEARING BRACKET INTERMEDIATE BEARING
999
WIRE CABLE MANUAL CONTROL
999
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
