Поз.
Артикул
Описание

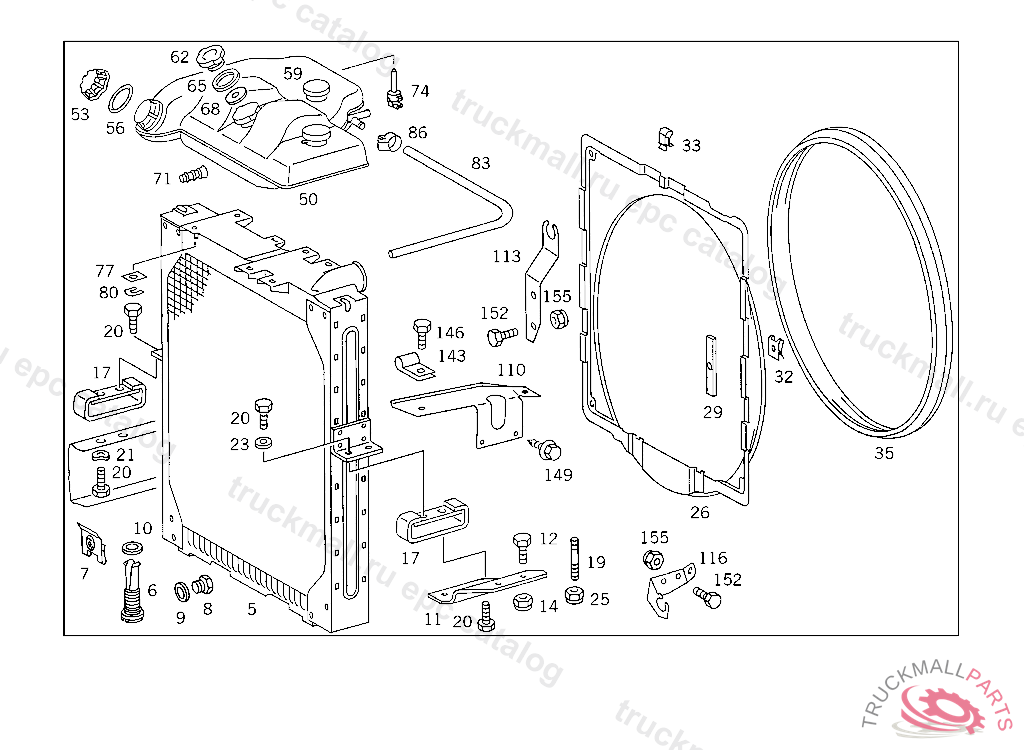

5
RADIATOR WITH SCREW FITTING
5
RADIATOR WITH HOSE FITTING,K 096750
5
RADIATOR WATER BEHR
5
RADIATOR , Replaced By: A6555003003, +001A6559974582, +001A6559974682
6
SCREW PLUG WATER DRAIN
9
SEAL RINGTO 000 553 03 05,000 553 18 05,
11
SUPPORT RADIATOR,LEFT
12
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
14
NUT SUPPORT TO SIDE MEMBER
17
RUBBER MOUNTING RADIATOR
19
STUD BOLT BEARING COVER TO TRANSMISSION CASE, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
20
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
20
SCREW END PIECE TO EXHAUST PIPE M 10X25
20
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
21
SPRING WASHER STEERING COLUMN BRACKET TO CAB
23
WASHER RADIATOR TO RUBBER MOUNTING
23
WASHER , Replaced By: N000125010532
25
NUT STRAP TO BRACKET
25
NUT , Replaced By: N910113010000
26
FAN SHROUD
26
FAN SHROUD RADIATOR
29
DETENT FAN SHROUD TO RADIATOR
32
LOCK PULL TO FASTENER
32
LOCK , Replaced By: N912002008003
33
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
35
BOOT FAN SHROUD TO FAN RING
35
BOOT , Replaced By: A6565050286
35
BOOT FAN SHROUD TO FAN RING
50
TANK COOLING WATER EXPANSION
53
RADIATOR CAP FILLER NECK
53
RADIATOR CAP , Replaced By: A0005016415
56
SEAL RING
59
RADIATOR CAP
62
RADIATOR CAP CENTRAL
62
RADIATOR CAP CENTRAL
65
GASKET O.D., 52 MM
68
GASKET O.D., 37 MM
71
DRAIN PIPE
74
SENDER UNIT COOLING WATER LEVEL INDICATOR
80
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
80
BRACKET. LOCK , Replaced By: A6525040038
83
HOSE FROM EXPANSION TANK TO ENGINE
86
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
86
CLAMP , Replaced By: N916017011001
113
BRACKET OIL DIPSTICK GUIDE TUBE
113
BRACKET OIL DIPSTICK GUIDE TUBE
999
SCREW , Replaced By: N308676012038
