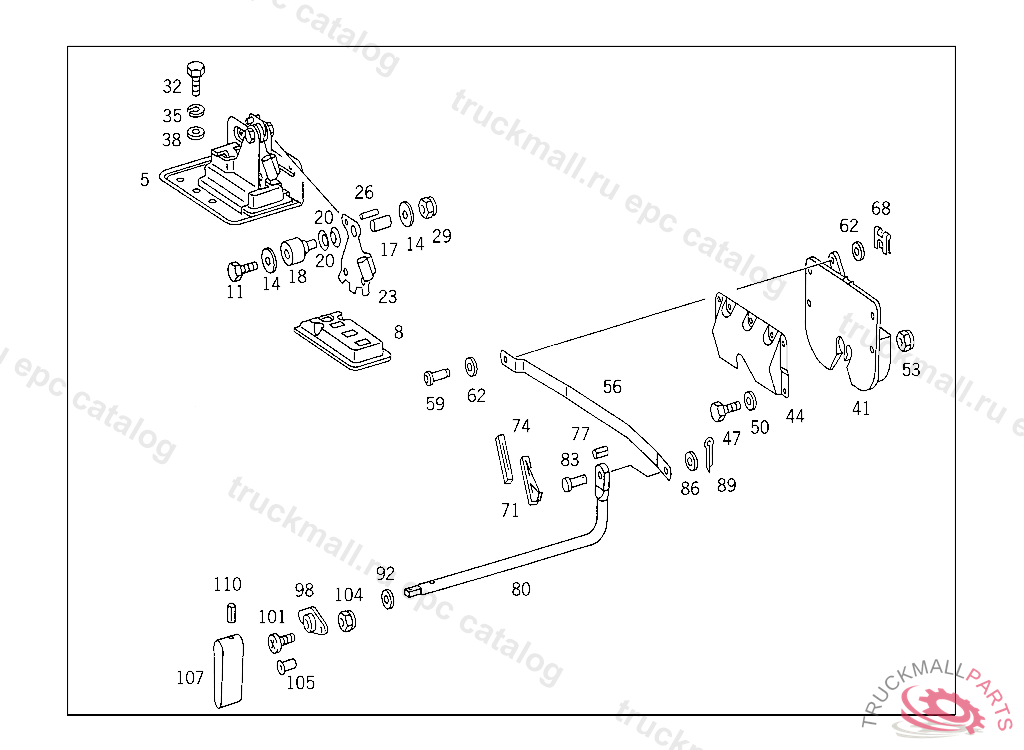

Поз.
Артикул
Описание
5
LOCKING MECHANISM CAB,LEFT, FOR USE WITH SHORT MERCEDES-BENZ CAB
5
LOCKING MECHANISM CAB, RIGHT, FOR USE WITH SHORT MERCEDES-BENZ CAB
8
LATCH CAB LOCKING MECHANISM
11
SCREW EXHAUST PIPE TO BRACKET
14
WASHER , Replaced By: N009021010209
14
WASHER BRACKET TO COVERING
17
SPACER TUBE , Replaced By: A6017910036
17
PIPE BRACKET TO TRANSMISSION
20
DISC SPRING CAB LOCKING MECHANISM
23
TOOTHED SEGMENT CAB LOCKING MECHANISM,LEFT
23
TOOTHED SEGMENT CAB LOCKING MECHANISM,RIGHT
26
CLAMPING SLEEVE CAB LOCKING MECHANISM
29
NUT , Replaced By: N910113010000
29
NUT STRAP TO BRACKET
32
SCREW END PIECE TO EXHAUST PIPE M 10X25
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
38
WASHER , Replaced By: N000125010532
38
WASHER RADIATOR TO RUBBER MOUNTING
41
FASTENER , Replaced By: A0008902389
41
FASTENER (CENTRAL LOCK) CAB LOCKING MECHANISM
44
CONSOLE CENTRAL LOCK
47
SCREW CENTRAL LOCK TO CAB M 10X16
47
SCREW END PIECE TO EXHAUST PIPE M 10X25
50
WASHER , Replaced By: N000125010532
50
WASHER RADIATOR TO RUBBER MOUNTING
53
NUT , Replaced By: N910113010000
53
NUT STRAP TO BRACKET
56
ROD CENTRAL LOCK
59
PIN PULL TO FASTENER
62
WASHER BRACKET TO CROSS MEMBER
68
LOCK , Replaced By: N912002008003
68
LOCK PULL TO FASTENER
71
BRACKET ROD THRU CAB
74
SEAL ROD THRU CAB
77
CLAMPING SLEEVE ROD TO BRACKET
80
LEVER CAB LOCKING MECHANISM
83
PIN LEVER TO ROD
86
WASHER BRACKET TO CROSS MEMBER
89
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
89
COTTER PIN LEVER TO ROD
92
WASHER , Replaced By: N000125015019
92
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
98
BUSHING LEVER TO CAB
101
SCREW BUSHING AND LEVER TO CAB
104
NUT , Replaced By: N913004008001
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
105
RIVET BUSHING AND LEVER TO CAB
107
HANDLE , USED WITH MEDIUM-LENGTH AND LONG MERCEDES-BENZ CABS, Replaced By: A6208910073
107
HANDLE CAB LOCKING MECHANISM
110
CLAMPING SLEEVE , Replaced By: N001481005039
110
CLAMPING SLEEVE LEVER MOUNTING
110
CLAMPING SLEEVE LEVER MOUNTING
999
SPRING WASHER LEVER MOUNTING
