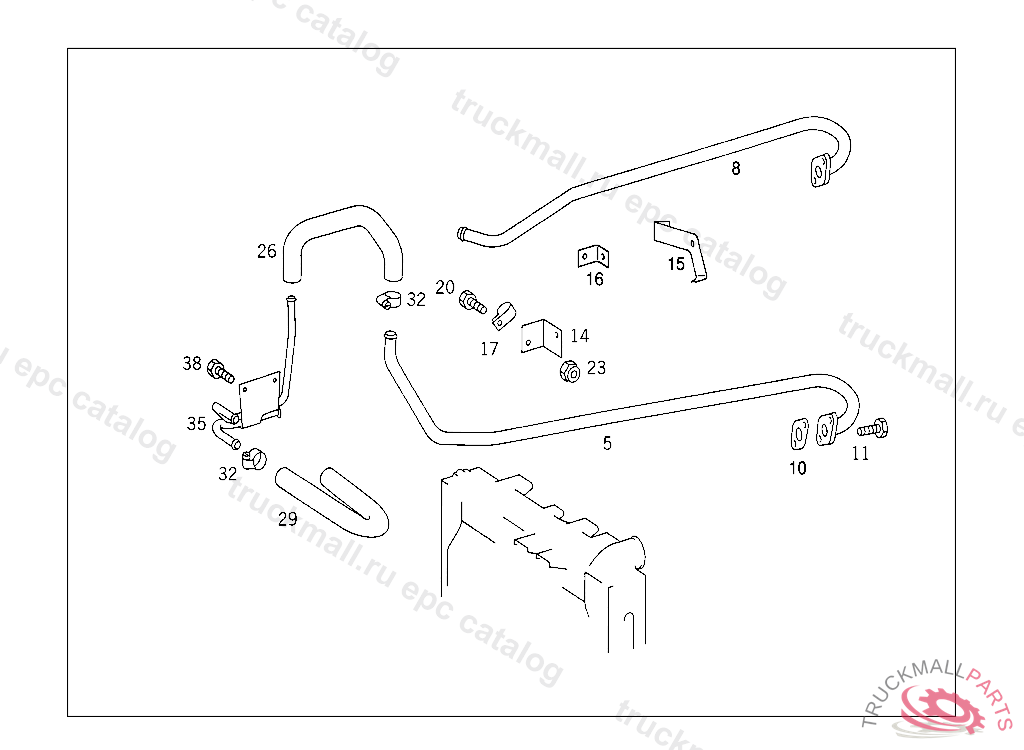

Поз.
Артикул
Описание
5
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
8
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,K 068297
10
GASKET HEATING PIPE TO ENGINE
11
SCREW PIPE CLAMP
11
SCREW , Replaced By: N304017008021
14
BRACKET FEED LINE TO THERMOSTAT
16
ANGLE LINE MOUNTING
17
CLAMP FEED LINE TO THERMOSTAT
20
SCREW COVER PLATE TO BRACKET
20
SCREW LEVER TO ENGINE CONTROL SHAFT
20
SCREW , Replaced By: N910105006023
23
NUT AT FILTER BRACKET
26
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR,K 068297
26
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
29
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
29
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
32
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
32
CLAMP , Replaced By: N000000000667
35
LINE HEATING AND BREATHING,K 096750
35
LINE HEATING AND BREATHING,5 708091K 096749
35
LINE HEATING LINES,K 003669
35
LINE FEED AND RETURN LINES TO HEATING
38
SCREW PUMP TO BRACKET
