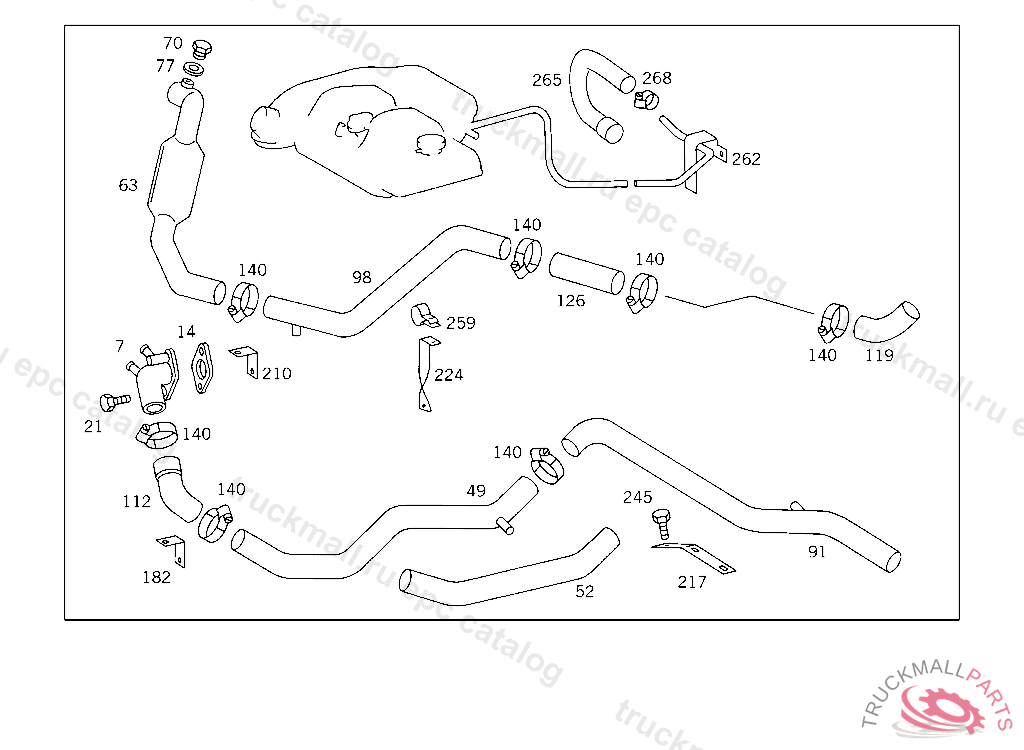

Поз.
Артикул
Описание
7
CONNECTOR FROM ENGINE TO EXPANSION TANK
7
CONNECTOR FEED LINE TO ENGINE
14
GASKET. SEAL DE-AERATION PIPE TO ENGINE
21
SCREW , Replaced By: N304017008043
21
SCREW VALVE TO BRACKET M 8X55
49
LINE FEED LINE TO ENGINE
49
COOLING WATER PIPE FEED
52
COOLING WATER PIPE FEED LINE TO ENGINE
63
LINE RETURN
63
COOLING WATER PIPE RETURN
70
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
70
SCREW PLUGROCKINGER,TYP 59 U150
77
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
91
LINE FEED, FROM HOSE TO HOSE
91
LINE FEED, FROM HOSE TO HOSE
98
COOLING WATER LINE RETURN, FROM HOSE TO HOSE
98
LINE RETURN, FROM HOSE TO HOSE
112
HOSE FEED AND RETURN LINE CONNECTION
119
HOSE , Replaced By: A3355010482
119
HOSE FEED AND RETURN LINE CONNECTION
126
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
140
CLAMP , Replaced By: N000000000672
140
CLAMP HOSE FASTENING 50-70X13 MM
140
CLAMP , Replaced By: N000000000667
140
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
140
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
182
BRACKET FUEL LINES TO TRANSMISSION
182
BRACKET , Replaced By: A6205240340
210
BRACKET , Replaced By: A6205240340
210
BRACKET FUEL LINES TO TRANSMISSION
210
BRACKET FUEL LINES TO TRANSMISSION
217
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
217
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
224
BRACKET FEED LINE TO THERMOSTAT, TO BE ADAPTED DURING ASSEMBLY
224
BRACKET FEED LINE TO THERMOSTAT, TO BE ADAPTED DURING ASSEMBLY
245
SCREW BRACKET TO SUPPORT M 16X16
259
CLAMP , Replaced By: N000000001641
259
CLAMP , Replaced By: A9424310043
259
CLAMP LINE MOUNTING
262
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
265
HOSE DE-AERATION PIPE TO EXPANSION TANK
268
CLAMP , Replaced By: N000000000667
268
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
268
HOSE CLAMP LINE MOUNTING
999
HOSE , FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
999
BRACKET BRACKET TO TRANSMISSION
999
COOLING WATER LINE FEED
999
COVER PLATE EXHAUST GAS TURBOCHARGER,LEFT
999
LINE RETURN
999
LINE FEED LINE TO ENGINE
999
LINE FEED
999
SCREW RETURN
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
OUTLET , Replaced By: A6992000356
999
OUTLET. PIPE SOCKET OUTLET
999
BRACKET , Replaced By: A4354920118
999
BRACKET , Replaced By: A6224760136
999
BASE PLATE , Replaced By: A6455240940
999
INTAKE PIPE SOCKET WATER PUMP
999
GASKET , Replaced By: A4422010080
999
GASKET , Replaced By: A4422010780
999
TUBE. BUSHING CAB FLOOR COVERING
999
LINE RETURN
999
LINE RETURN
999
LINE FEED
999
LINE FEED
