Поз.
Артикул
Описание

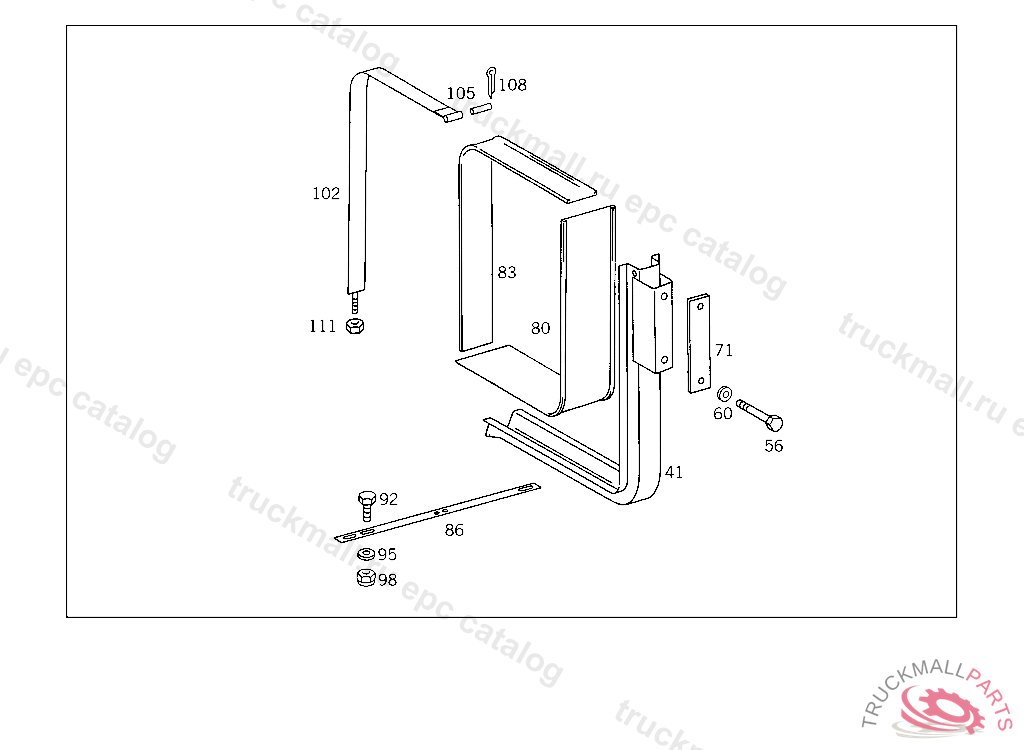

41
SUPPORT FUEL TANK TO FRAME
41
SUPPORT FUEL TANK TO FRAME
41
SUPPORT FUEL TANK,5 150326
41
SUPPORT REAR FUEL TANK
41
SUPPORT REAR FUEL TANK
41
SUPPORT FUEL TANK TO FRAME
41
SUPPORT FUEL TANK TO FRAME
41
SUPPORT FUEL TANK,5 758498
41
SUPPORT FUEL TANK TO FRAME
41
SUPPORT REAR FUEL TANK
41
SUPPORT REAR FUEL TANK
41
SUPPORT REAR FUEL TANK
41
SUPPORT FUEL TANK,5 150326
41
SUPPORT FUEL TANK TO FRAME
41
SUPPORT FUEL TANK TO FRAME
41
SUPPORT , Replaced By: A6584701142
41
SUPPORT FUEL TANK TO FRAME
41
SUPPORT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6214700142
56
SCREW STEERING SUPPORT TO FRAME M 14X55
56
SCREW BRACKET TO SIDE MEMBER
56
SCREW SUPPORT TO SIDE MEMBER M 14X45
56
SCREW , Replaced By: N308676014012
56
SCREW APPARATUS SUPPORT TO FRAME
56
SCREW APPARATUS SUPPORT TO FRAME
56
SCREW , Replaced By: A9429901304
56
SCREW MOUNTING TO CONSOLE M 14X35
56
SCREW MOUNTING TO CONSOLE M 14X35
56
SCREW , Replaced By: N308676014008
56
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
56
SCREW SUPPORT TO SIDE MEMBER M14X40
60
WASHER SPARE WHEEL CARRIER
71
SHIM SUPPORT TO FRAME 240X40X5 MM
71
BASE SUPPORT TO SIDE MEMBER
71
BASE SUPPORT TO SIDE MEMBER
71
SHIM SUPPORT TO SIDE MEMBER
71
SHIM FUEL TANK
71
SHIM SUPPORT TO SIDE MEMBER
80
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
83
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
86
REINFORCEMENT SUPPORT TO CONSOLE,5 497851
86
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
86
REINFORCEMENT , Replaced By: A3614750026
86
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
86
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE,750 MM
86
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE,750 MM
86
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
86
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
92
SCREW CONSOLE TO SIDE MEMBER
92
HEXAGON HEAD BOLT BRACKET TO CROSS MEMBER
92
SCREW EXHAUST PIPE TO BRACKET
95
WASHER
98
NUT SUPPORT TO SIDE MEMBER
98
NUT STRAP TO SUPPORT
102
STRAP FUEL TANK TO SUPPORT
105
PIN STRAP TO SUPPORT
108
COTTER PIN STRAP TO SUPPORT
111
NUT STRAP TO SUPPORT
111
NUT STRAP TO SUPPORT
999
BRACKET STRAP
