Поз.
Артикул
Описание
9

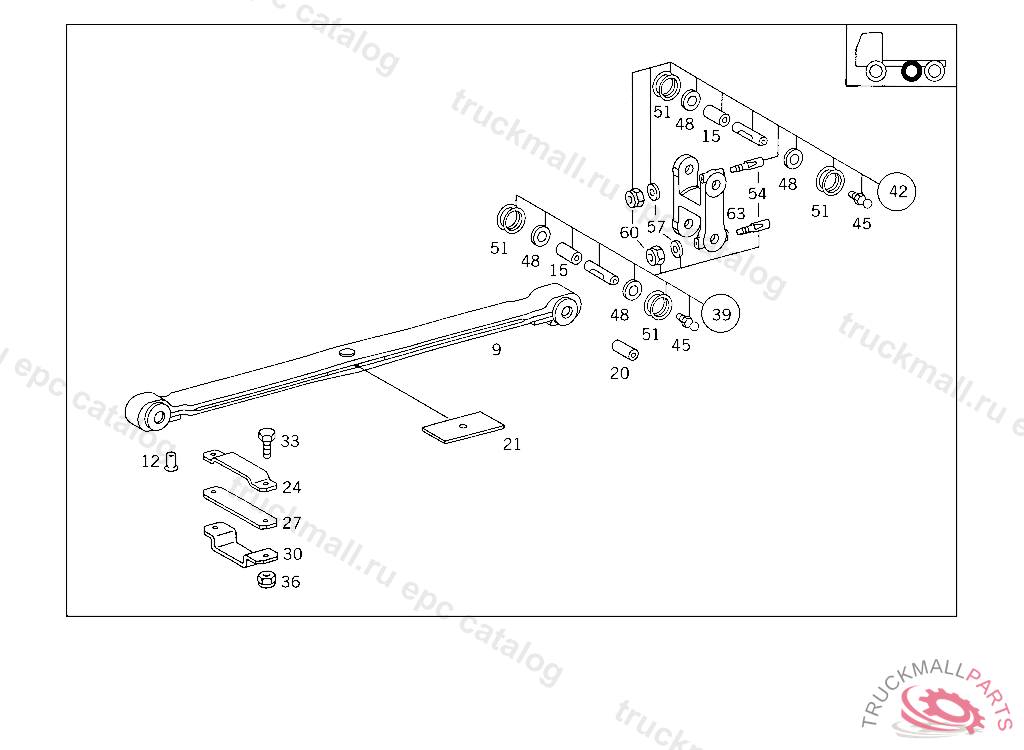

FRONT SPRING (GUIDE SPRING),2 LEAVES,FRONT AXLE II
9
FRONT SPRING (GUIDE SPRING),2 LEAVES,FRONT AXLE II
9
FRONT SPRING STEERED AXLE,2 LEAVES
9
FRONT SPRING , Replaced By: A6573200002
12
RIVET SPRING CLAMP
12
RIVET16X48 MM, TO BE ADAPTED DURING ASSEMBLY
15
BUSHING
15
BUSHING
20
RUBBER MOUNTING
20
RUBBER MOUNTING , Replaced By: A0003223285
21
SHIM BETWEEN THE SPRING LEAVES
24
SPRING CLAMP UPPER PART
24
SPRING CLAMP UPPER PART
27
SPRING CLAMP CENTRAL PART
27
SPRING CLAMP CENTRAL PART
30
SPRING CLAMP LOWER PART
30
SPRING CLAMP LOWER PART
33
SCREW PROPELLER SHAFT BEARING TO CROSS MEMBER
33
SCREW SPRING CLAMP TO SPRING LEAF NO.2
33
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
33
SCREW , Replaced By: A0099900101
33
SCREW , Replaced By: N000933008337
36
NUT STRAP TO BRACKET
36
NUT , Replaced By: N910113010000
36
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
36
NUT , Replaced By: N913004008001
39
SHACKLE PIN (PARTS KIT),FRONT & REAR SPRING EYES
42
SHACKLE PIN (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET
45
GREASE NIPPLE PROTECTIVE TUBE
48
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
48
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
51
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
54
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
54
BOLT FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
57
WASHER RADIATOR TO RUBBER MOUNTING
60
NUT STRAP TO BRACKET
60
NUT , Replaced By: N910113010000
63
BRACKET
999
BUSHING GUIDE SPRING ON BEARING BRACKET,FRONT,K 067589
999
SHACKLE REAR SPRING,K 083474
999
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
999
SCREW GUIDE SPRING ON BEARING BRACKET,FRONT,K 067589
999
NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
