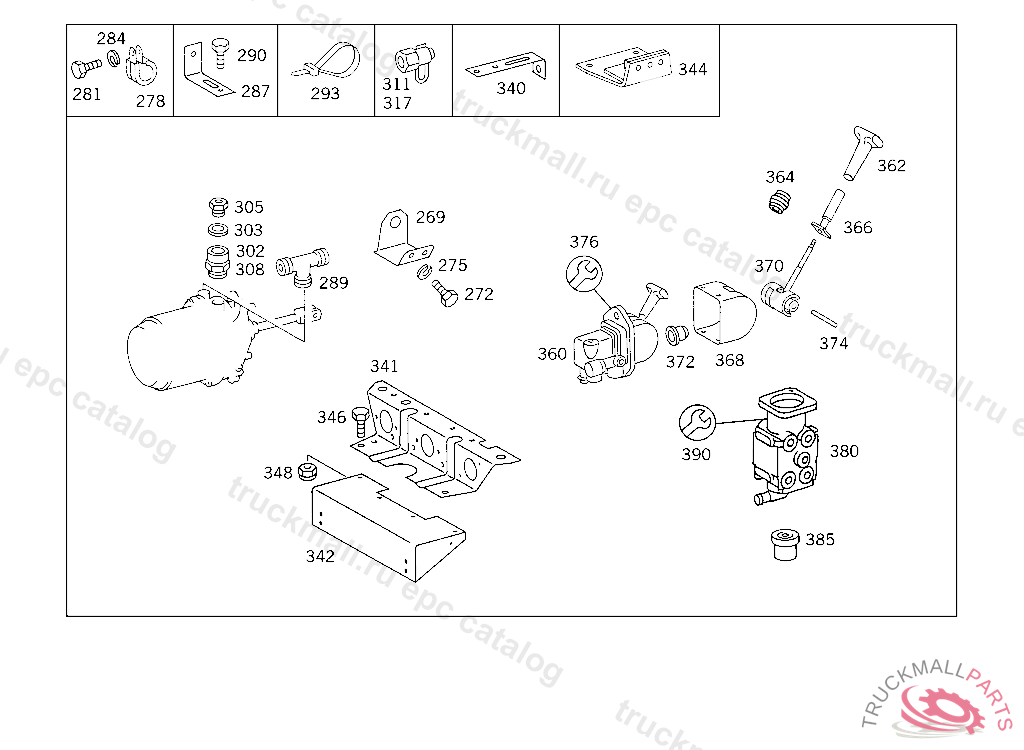

Поз.
Артикул
Описание
269
BRACKET AT BEARING BRACKET
269
BRACKET AT BEARING BRACKET
272
SCREW CENTRAL LOCK TO CAB M 10X16
275
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
278
CLAMP BRAKE HOSE BRACKET
281
SCREW PUMP TO BRACKET
281
SCREW , Replaced By: N304017006016
284
LOCK WASHER FRONT AXLE BRAKE HOSE
287
BRACKET OIL LINE MOUNTING
287
BRACKET , Replaced By: A3464296040
289
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
289
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
290
SCREW PIPE CLAMP
290
SCREW , Replaced By: N304017008021
293
LOOM TIE LINE MOUNTING
302
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
303
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
305
ADAPTER FITTING LINE CONNECTION TO ENGINE
308
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "40",5 509133
311
TEST CONNECTION
311
TEST CONNECTION , Replaced By: A0004312931
311
TEST CONNECTION BULKHEAD FITTING
317
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
317
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
317
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
317
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
317
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
317
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
317
TEST CONNECTION
317
TEST CONNECTION
340
BRACKET LINE MOUNTING
341
SUPPORT WATER SEPARATOR
342
BRACKET BRACKET TO TANK SUPPORT
344
BRACKET TRAILER CONTROL VALVE,K 213085
346
SCREW END PIECE TO EXHAUST PIPE M 10X25
348
NUT STRAP TO BRACKET
348
NUT , Replaced By: N910113010000
360
VALVE PARKING BRAKE WITH TRAILER CONTROL "BOSCH"
360
VALVE PARKING BRAKE LESS TRAILER CONTROL WABCO
362
HANDLETO 002 430 93 81
362
HANDLE"WABCO"
364
BUSHING"WABCO"
366
BUSHINGTO 002 430 93 81
368
PROTECTIVE CAPTO 002 430 93 81
368
PROTECTIVE CAP PARKING BRAKE VALVE WABCO
370
LEVERTO 002 430 93 81
370
LEVER PARKING BRAKE VALVE WABCO
372
SPRING RETAINERTO 002 430 93 81
374
PINTO 002 430 93 81
374
PINTO 002 430 90 81
376
REPAIR KIT HAND BRAKE VALVE "WABCO"
380
BRAKE VALVE (SERVICE BRAKE VALVE) GRAU
380
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
380
BRAKE VALVE (SERVICE BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
380
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
385
VALVEWABCO
390
REPAIR KIT SERVICE BRAKE VALVE WABCO
390
REPAIR KIT , Replaced By: A0004308506
999
BUSHING VALVE TO BRACKET
999
BRACKET RELAY VALVE
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
999
VALVE , Replaced By: A0034314706
