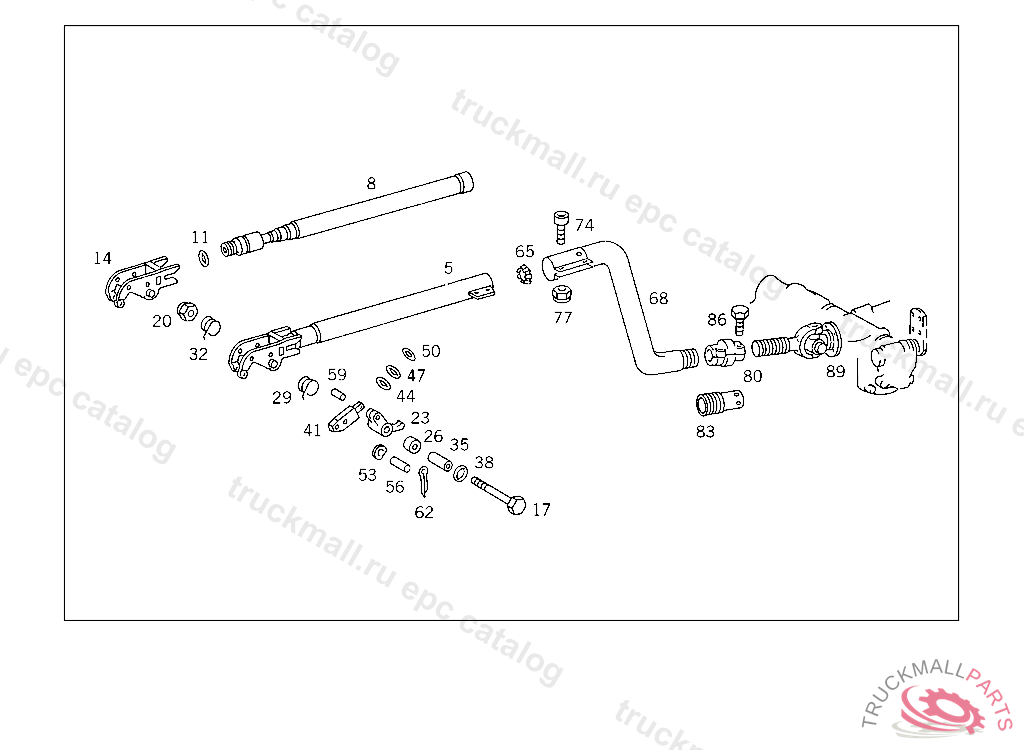

Поз.
Артикул
Описание
5
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
5
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
8
SHIFTING TUBE (TELESCOPIC TUBE)
11
SEAL RING HYDRAULIC RELEASE
14
ROD END HYDRAULIC RELEASE
17
SCREW SHIFTING ROD TO SHIFT LEVER
17
SCREW , Replaced By: N000933010192
20
NUT STRAP TO BRACKET
20
NUT , Replaced By: N910113010000
23
PAWL SHIFTING ROD,5 443048
26
BUSHING PAWL TO ROD END,5 443047
29
SPRING ROD END
32
SPRING ROD END
35
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
38
ROUND CORD RING. SEAL RING ROD END
41
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
41
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
44
SEAL RING PISTON RINGS WABCO
47
SEAL RING SCREW FITTING WABCO
50
SEAL RING OUTSIDE WABCO
53
SPRING WASHER SHIFTING CYLINDER TO YOKE
56
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
59
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
62
COTTER PIN LEVER TO ROD
62
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
65
WASHER BETWEEN THE SHIFTING RODS
68
ROD REAR
68
ROD REAR
68
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6552606147
68
SHIFTING ROD
68
SHIFTING ROD
68
ROD REAR
68
SHIFTING ROD REAR
74
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
77
NUT STRAP TO BRACKET
77
NUT , Replaced By: N910113010000
80
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
83
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
86
SCREW CONNECTOR TO REAR SHIFTING ROD
86
SCREW , Replaced By: N304017010047
89
JOINT SHIFTING ROD TO TRANSMISSION
89
JOINT SHIFTING ROD TO TRANSMISSION
999
BRACKET FRONT SHIFTING ROD TO REAR SHIFTING ROD
999
SHIFTING ROD REAR
