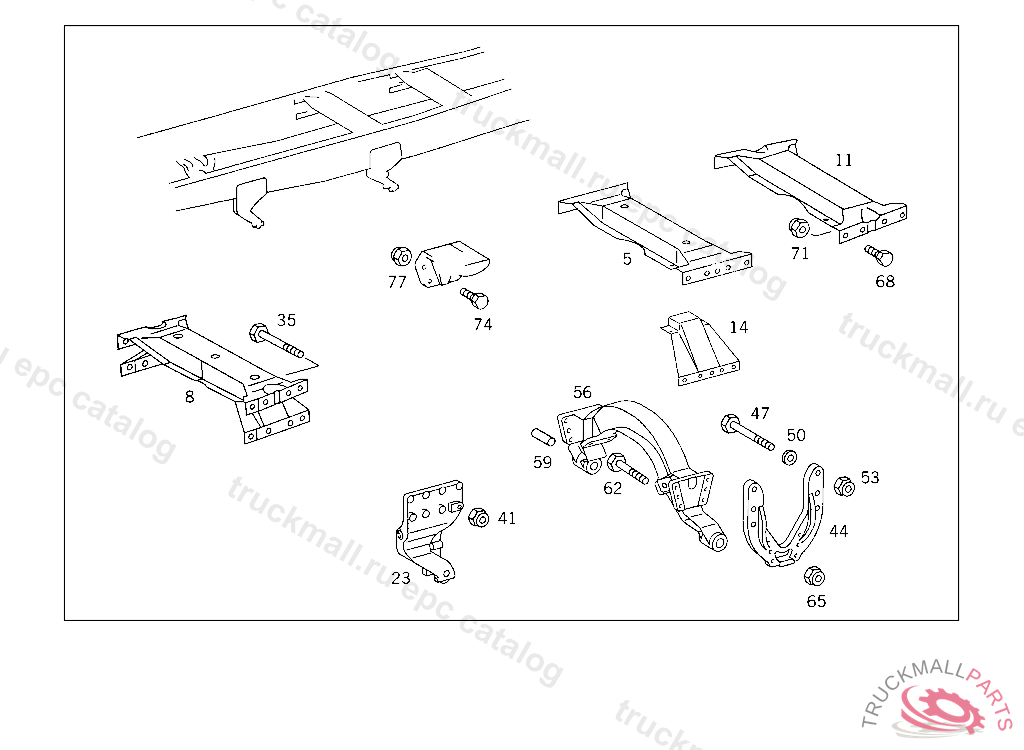

Поз.
Артикул
Описание
5
CROSS MEMBERNO.3A
8
CROSS MEMBERNO.3
8
CROSS MEMBER , Replaced By: A6563101336
8
CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6563100436
8
CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6563100436
8
CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6563100436
11
CROSS MEMBERNO.4A
14
STRUT LEFT AND RIGHT
14
STRUT CROSS MEMBER,RIGHT
14
STRUT CROSS MEMBER,LEFT
23
FRONT SPRING BRACKET STEERED AXLE,RIGHT FRONT
23
FRONT SPRING BRACKET STEERED AXLE,LEFT FRONT
35
SCREW TORSION BAR TO BEARING BRACKET M 16X115,5 903514
35
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
35
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X80
35
SCREW BEARING BRACKET TO FRAME
35
SCREWM 16X18X63X85
35
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
35
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
35
SCREWM 16X18X38X60
41
NUT CONSOLE TO SUPPORT
41
NUT CONSOLE TO SUPPORT
41
NUT , Replaced By: N910113016001
44
PLATE FRONT SPRING REAR BRACKET TO SIDE MEMBER
47
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
47
SCREW STEERING SUPPORT TO FRAME M 14X55
50
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
50
WASHER , Replaced By: N000125015019
53
NUT STEERING SUPPORT TO FRAME
53
NUT , Replaced By: N910113014000
56
SPRING BRACKET STEERED AXLE,REAR
59
BUSHING
62
SCREW STEERING SUPPORT TO FRAME M 14X55
65
NUT STEERING SUPPORT TO FRAME
65
NUT , Replaced By: N910113014000
68
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
68
SCREW , Replaced By: N308676016007
68
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
68
SCREW , Replaced By: N308676016004
71
NUT CONSOLE TO SUPPORT
71
NUT , Replaced By: N910113016001
74
SCREW CONSOLE TO FRAME SIDE MEMBER M16X38
74
SCREW HELPER SPRING BRACKET TO SIDE MEMBER
77
NUT STEERING SUPPORT TO FRAME
77
NUT , Replaced By: N910113014000
999
SHIM FRONT SPRING FRONT BRACKET TO SIDE MEMBER
999
SHIM SPRING BRACKET TO SIDE MEMBER
