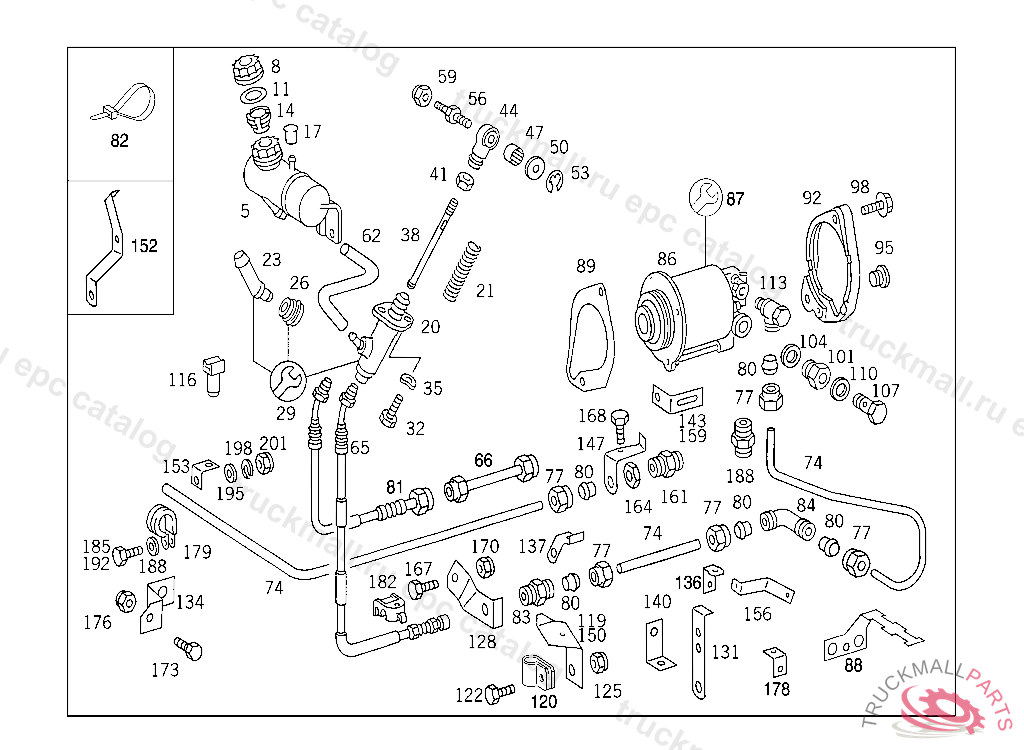

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
MASTER CYLINDER CLUTCH
21
BOOT
23
INTERMEDIATE PIECE
26
PLUG
29
REPAIR KIT CLUTCH MASTER CYLINDER
32
SCREW COVER PLATE TO BRACKET
35
SPRING WASHER LICENSE PLATE TO BRACKET
38
ROD CLUTCH MASTER CYLINDER
41
NUT
41
NUT , Replaced By: N304035008001
44
ARTICULATION PIECE CLUTCH MASTER CYLINDER
44
ARTICULATION PIECE CLUTCH MASTER CYLINDER
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
50
WASHER BRACKET TO FENDER BRACKET
53
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
56
PIN CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
NUT , Replaced By: N913004008001
59
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
65
LINE FROM MASTER CYLINDER TO PARTITION FITTING 1680 MM,K 130132
65
LINE FROM MASTER CYLINDER TO PARTITION FITTING 1630 MM,K 130132
65
LINE CLUTCH LINE
66
LINE FROM MASTER CYLINDER TO HOSE 95 MM,K 130133
74
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
77
UNION NUT LINE CONNECTION
77
UNION NUT
80
GLAND LINE CONNECTION
81
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER 4450 MM,K 130133
81
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER 3550 MM,K 130133
82
LOOM TIE LINE MOUNTING
83
FITTING (PARTS KIT),LINE RUPTURE
86
CLUTCH BOOSTERKNORR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
86
CLUTCH BOOSTERWABCO,K 037847 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
86
CLUTCH BOOSTER ,K 037846, Replaced By: A0002951418
87
REPAIR KIT CLUTCH BOOSTER KNORR
87
REPAIR KIT CLUTCH BOOSTER WABCO
89
COVER PLATETO 000 295 02 18 , 000 295 09 18
92
BRACKETWABCO,K 037846
92
BRACKET ,5 4119215 411922K 037846, Replaced By: A3562950240, +001N000908016001, +002N914126010052
95
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
98
SCREW FLANGE TO BELL HOUSING M 10X25,5 962906
98
SCREW CLUTCH BOOSTER TO BELL HOUSING,K 037846
101
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
104
SEAL RING COMPRESSED AIR LINE TO CLUTCH BOOSTER WABCO
107
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
110
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
SEAL RING. SEALING RING , Replaced By: N007603016401
113
FITTING , Replaced By: A0029909768
113
FITTING CLUTCH BOOSTER,CONNECTION: "4"
116
BRACKET LINE TO FRONT PANEL
119
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
120
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
122
SCREW LICENSE PLATE TO BRACKET
122
SCREW , Replaced By: N304017006020
125
NUT , Replaced By: N913004006001
125
NUT PUMP TO BRACKET
131
BRACKET HYDRAULIC LINE TO ENGINE MOUNTING
137
BRACKET BRACKET TO FAN SHROUD BRACKET
140
BRACKET AT BRAKE VALVE
143
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
147
BRACKET BRACKET TO FAN SHROUD BRACKET,K 130132
156
BRACKET FUEL LINES TO TRANSMISSION
156
BRACKET HYDRAULIC LINE TO BELL HOUSING,5 547965K 130132
159
BRACKET FUEL LINE TO BELL HOUSING
161
FITTING HYDRAULIC LINE TO BRACKET,K 130132
164
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
167
SCREW END PIECE TO EXHAUST PIPE M 10X25
168
SCREW REDUCTION VALVE TO BRACKET
168
SCREW , Replaced By: A0079900801
170
NUT STRAP TO BRACKET
173
SCREW COVER PLATE TO BRACKET
176
NUT PUMP TO BRACKET
176
NUT , Replaced By: N913004006001
178
ANGLE LINE MOUNTING
179
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
179
CLAMP ,K 147121, Replaced By: N000000000319
185
SCREW , Replaced By: N304017006016
185
SCREW PUMP TO BRACKET
185
SCREW COVER PLATE TO BRACKET
198
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
201
NUT PUMP TO BRACKET
201
NUT , Replaced By: N913004006001
999
BRACKET LINE TO ENGINE FRONT CROSS MEMBER
999
CLAMP LINE MOUNTING
