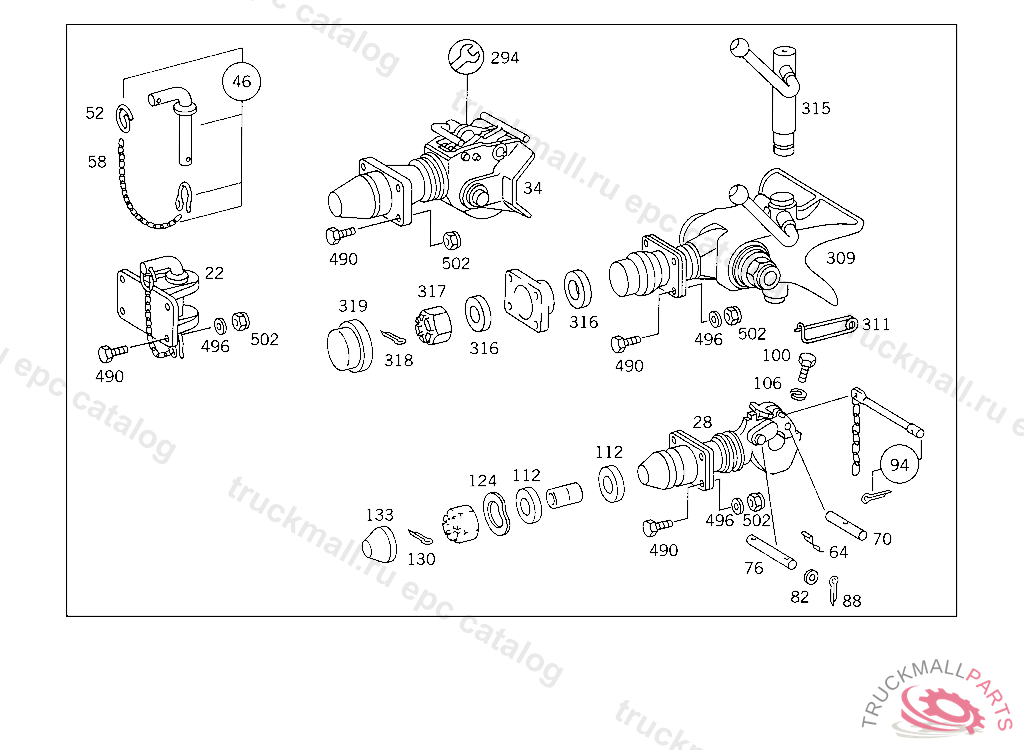

Поз.
Артикул
Описание
22
TRAILER COUPLING (TOW BAR COUPLING) ROCKINGER,TYP SK 7
22
TRAILER COUPLING (TOW BAR COUPLING) RINGFEDER TYP 6441 G140
22
TRAILER COUPLING (TOW BAR COUPLING) ROCKINGER,TYP SK 7
28
TRAILER COUPLING (HOOK TYPE COUPLING) ROCKINGER TYP 283 G150
28
TRAILER COUPLING (HOOK TYPE COUPLING) ROCKINGER TYP 283 G140
28
TRAILER COUPLING (HOOK TYPE COUPLING) RINGFEDER TYP 65 G150
34
TRAILER COUPLING (HOOK TYPE COUPLING) TYP RU K4D
34
TRAILER COUPLING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 476495, Replaced By: A0023156799
34
TRAILER COUPLING (HOOK TYPE COUPLING) RINGFEDER TYP RU K5D
46
PINROCKINGER,TYP SK 7
46
COUPLING PIN
52
RINGROCKINGER,TYP SK 7
52
RINGRINGFEDER
58
CHAINROCKINGER,TYP SK 7
64
SPRING
70
PIN20X71 MM
76
PIN25X125 MM
82
WASHER
88
COTTER PIN
94
PIN PARTS KIT
100
SCREW , Replaced By: N304017008040
100
SCREW BRACKET TO SIDE MEMBER
106
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
112
BUFFER
124
SPRING WASHER
124
SPRING WASHER
130
COTTER PIN
133
CAP
294
REPAIR KIT TRAILER COUPLING
309
TRAILER COUPLING (MOUTH-TYPE COUPLING) ROCKINGER TYP 372 G 250
311
LOCKING SPRING
315
COUPLING PIN
316
BUFFERROCKINGER TYP 260 G140
317
NUT
318
COTTER PIN
319
CAPROCKINGER,TYP 260 G140
490
SCREW , Replaced By: N308676016004
490
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
490
SCREW , Replaced By: N308676020005
490
SCREW , Replaced By: N308676020014
490
SCREW , Replaced By: N308676020025
490
HEXAGON HEAD BOLT TRAILER COUPLING TO REAR CROSS MEMBER M20X1.5X80
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
490
SCREW , Replaced By: N308676016005
490
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 20X80
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 20X75
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
490
SCREW
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
490
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734465
490
SCREW BRACKET TO CROSS MEMBER
490
HEXAGON HEAD BOLT TRAILER COUPLING TO REAR CROSS MEMBER M20X1.5X80
490
SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734465
496
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
496
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
496
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
496
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
496
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
502
NUT , Replaced By: N910113016001
502
NUT CONSOLE TO SUPPORT
502
NUT , Replaced By: N913004020003
502
NUT CROSS MEMBER TO REINFORCEMENT
502
NUT TRAILER COUPLING TO REAR CROSS MEMBER
502
NUT TRAILER COUPLING TO REAR CROSS MEMBER
502
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
999
COTTER PIN
999
HOSEROCKINGER TYP 59 G140,59 G150, DISCONTINUED,PART IS NO LONGER REQUIRED
999
SEAL RINGROCKINGER TYP 59 G140,59 G150, DISCONTINUED,PART IS NO LONGER REQUIRED
999
ELBOW FITTING
999
ELBOW FITTINGROCKINGER TYP 59 G140,59 G150, DISCONTINUED,PART IS NO LONGER REQUIRED
999
ELBOW FITTINGROCKINGER TYP 59 G140,59 G150, DISCONTINUED,PART IS NO LONGER REQUIRED
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 332725
999
HANDLEROCKINGER TYP 401 G135,TYP 250 G135
999
REPAIR KIT , Replaced By: A0003100114
999
REPAIR KIT
999
REPAIR KIT
999
REPAIR KIT
999
REPAIR KIT , Replaced By: A0003100014
999
COUPLING PIN (TOW BAR COUPLING) ROCKINGER, TO 003 315 42 99
999
BUSHING BOTTOM
999
BUSHING TOP
999
BUSHING
999
COUPLING PIN
999
BUSHING
999
LEVER
999
COUPLING PIN
999
LEVER SPECIAL BODIES RINGFEDER TYP 86 G/150
999
BUFFER
999
NUT
999
LOCK
999
LOCK
999
CAP
999
LOCKRINGFEDER
999
BUSHING ,5 000676
999
NUT
999
BUSHINGROCKINGER TYP 250 G140,260 G140
999
FOLLOWER
999
SPRINGROCKINGER,TYP 260 G150,260 G140
999
SPRINGROCKINGER TYP 260 G140
999
LEVERROCKINGER TYP 411 G230,5 271195
999
GASKET
999
BASE PLATE
999
U-BOLT
999
AUTOMATIC UNIT PARTS KIT ROCKINGER TYP 260
999
AUTOMATIC UNIT , Replaced By: A0003100114
