Поз.
Артикул
Описание

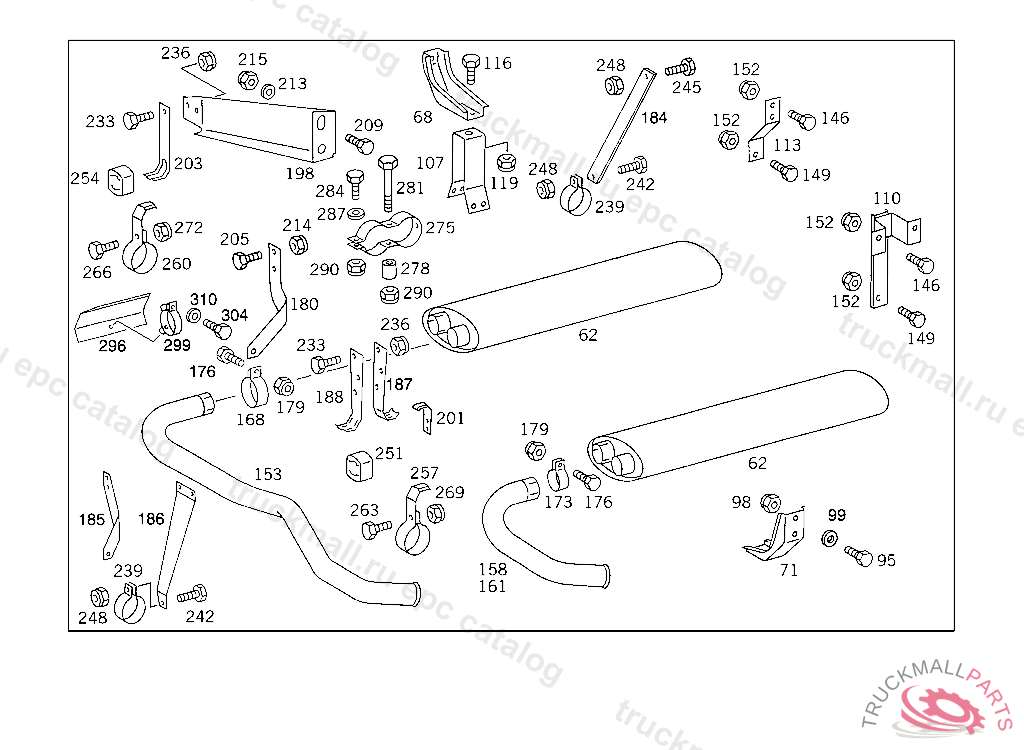

62
EXHAUST MUFFLER
71
CONSOLE REAR EXHAUST MUFFLER 200 MM
71
CONSOLE REAR EXHAUST MUFFLER 200 MM
71
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
95
SCREW BRACKET TO FRAME M 12X35
98
NUT SUPPORT TO SIDE MEMBER
116
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
119
NUT STRAP TO BRACKET
119
NUT , Replaced By: N910113010000
161
END PIECE ,5 765949
161
END PIECE (TAIL PIPE)
168
CLAMP EXHAUST PIPE TO BRACKET
176
SCREW BRACKET TO SIDE MEMBER
179
NUT STRAP TO BRACKET
186
BRACKET TAIL PIPE
186
BRACKET TAIL PIPE
186
BRACKET TAIL PIPE TO APPARATUS SUPPORT,5 953233K 027550
296
PROTECTIVE PLATE , NOT USED
299
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
304
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
304
SCREW , Replaced By: N304017008039
310
WASHER EXHAUST MUFFLER TO STRAP
310
WASHER , Replaced By: N000125008443
999
STRAP EXHAUST MUFFLER TO BRACKET
