Поз.
Артикул
Описание

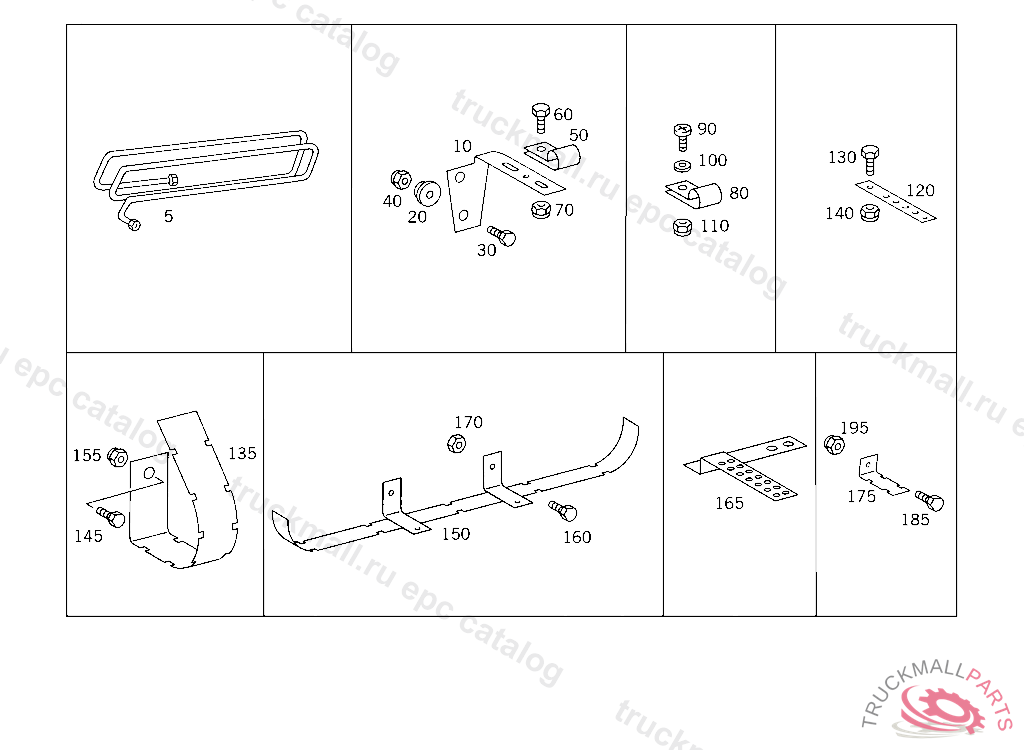

5
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
5
LINE WITH SPIRAL
5
LINE APPARATUS SUPPORT
10
BRACKET COMPRESSED AIR LINE MOUNTING
20
BUSHING COMPRESSED AIR LINE MOUNTING,K 062171
30
SCREW BRACKET TO SIDE MEMBER
40
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
40
NUT , Replaced By: N913023010002
40
NUT STRAP TO BRACKET
40
NUT , Replaced By: N910113010000
50
CLAMP DELIVERY AND SUCTION LINES TO STEERING
50
CLAMP , Replaced By: A6739950001
50
CLAMP , Replaced By: A6739950001
60
SCREW COVER PLATE TO COVER PLATE M 6 X 12
60
HEXAGON HEAD BOLT END COVER TO HOUSING M6X12
70
NUT PUMP TO BRACKET
70
NUT , Replaced By: N913004006001
80
CLAMP DELIVERY AND SUCTION LINES TO STEERING
80
CLAMP , Replaced By: A6739950001
80
CLAMP , Replaced By: A6739950001
90
SCREW CLAMP MOUNTING M 6X16
90
SCREW , Replaced By: N000000001146
100
WASHER COMPRESSED AIR LINE TO BRACKET
100
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
110
NUT PUMP TO BRACKET
110
NUT , Replaced By: N913004006001
120
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
120
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
130
SCREW BRACKET TO FRAME SIDE MEMBER
135
SHAFT COMPRESSED AIR PIPING TO SIDE MEMBER
135
BRACKET AT SIDE MEMBER,K 213085
140
NUT STRAP TO SUPPORT,5 149419
145
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
145
SCREW , Replaced By: N308676012012
150
BRACKET COMPRESSED AIR PIPING
155
NUT SUPPORT TO SIDE MEMBER
160
SCREW PIPE CLAMP
160
SCREW , Replaced By: N304017008021
165
BRACKET CONNECTOR
170
NUT
175
BRACKET COMPRESSED AIR LINE MOUNTING
175
BRACKET COMPRESSED AIR LINE MOUNTING
185
SCREW BRACKET ON LOAD SENSOR
195
NUT PUMP TO BRACKET
195
NUT , Replaced By: N913004006001
999
NUT BRACKET TO BRACKET
999
NUT EXHAUST PIPE TO SIDE MEMBER
999
NUT BRACKET TO BEARING BRACKET
999
SCREW , Replaced By: N910105010009
999
SCREW , Replaced By: N910105010001
999
SCREW , Replaced By: N910105010011
999
LOOM TIE LINE MOUNTING
999
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SCREW BRACKET TO CONSOLE M 12X25
999
SCREW MOUNTING TO CONSOLE
999
PRESSURE REGULATORWABCO
999
RESERVOIR10L,206 MM,8.5 BAR
999
RESERVOIR20L,246 MM,12.5 BAR
999
RESERVOIR20L,276 MM,8.5 BAR
999
RESERVOIR30L,246 MM,12.5 BAR
999
VALVE (CHECK VALVE),EPS & CLUTCH BOOSTER
999
FITTING LINE CONNECTION
999
SHIM SUPPORT TO SIDE MEMBER
999
STRAP , Replaced By: A6214900242
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
BRACKET AIR DEHYDRATOR,5 433280
999
BRACKET COMPRESSED AIR PIPING
999
BRACKET AIR RESERVOIR TO SUPPORT,5 339169
999
BRACKET FUEL LINE TO BELL HOUSING
999
BRACKET PRESSURE REGULATOR
999
BRACKET AIR RESERVOIR
999
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE
999
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
999
BRACKET AIR DEHYDRATOR
999
BRACKET APPARATUS SUPPORT TO FRAME
999
BRACKET DEHYDRATOR AIR-RESERVOIR
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
999
CONSOLE AIR RESERVOIR TO REAR CROSS MEMBER
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
999
SCREW CLAMP TO BRACKET M 6X14
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
999
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
999
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
999
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N910113014001
