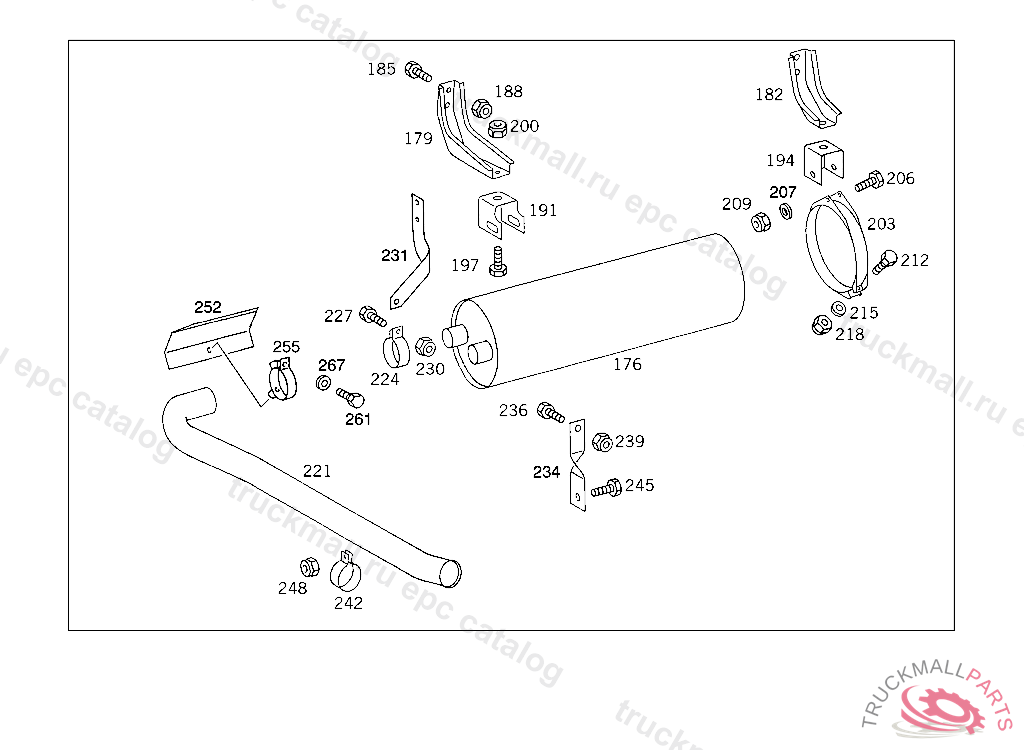

Поз.
Артикул
Описание
176
EXHAUST MUFFLER
176
EXHAUST MUFFLER
182
CONSOLE REAR EXHAUST MUFFLER 200 MM
182
CONSOLE REAR EXHAUST MUFFLER 200 MM
185
SCREW BRACKET TO FRAME M 12X35
188
NUT SUPPORT TO SIDE MEMBER
191
BRACKET REAR EXHAUST PIPES
194
BRACKET EXHAUST MUFFLER
194
BRACKET EXHAUST MUFFLER SUSPENSION
197
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
200
NUT , Replaced By: N910113010000
200
NUT STRAP TO BRACKET
203
STRAP , Replaced By: A6204900042, +001N000933008165
203
STRAP EXHAUST MUFFLER TO BRACKET
206
SCREW STRAP TO BRACKET
207
WASHER , Replaced By: N000125010532
207
WASHER RADIATOR TO RUBBER MOUNTING
209
NUT , Replaced By: N910113010000
209
NUT STRAP TO BRACKET
212
SCREW BRACKET TO CROSS MEMBER M 8X45
212
SCREW REAR EXHAUST PIPE TO MUFFLER
215
WASHER , Replaced By: N000125008443
215
WASHER EXHAUST MUFFLER TO STRAP
218
NUT BRACKET TO BRACKET
221
END PIECE (TAIL PIPE)
221
END PIECE ,5 765949
224
CLAMP EXHAUST PIPE TO BRACKET
227
SCREW , Replaced By: N304017010002
227
SCREW BRACKET TO SIDE MEMBER
230
NUT , Replaced By: N910113010000
230
NUT STRAP TO BRACKET
234
BRACKET TAIL PIPE TO APPARATUS SUPPORT,5 953233K 027550
234
BRACKET TAIL PIPE
242
CLAMP EXHAUST PIPE
245
SCREW END PIECE TO EXHAUST PIPE M 10X25
248
NUT , Replaced By: N910113010000
248
NUT STRAP TO BRACKET
252
PROTECTIVE PLATE , NOT USED
255
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
261
SCREW , Replaced By: N304017008039
261
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
267
WASHER , Replaced By: N000125008443
267
WASHER EXHAUST MUFFLER TO STRAP
999
STRAP EXHAUST MUFFLER TO BRACKET
