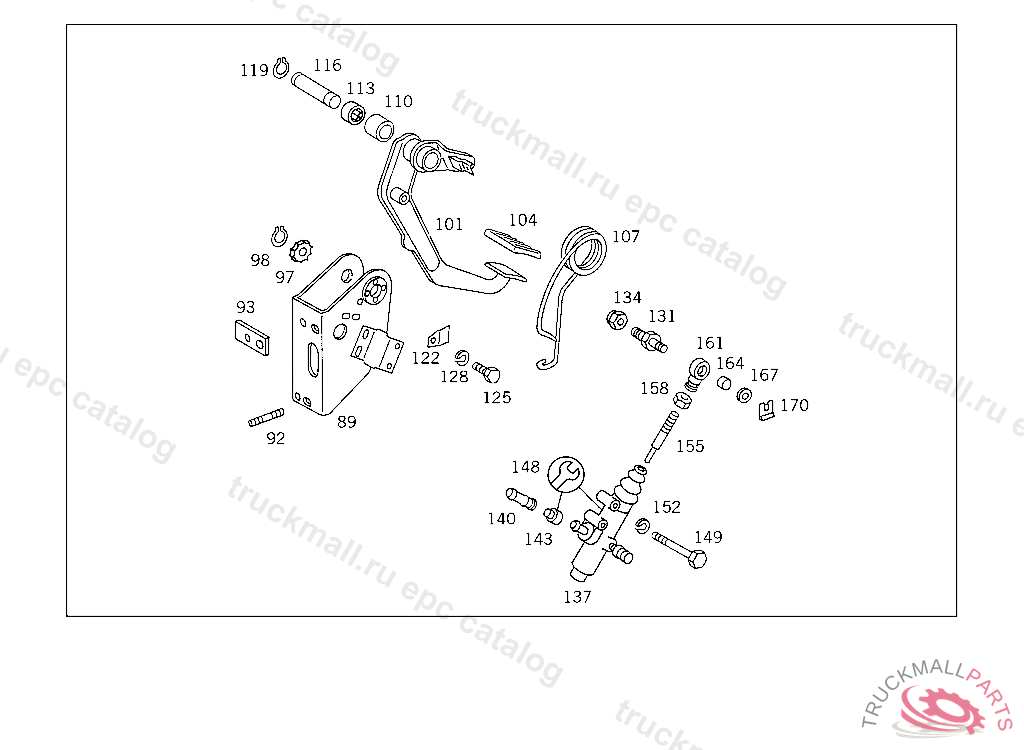

Поз.
Артикул
Описание
89
BEARING BRACKET CLUTCH PEDAL
92
STUD BOLT BRACKET TO CROSS MEMBER
93
EYE BEARING BRACKET TO CAB
97
STOP PEDAL ASSEMBLY
98
LOCK RING , Replaced By: A0079942041
98
LOCK STOP TO BEARING BRACKET
101
PEDAL CLUTCH PEDAL,4 915383
101
PEDAL CLUTCH,5 238025
101
PEDAL CLUTCH
104
PAD BRAKE
107
SPRING CLUTCH PEDAL RESET
110
SPACER TUBE CLUTCH PEDAL
113
NEEDLE BEARING
116
PIVOT PIN PEDAL TO BEARING BRACKET
119
LOCK RING
122
LOCK PEDAL TO BEARING BRACKET
125
SCREW , Replaced By: N304017006016
125
SCREW PUMP TO BRACKET
128
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
131
PIN CLUTCH PEDAL,5 238024
131
PIN CLUTCH PEDAL,5 238025
134
NUT SWITCH TO FLOOR PLATE
137
MASTER CYLINDER CLUTCH,5 374582
137
MASTER CYLINDER CLUTCH,LESS DE-AERATION
140
INTERMEDIATE PIECE CLUTCH MASTER CYLINDER
143
PLUG
148
REPAIR KIT TO MASTER CYLINDER HAVING SYNTHETIC PISTON, I.D., 20.6 MM, TO 001 295 71 06,5 374582
149
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X60
152
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
155
ROD MASTER CYLINDER
158
NUT , Replaced By: N304035008001
158
NUT
161
ARTICULATION PIECE CLUTCH MASTER CYLINDER
161
ARTICULATION PIECE CLUTCH MASTER CYLINDER
164
NEEDLE BEARING JOINT TO PIN
164
NEEDLE BEARING JOINT TO PIN
164
NEEDLE BEARING JOINT TO PIN
164
NEEDLE BEARING JOINT TO PIN
167
WASHER BRACKET TO CROSS MEMBER
170
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
