Поз.
Артикул
Описание

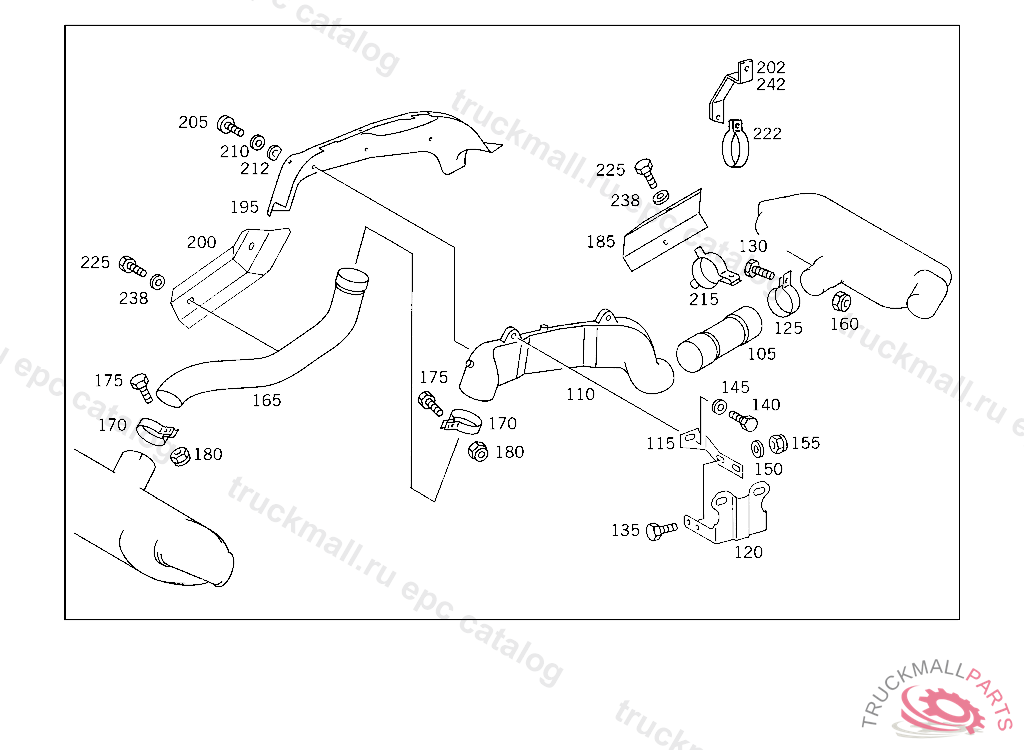

105
FRONT EXHAUST PIPE EXHAUST MUFFLER TO EXHAUST PIPE
105
FRONT EXHAUST PIPE EXHAUST MUFFLER TO EXHAUST PIPE
105
FRONT EXHAUST PIPE EXHAUST MUFFLER TO EXHAUST PIPE
110
PIPE ELBOW EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
110
PIPE ELBOW EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
115
BRACKET EXHAUST PIPE,5 564360
115
BRACKET EXHAUST PIPE,5 564360
115
BRACKET EXHAUST PIPE,5 564360
115
BRACKET EXHAUST PIPE,5 564360
120
BRACKET EXHAUST PIPE,5 564360
120
BRACKET EXHAUST PIPE,5 564360
125
CLAMP , Replaced By: A6554920340
125
CLAMP EXHAUST PIPE
125
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
125
CLAMP EXHAUST PIPE
130
SCREW REAR EXHAUST PIPE TO MUFFLER
130
SCREW , Replaced By: N910105010011
130
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
130
SCREW REAR EXHAUST PIPE TO MUFFLER
135
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
135
SCREW , Replaced By: N304014008009
135
SCREW 3/2-WAY VALVE TO BRACKET
135
SCREW CLAMP TO BRACKET AND TO PIPE
135
SCREW CLAMP TO BRACKET AND TO PIPE
140
SCREW EXHAUST PIPE TO BRACKET,5 564360
140
SCREW EXHAUST PIPE TO BRACKET,5 564360
140
SCREW END PIECE TO EXHAUST PIPE M 10X25
145
WASHER , Replaced By: N000125010532
145
WASHER RADIATOR TO RUBBER MOUNTING
145
WASHER RADIATOR TO RUBBER MOUNTING
150
WASHER , Replaced By: N000125008443
150
WASHER EXHAUST MUFFLER TO STRAP
150
WASHER EXHAUST MUFFLER TO STRAP
155
NUT , Replaced By: N913004008001
155
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
155
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
160
NUT , Replaced By: N910113010000
160
NUT STRAP TO BRACKET
160
NUT , Replaced By: N913023010002
160
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
160
NUT STRAP TO BRACKET
165
EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER,5 564360
165
FRONT EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER,5 564360
165
FRONT EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER,5 564360
165
FRONT EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER,5 564360
165
EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER,5 564360
165
EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER,5 564360
170
CLAMP EXHAUST PIPE TO BRACKET
170
CLAMP , Replaced By: A6554920340
170
CLAMP EXHAUST PIPE
170
CLAMP EXHAUST PIPE TO BRACKET
170
CLAMP EXHAUST PIPE TO BRACKET
175
SCREW REAR EXHAUST PIPE TO MUFFLER
175
SCREW BRACKET TO SIDE MEMBER
175
SCREW , Replaced By: N304017010002
180
NUT STRAP TO BRACKET
180
NUT STRAP TO BRACKET
180
NUT , Replaced By: N910113010000
185
PROTECTIVE PLATE , NOT USED
185
PROTECTIVE PLATE EXHAUST PIPE
185
PROTECTIVE PLATE , NOT USED
185
PROTECTIVE PLATE EXHAUST PIPE
195
PROTECTIVE PLATE EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
195
PROTECTIVE PLATE EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
200
PROTECTIVE PLATE EXHAUST PIPE,5 564361
200
PROTECTIVE PLATE EXHAUST PIPE,5 564361
200
PROTECTIVE PLATE EXHAUST PIPE,5 564361
202
BRACKET SHOCK ABSORBER,5 523852
202
BRACKET SHOCK ABSORBER,5 523852
205
SCREW PROTECTIVE PLATE TO BRACKET
205
SCREW PROTECTIVE PLATE TO BRACKET
205
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
205
SCREW , Replaced By: N910105010011
205
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
205
SCREW PROTECTIVE PLATE TO BRACKET
210
WASHER EXHAUST MUFFLER TO STRAP
210
WASHER EXHAUST MUFFLER TO STRAP
210
WASHER , Replaced By: N000125008443
212
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
212
SPRING WASHER , Replaced By: N000137008212
215
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
215
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
215
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
222
CLAMP EXHAUST PIPE
225
SCREW REAR EXHAUST PIPE TO MUFFLER
225
SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
225
SCREW REAR EXHAUST PIPE TO MUFFLER
225
SCREW REAR EXHAUST PIPE TO MUFFLER
225
SCREW REAR EXHAUST PIPE TO MUFFLER
225
SCREW REAR EXHAUST PIPE TO MUFFLER
225
SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
238
WASHER EXHAUST MUFFLER TO STRAP
238
WASHER EXHAUST MUFFLER TO STRAP
238
WASHER , Replaced By: N000125008443
242
BRACKET SHOCK ABSORBER,5 523852
999
SCREW BRACKET MOUNTING M 8X110
999
SCREW EXHAUST PIPE TO SIDE MEMBER
