Mercedes N000966006062 - Болт

2038 AS,LAS,2044 AS/LAS 656.332

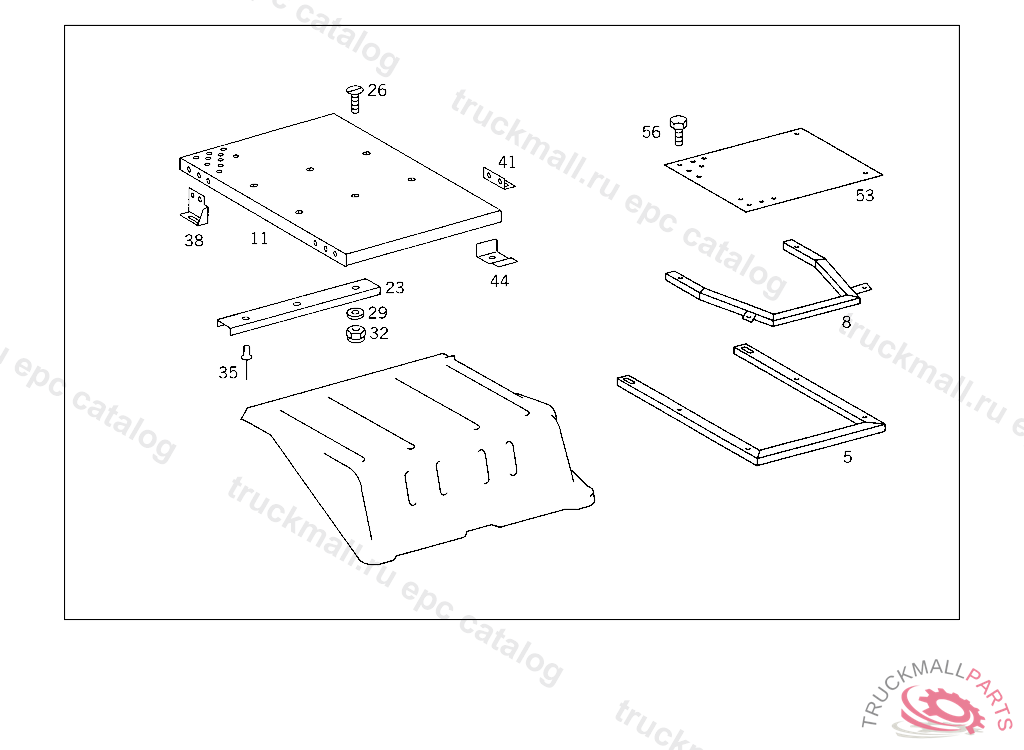

52 SHEET METAL,AIR INTAKE - 001 CHASSIS SHEET METAL, OIL FILLING, AIR INTAKE IL.1

Поз.
Артикул
Описание
5
A6995200531
RUNNING BOARD BEHIND CAB
8
A6995200731
RUNNING BOARD BEHIND CAB
11
A6455200131
RUNNING BOARD
23
A6455230120
REINFORCEMENT
26
N000963010017
SCREW REINFORCEMENT TO ROCKER PANEL
29
N000433010510
WASHER VIBRATION ABSORBER TO BRACKET
29
N000433010505
WASHER , Replaced By: N000433010510
32
N910113010000
NUT STRAP TO BRACKET
32
N913004010008
NUT , Replaced By: N910113010000
35
N910001004108
RIVET
38
A6455230219
MOUNTING ANGLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 556633, Replaced By: A6455230319
41
A6455230119
MOUNTING ANGLE
41
A6455231019
MOUNTING ANGLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 556633, Replaced By: A6455230319
44
A6205230019
MOUNTING ANGLE ROCKER PANEL TO FRAME
53
A6995200931
RUNNING BOARD STEP TO APPARATUS SUPPORT
53
A6995230301
RUNNING BOARD STEP TO APPARATUS SUPPORT
53
A6995230301
RUNNING BOARD STEP TO APPARATUS SUPPORT
56
N304017008021
SCREW PIPE CLAMP
56
N304017008021
SCREW PIPE CLAMP
56
N000933008147
SCREW , Replaced By: N304017008021
999
A6455200331
RUNNING BOARD
999
A6455200433
STEP
999
A6555230350
BUSHING
999
A6565202644
BRACKET AT LEFT SIDE MEMBER
999
A6565202744
BRACKET AT LEFT SIDE MEMBER
999
A6995200831
RUNNING BOARD STEP TO APPARATUS SUPPORT
999
A6995201031
RUNNING BOARD (BASE FRAME) BEHIND CAB
999
A6995201331
RUNNING BOARD BEHIND CAB
999
A6995201430
SUPPORT BEHIND CAB
999
N000966006062
SCREW STEP PLATE TO SUPPORT M 6X70
