Поз.
Артикул
Описание

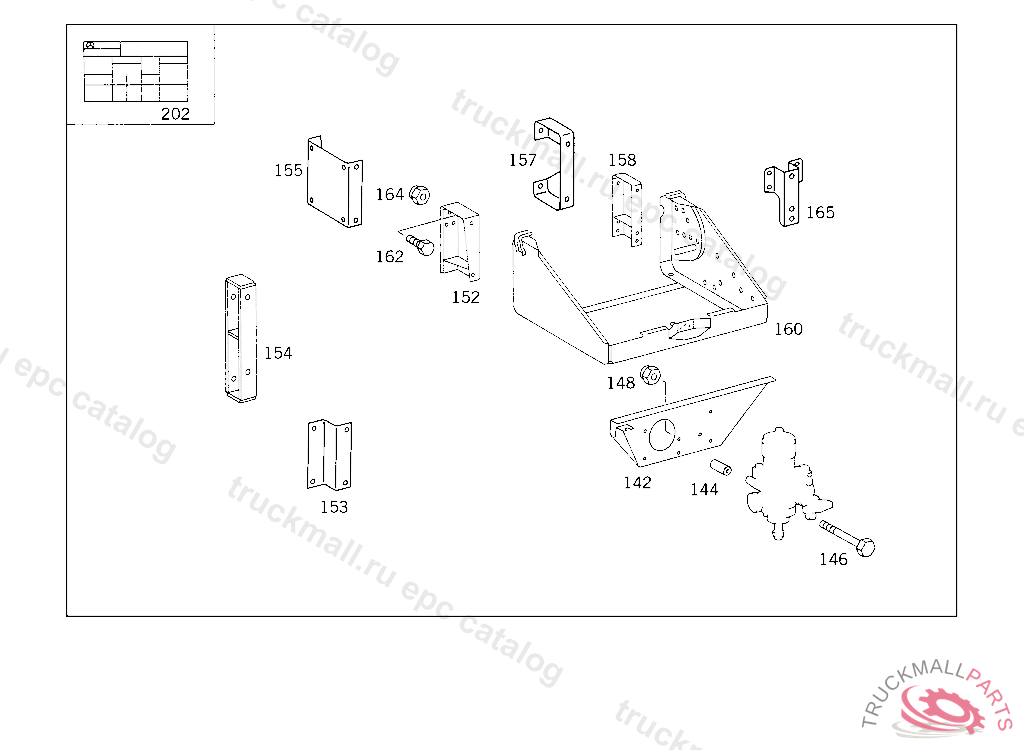

142
BRACKET PRESSURE REGULATOR AND AIR RESERVOIR TO APPARATUS SUPPORT
142
BRACKET APPARATUS SUPPORT
144
BUSHING LINE MOUNTING
146
SCREW , Replaced By: N304014008009
146
SCREW 3/2-WAY VALVE TO BRACKET
148
NUT , Replaced By: N913004008001
148
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
152
SUPPORT APPARATUS SUPPORT
152
SUPPORT APPARATUS SUPPORT
152
CONSOLE
152
SUPPORT , Replaced By: A6194200368
152
SUPPORT APPARATUS SUPPORT
153
SUPPORT APPARATUS SUPPORT
154
BRACKET FUEL TANK TO FRAME
154
SUPPORT APPARATUS SUPPORT
155
BRACKET FRONT AND REAR
157
BRACKET APPARATUS SUPPORT
158
SUPPORT FRONT
158
SUPPORT APPARATUS SUPPORT TO SIDE MEMBER,REAR
160
BATTERY SUPPORT
162
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
162
SCREW BRACKET TO FRAME SIDE MEMBER
164
NUT , Replaced By: N910113014001
164
NUT BRACKET TO SIDE MEMBER
164
NUT END PIECE TO EXHAUST PIPE
165
BRACKET APPARATUS SUPPORT
202
ADHESIVE FOIL GUIDE SIGN
999
HANDLE"WABCO"
999
VALVE , Replaced By: A0034314706
999
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
BRACKET RELAY VALVE
999
BUSHING VALVE TO BRACKET
