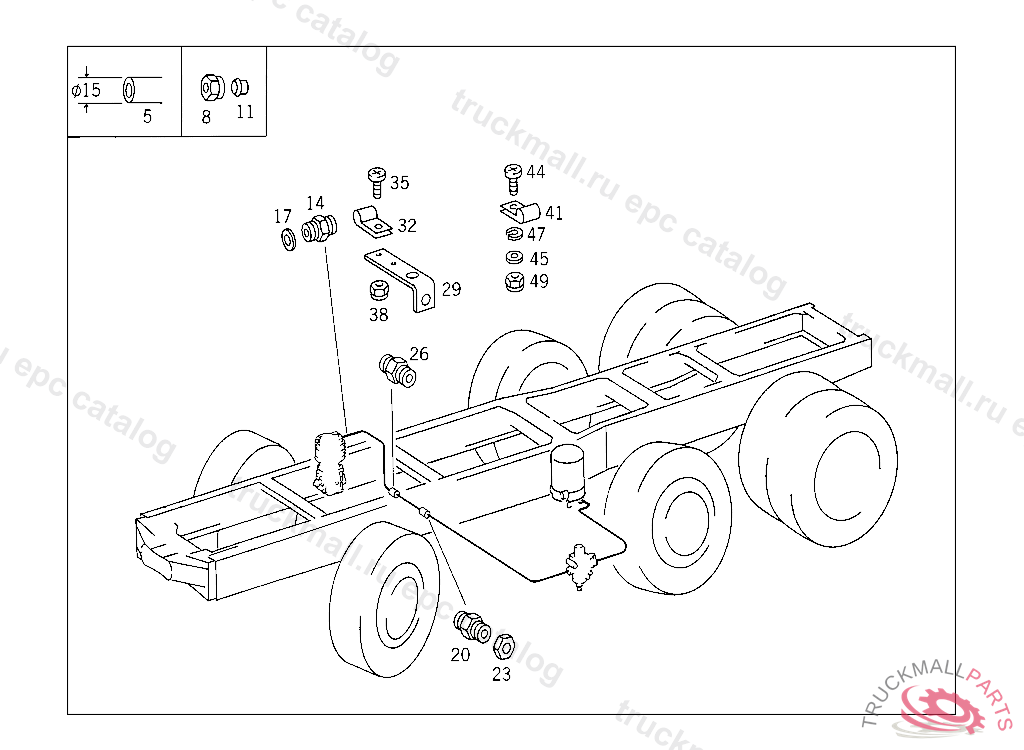

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
17
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
20
BULKHEAD FITTING THROUGH SIDE MEMBER
23
NUT CHECK VALVE TO AIR RESERVOIR
26
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
29
BRACKET LINE MOUNTING
29
BRACKET , Replaced By: A4255530840
32
CLAMP LINE MOUNTING
35
SCREW HOOK TO BRACKET
38
NUT TWO-WAY VALVE TO BRACKET
41
CLAMP DELIVERY AND SUCTION LINES TO STEERING
41
CLAMP , Replaced By: A6739950001
44
SCREW CLAMP TO BRACKET
44
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
45
WASHER COMPRESSED AIR LINE TO BRACKET
45
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
47
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
49
NUT PUMP TO BRACKET
49
NUT , Replaced By: N913004006001
