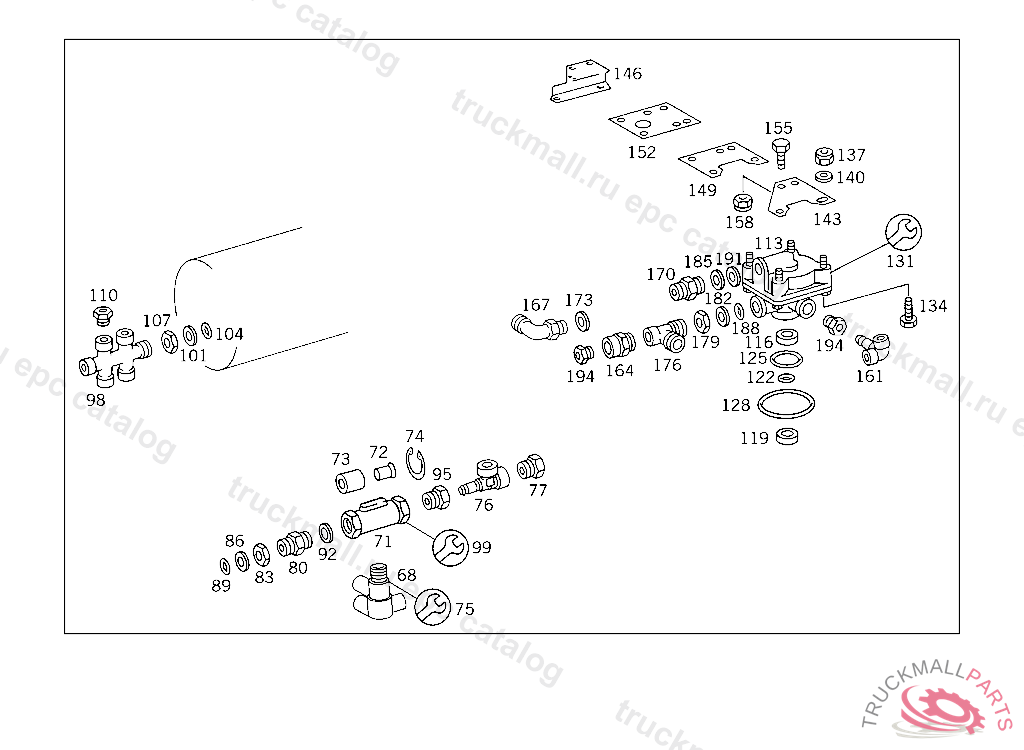

Поз.
Артикул
Описание
68
VALVE (CHECK VALVE),EPS & CLUTCH BOOSTER
71
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
71
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
72
VALVE SEAT RINGWABCO,5 433388
73
BUSHINGWABCO,5 433388
74
LOCK RINGWABCO,5 433388
75
REPAIR KIT CHECK VALVE VOSS
76
TANK RECESS. T-FITTING LINE CONNECTION
77
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
77
SCREW PLUG , Replaced By: N000908022011
80
FITTING LINE CONNECTION
83
NUT CHECK VALVE TO AIR RESERVOIR
83
NUT CHECK VALVE TO AIR RESERVOIR
83
NUT CHECK VALVE TO AIR RESERVOIR
86
THRUST RING CHECK VALVE TO AIR RESERVOIR
86
THRUST RING CHECK VALVE TO AIR RESERVOIR
86
THRUST RING CHECK VALVE TO AIR RESERVOIR
86
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
89
O-RING CHECK VALVE TO AIR RESERVOIR
89
O-RING CHECK VALVE TO AIR RESERVOIR
89
O-RING CHECK VALVE TO AIR RESERVOIR
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
95
SCREW. UNION SCREW LINE CONNECTION
98
DISTRIBUTOR WITH CHECK VALVE
99
REPAIR KIT CHECK VALVE VOSS
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
101
THRUST RING CHECK VALVE TO AIR RESERVOIR
104
O-RING CHECK VALVE TO AIR RESERVOIR
107
NUT CHECK VALVE TO AIR RESERVOIR
110
SCREW. UNION SCREW LINE CONNECTION
110
SCREW. UNION SCREW , Replaced By: A0009973734
110
SCREW. UNION SCREW LINE CONNECTION
113
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
113
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
113
VALVE , Replaced By: A0044293844
113
VALVE FRONT AXLE II RELAY VALVE "WABCO"
113
VALVE FRONT AXLE II RELAY VALVE "BOSCH"
113
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
113
VALVE (RELAY VALVE) WABCO
113
VALVE (RELAY VALVE) GRAU
113
VALVE (RELAY VALVE) BOSCH
116
VALVE SEATGRAU
119
GASKET34X2X6 MM,GRAU
122
SEAL RING22.3X2.4 MM,GRAU
125
SEAL RING28X2 MM,GRAU
128
SEAL RING86X2 MM,GRAU
131
REPAIR KIT RELAY VALVE TO 003 429 93 44,WABCO
131
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
131
REPAIR KIT RELAY VALVE BOSCH
131
REPAIR KIT RELAY VALVE "GRAU"
134
SCREW , Replaced By: N304017008018
134
SCREW SUPPORT TO FENDER
137
NUT , Replaced By: N913004008001
137
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
137
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
143
BRACKET RELAY VALVE
146
BRACKET REAR AXLE I RELAY VALVE
146
BRACKET REAR AXLE I RELAY VALVE
149
BRACKET BRACKET TO SUPPORT
152
BRACKET FRONT AXLE RELAY VALVE
155
SCREW , Replaced By: N304017008021
155
SCREW PIPE CLAMP
155
SCREW BRACKET TO FRAME SIDE MEMBER
155
SCREW , Replaced By: N308676012012
155
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
158
NUT END PIECE TO EXHAUST PIPE
158
NUT SUPPORT TO SIDE MEMBER
164
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
167
ELBOW FITTING , Replaced By: A0004294638
167
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
170
FITTING , Replaced By: A0029979572
173
SEAL RING. SEALING RING CLUTCH BOOSTER,CONNECTION: "10"
176
T-FITTING AIR RESERVOIR,CONNECTION: "24"
179
NUT CHECK VALVE TO AIR RESERVOIR
182
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
182
THRUST RING CHECK VALVE TO AIR RESERVOIR
185
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
188
O-RING CHECK VALVE TO AIR RESERVOIR
191
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
194
SCREW. UNION SCREW LINE CONNECTION
194
SCREW. UNION SCREW , Replaced By: A0009973734
194
SCREW. UNION SCREW LINE CONNECTION
