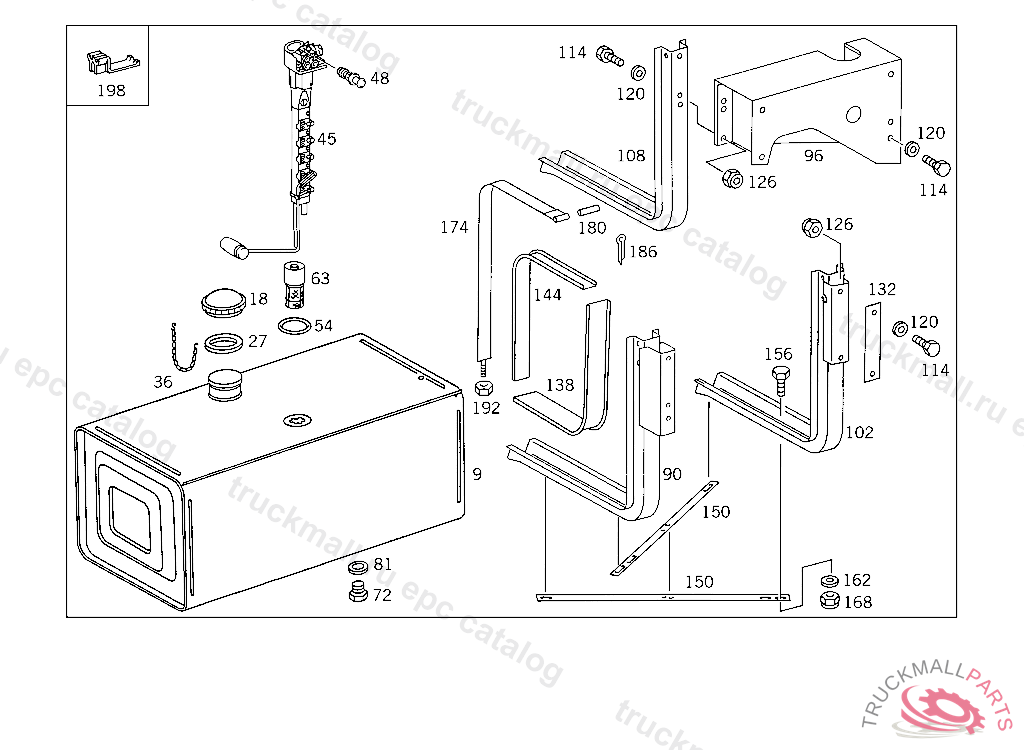

Поз.
Артикул
Описание
9
FUEL TANK
9
FUEL TANK300 L
18
FILLER CAP
18
FILLER CAP , Replaced By: A0004700305
27
SEAL RING
36
CHAIN FILLER CAP
45
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
45
SENDER UNIT FUEL GAUGE
45
SENDER UNIT , Replaced By: A0115426617, +001A0005409917
45
SENDER UNIT
48
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
54
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
63
FUEL STRAINER FUEL TANK,K 169122
63
FUEL STRAINER FUEL TANK,K 169123
72
SCREW PLUG , Replaced By: N007604014110
72
SCREW PLUG FUEL TANK
81
SEAL RING FUEL LINE TO FEED PUMP
90
SUPPORT FUEL TANK TO FRAME, TO BE ADAPTED DURING ASSEMBLY
90
SUPPORT FUEL TANK TO FRAME, TO BE ADAPTED DURING ASSEMBLY
90
SUPPORT FUEL TANK TO FRAME
96
SUPPORT , Replaced By: A6574700542
96
SUPPORT FUEL TANK TO FRAME, TO BE ADAPTED DURING ASSEMBLY
102
SUPPORT FUEL TANK
102
SUPPORT FUEL TANK,5 150326
102
CONSOLE REAR EXHAUST PIPE TO CONSOLE
108
SUPPORT FUEL TANK
114
SCREW , Replaced By: N308676014008
114
SCREW MOUNTING TO CONSOLE M 14X35
114
SCREW MOUNTING TO CONSOLE M 14X35
114
SCREW , Replaced By: A9429901304
114
SCREW APPARATUS SUPPORT TO FRAME
114
SCREW , Replaced By: N308676014012
114
SCREW SUPPORT TO SIDE MEMBER M 14X45
114
SCREW SUPPORT TO SIDE MEMBER M 14X45
114
SCREW BRACKET TO CAB CONSOLE,K 035197
114
SCREW STEERING SUPPORT TO FRAME M 14X50
114
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X65
114
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X70
120
WASHER SPARE WHEEL CARRIER
120
WASHER CROSS MEMBER TO SUPPORT
120
WASHER , Replaced By: N000125015019
120
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
126
NUT , Replaced By: N910113014000
126
NUT STEERING SUPPORT TO FRAME
126
NUT STEERING SUPPORT TO FRAME
132
SHIM SUPPORT TO SIDE MEMBER
132
SHIM SUPPORT TO SIDE MEMBER
132
SHIM SUPPORT TO SIDE MEMBER
132
BASE SUPPORT TO SIDE MEMBER
132
BASE SUPPORT TO SIDE MEMBER
132
BASE SUPPORT TO SIDE MEMBER
138
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
144
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
150
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
150
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
150
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE,750 MM
150
REINFORCEMENT FUEL TANK SUPPORT
150
REINFORCEMENT SUPPORT TO CONSOLE,5 497851
156
SCREW CONSOLE TO SIDE MEMBER
162
WASHER STRAP TO SUPPORT
168
NUT SUPPORT TO SIDE MEMBER
174
STRAP FUEL TANK TO SUPPORT
180
PIN STRAP TO SUPPORT
186
COTTER PIN STRAP TO SUPPORT
192
NUT SUPPORT TO SIDE MEMBER
198
BRACKET TO MOUNT FUEL LINES,K 114273
999
SUPPORT REAR FUEL TANK
999
SUPPORT FRONT FUEL TANK
999
BRACKET STRAP
