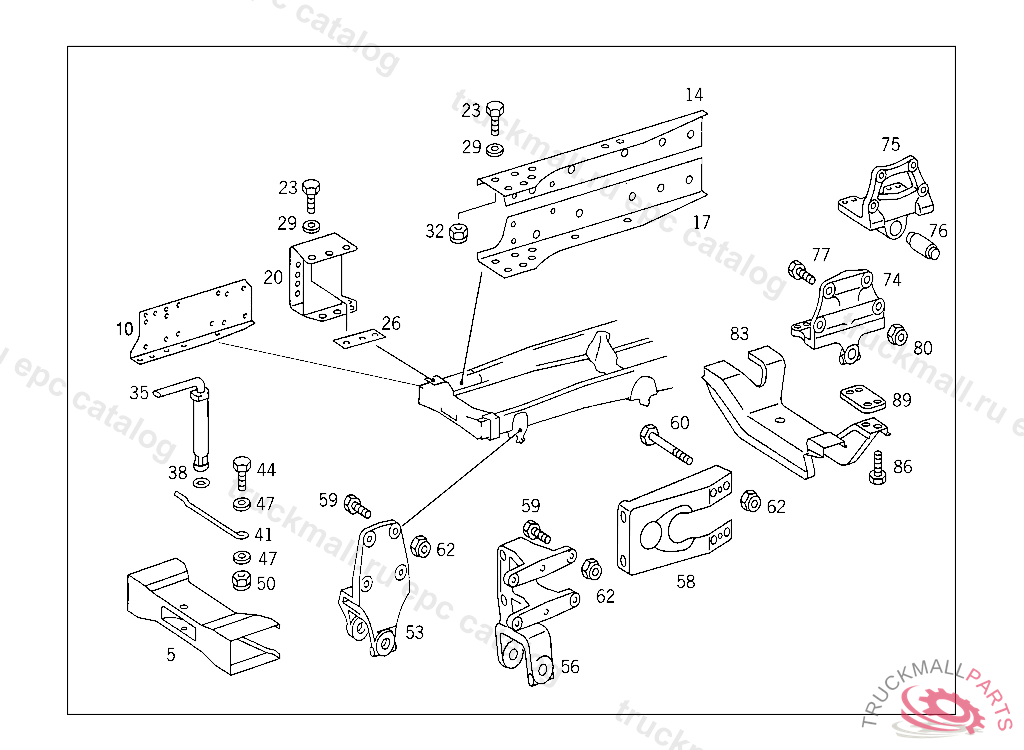

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
10
GUSSET PLATE
20
BOW FRONT LEFT
20
BOW FRONT RIGHT
23
SCREW , Replaced By: N308676012026
23
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
23
SCREW , Replaced By: N308676012031
23
SCREW , Replaced By: N308676012011
23
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
23
SCREW , Replaced By: N308676014020
23
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
23
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
26
BASE AS REQUIRED 3.00 MM
26
BASE AS REQUIRED 4.00 MM
26
BASE AS REQUIRED 5.00 MM
32
NUT SUPPORT TO SIDE MEMBER
32
NUT , Replaced By: N910113014001
32
NUT BRACKET TO SIDE MEMBER
32
NUT BRACKET TO SIDE MEMBER
35
COUPLING PIN FOR COUPLING MOUTH
38
SEALING CORD FOR COUPLING MOUTH
41
LOCKING SPRING TO SECURE COUPLING PIN
44
SCREW , Replaced By: N304017008034
44
SCREW BRACKET TO CROSS CONNECTION STRUT
47
WASHER , Replaced By: N000125008443
47
WASHER EXHAUST MUFFLER TO STRAP
50
NUT , Replaced By: N913004008001
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
50
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
FRONT SPRING BRACKET , Replaced By: A6203220901
53
FRONT SPRING BRACKET FRONT
59
SCREW CONSOLE AND STRUT TO FRAME
59
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER M 16X55
60
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
62
NUT , Replaced By: N910113016001
62
NUT CONSOLE TO SUPPORT
74
FRONT SPRING BRACKET REAR
77
SCREW , Replaced By: A9429901304
77
SCREW APPARATUS SUPPORT TO FRAME
77
SCREW , Replaced By: N308676014012
77
SCREW SUPPORT TO SIDE MEMBER M 14X45
80
NUT , Replaced By: N910113014000
80
NUT STEERING SUPPORT TO FRAME
83
CROSS MEMBER FRONT SPRING REAR BRACKET NO.2
86
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
89
SHIM CROSS MEMBER TO SUPPORT
999
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
