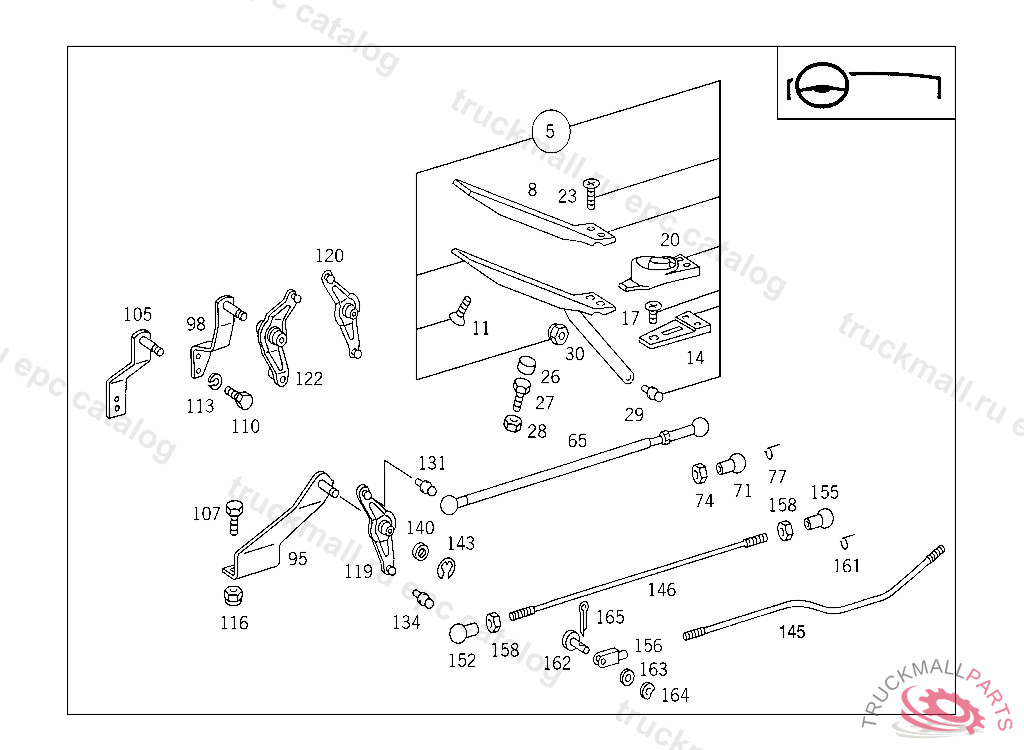

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
STOP ACCELERATOR PEDAL
27
SCREW VALVE TO BRACKET
27
SCREW VALVE TO BRACKET, Replaced By: N304014008002
28
NUT
29
BALL PIVOT LOAD SENSOR
30
NUT PUMP TO BRACKET
30
NUT , Replaced By: N913004006001
65
ROD LOAD SENSOR CONTROL
71
BALL SOCKET PULL ROD TO LEVER
71
BALL SOCKET PULL ROD TO LEVER
74
NUT BALL PIVOT TO LEVER
77
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
98
BEARING BRACKET INTERMEDIATE BEARING
110
SCREW SUPPORT TO FENDER
110
SCREW , Replaced By: N304017008018
110
SCREW BRACKET TO CROSS CONNECTION STRUT
110
SCREW , Replaced By: N304017008034
113
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
122
LEVER INTERMEDIATE BEARING
131
BALL STUD. BALL PIVOT TOP B10X4,5 MM
134
BALL PIVOT BOTTOM B13X5 MM
140
COVERING INTERMEDIATE BEARING
143
LOCK PLATE INTERMEDIATE BEARING
146
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
152
BALL SOCKET ROD TO BALL PIVOT
155
BALL SOCKET ROD TO BALL PIVOT
158
NUT
161
SECURING CLIP. CIRCLIP
