Поз.
Артикул
Описание

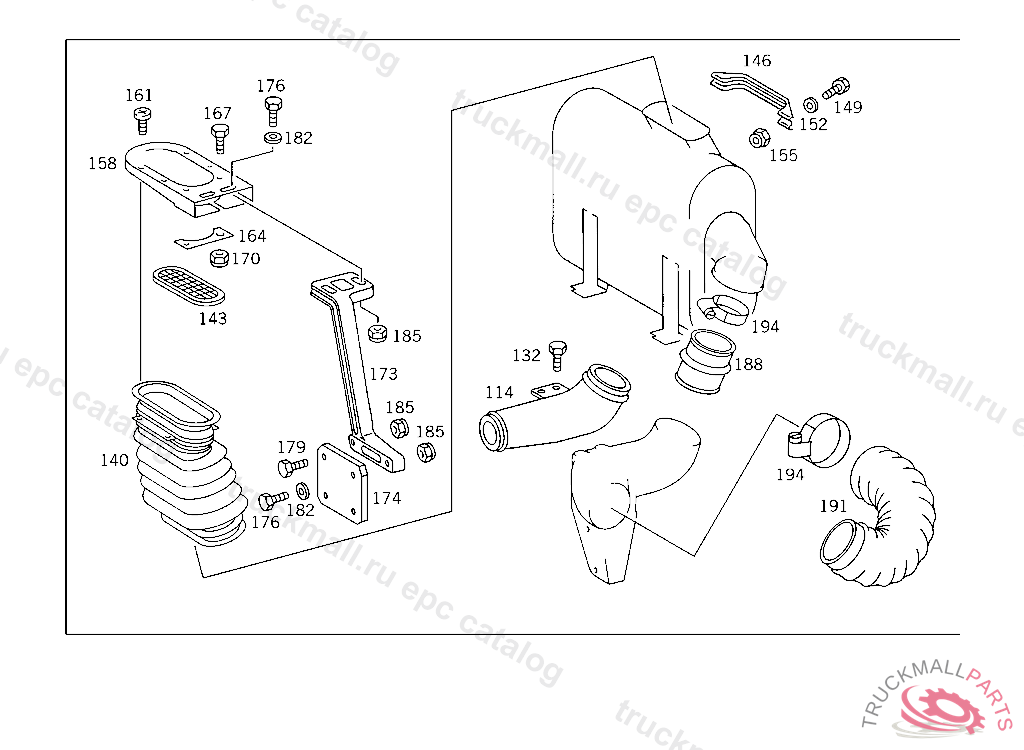

114
AIR INTAKE PIPE
132
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
132
SCREW , Replaced By: N308676012026
140
BOOT FROM AIR CLEANER TO INTAKE PIPE
143
STRAINER BOOT
146
CLAMP BOOT TO AIR DUCT AND TO AIR CLEANER
149
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
149
SCREW , Replaced By: N304017008027
152
WASHER EXHAUST MUFFLER TO STRAP
152
WASHER , Replaced By: N000125008443
155
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
155
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
155
NUT , Replaced By: N913004008001
158
BRACKET BOOT
158
BRACKET , Replaced By: A6575280040
161
SCREW BOOT TO BRACKET
164
BRACKET BOOT
167
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
167
SCREW , Replaced By: N304017008016
170
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
170
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
170
NUT , Replaced By: N913004008001
173
SUPPORT AIR INTAKE PIPE
174
MOUNTING BOW BOOT
176
SCREW
176
SCREW , Replaced By: N304017010051
176
SCREW BRACKET TO SUPPORT
179
SCREW END PIECE TO EXHAUST PIPE M 10X25
179
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
182
WASHER STRUT TO CROSS MEMBER
182
WASHER , Replaced By: N007349010007
182
WASHER RADIATOR TO RUBBER MOUNTING
182
WASHER , Replaced By: N000125010532
185
NUT STRAP TO BRACKET
185
NUT STRAP TO BRACKET
185
NUT , Replaced By: N910113010000
188
HOSE AIR INTAKE
191
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
194
CLAMP AIR INTAKE
194
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
194
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
194
CLAMP , Replaced By: N000000000678
999
COVER , Replaced By: A0010942703
