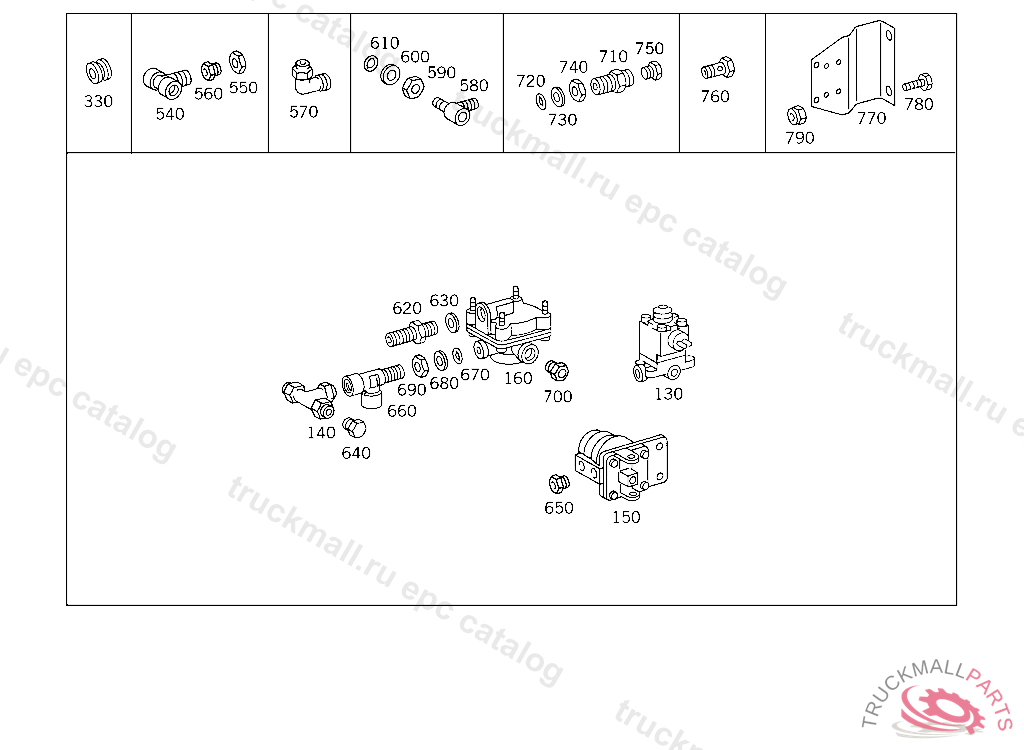

Поз.
Артикул
Описание
130
VALVE (3/2-WAY SOLENOID VALVE) "WABCO"
140
VALVE (SHUTTLE VALVE)
150
VALVE LOAD/NO-LOAD, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
160
VALVE FRONT AXLE II RELAY VALVE "WABCO"
160
VALVE FRONT AXLE II RELAY VALVE "BOSCH"
330
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
540
T-FITTING LINE CONNECTION
550
NUT CHECK VALVE TO AIR RESERVOIR
560
SCREW. UNION SCREW LINE CONNECTION
570
ELBOW FITTING , Replaced By: A0049906471
570
ELBOW FITTING CHECK VALVE TO RELAY VALVE
580
T-FITTING CHECK VALVE TO RELAY VALVE
590
NUT COMBINATION CYLINDER,CONNECTION: "12"
600
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
610
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
620
FITTING RELAY VALVE,CONNECTION: "40"
630
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
630
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
640
SCREW PLUG , Replaced By: N000908022011
640
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
650
SCREW. UNION SCREW LINE CONNECTION
660
FITTING BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
670
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
680
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
690
NUT COMBINATION CYLINDER,CONNECTION: "12"
700
SCREW. UNION SCREW , Replaced By: A0009973734
700
SCREW. UNION SCREW LINE CONNECTION
710
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
720
SEAL RING LINE CONNECTION
720
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
730
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
730
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
740
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
750
SCREW PLUG , Replaced By: N000908012009
750
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
760
HOLLOW SCREW HEATING CONNECTION
770
BRACKET LOAD/NO-LOAD VALVE
770
BRACKET LOAD/NO-LOAD VALVE
780
SCREW , Replaced By: N910142008001
780
SCREW BRACKET TO BRACKET
790
NUT BRACKET TO BRACKET
999
BRACKET FRONT AXLE,RIGHT
999
BRACKET FRONT AXLE,LEFT
999
BRACKET COMPRESSED AIR LINES
