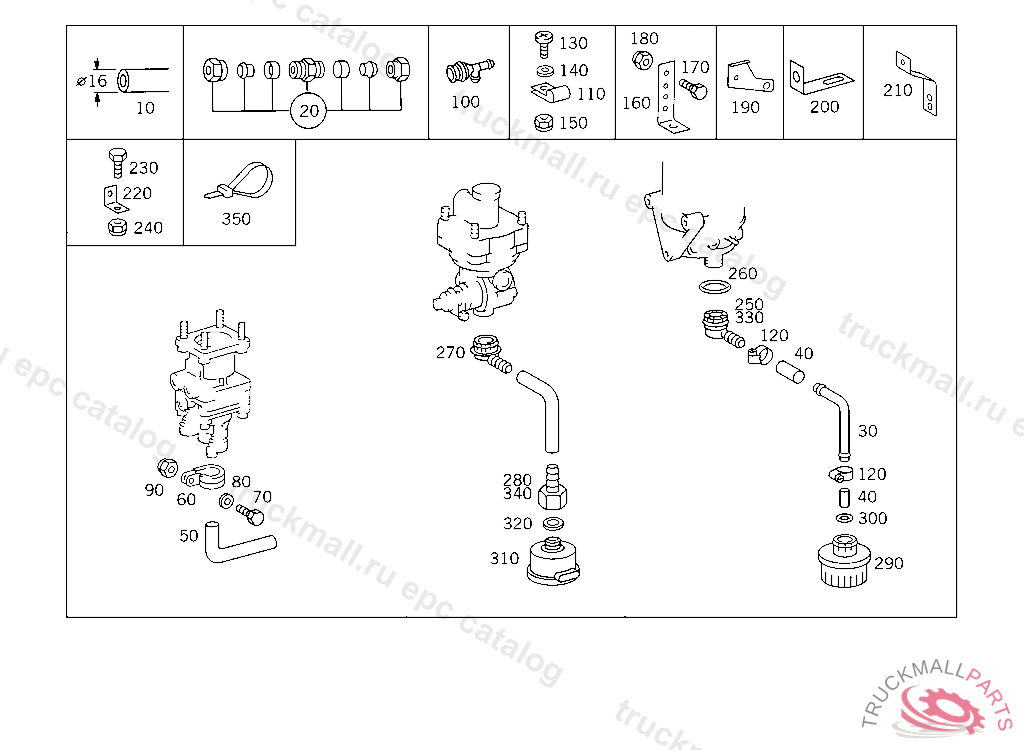

Поз.
Артикул
Описание
10
HOSE , Replaced By: A0009872927
10
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
20
FITTING (PARTS KIT),LINE RUPTURE
30
LINE FROM AIR DEHYDRATOR TO MUFFLER
30
LINE FROM AIR DEHYDRATOR TO MUFFLER
30
HOSE COMPRESSED AIR LINE TO DEHYDRATOR
30
LINE FROM AIR DEHYDRATOR TO MUFFLER
30
LINE FROM AIR DEHYDRATOR TO MUFFLER
30
LINE FROM AIR DEHYDRATOR TO MUFFLER
30
LINE FROM AIR DEHYDRATOR TO MUFFLER
30
LINE FROM AIR DEHYDRATOR TO MUFFLER
30
LINE FROM AIR DEHYDRATOR TO MUFFLER, NOT USED
30
HOSE COMPRESSED AIR LINE TO DEHYDRATOR
30
LINE FROM AIR DEHYDRATOR TO MUFFLER
30
LINE FROM PRESSURE REGULATOR TO SLIDE, LENGTH AVAILABLE 3000 MM
30
LINE , Replaced By: A3434293608
30
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
30
LINE , Replaced By: A0005516256
30
LINE FROM AIR DEHYDRATOR TO MUFFLER
30
LINE
30
LINE
30
LINE FROM AIR DEHYDRATOR TO MUFFLER,K 105240
30
LINE FROM AIR DEHYDRATOR TO MUFFLER,K 105240
30
LINE AIR DEHYDRATOR
40
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
40
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
40
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
40
HOSE COMPRESSED AIR LINE TO DEHYDRATOR
40
HOSE , NOT USED
40
HOSE COMPRESSED AIR LINE TO DEHYDRATOR
40
HOSE COMPRESSED AIR LINE TO DEHYDRATOR
40
HOSE , Replaced By: A6589970182
40
HOSE , NOT USED
40
HOSE , NOT USED
40
HOSE , NOT USED
40
HOSE , NOT USED
50
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
60
CLAMP HOSE TO FLANGE AND TO VALVE
70
SCREW CLAMP TO BRACKET
70
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
80
WASHER COMPRESSED AIR LINE TO BRACKET
80
WASHER , Replaced By: N009021006208
90
NUT PUMP TO BRACKET
90
NUT AT FILTER BRACKET
90
NUT AT FILTER BRACKET
90
NUT , Replaced By: N913004006001
100
T-FITTING BETWEEN THE LINES
110
CLAMP DELIVERY AND SUCTION LINES TO STEERING
120
CLAMP
120
CLAMP HOSE TO FLANGE AND TO VALVE
120
CLAMP , Replaced By: N000000000667
120
CLAMP , Replaced By: A6739950001
120
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
120
CLAMP , Replaced By: N916016011202
120
CLAMP LINE CONNECTION
120
CLAMP AT BRACKET
120
CLAMP , Replaced By: N916026016001
120
CLAMP , Replaced By: A0059970190
120
HOSE CLAMP LINE MOUNTING
130
SCREW CLAMP TO BRACKET M 6X14
130
SCREW CLAMP TO BRACKET M 6X14
130
SCREW , Replaced By: N000000001146
130
SCREW CLAMP MOUNTING M 6X16
130
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
130
SCREW CLAMP TO BRACKET
130
SCREW BRACKET TO FRAME SIDE MEMBER
130
SCREW COMPRESSED AIR LINE TO BRACKET
140
WASHER COMPRESSED AIR LINE TO BRACKET
140
WASHER , Replaced By: N009021006208
150
NUT BRACKET TO SIDE MEMBER
150
NUT PUMP TO BRACKET
150
NUT AT FILTER BRACKET
150
NUT , Replaced By: N913004006001
160
BRACKET COMPRESSED AIR LINE TO LEFT SIDE MEMBER
170
SCREW BRACKET TO SIDE MEMBER
180
NUT STRAP TO BRACKET
180
NUT , Replaced By: N910113010000
190
BRACKET COMPRESSED AIR LINE TO CAB
190
BRACKET COMPRESSED AIR LINE TO CAB
200
BRACKET FUEL LINE TO BELL HOUSING
200
BRACKET FUEL LINE TO BELL HOUSING
210
BRACKET AT SIDE MEMBER
220
BRACKET HEATING PIPE
230
SCREW BRACKET TO FRAME SIDE MEMBER
240
NUT END PIECE TO EXHAUST PIPE
250
CONNECTOR BLEEDING
260
SEAL RING BLEEDING 19X4 MM
270
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
270
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
270
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
270
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
280
FITTING BRAKE POWER REGULATOR,CONNECTION: "30"
280
FITTING BRAKE POWER REGULATOR,CONNECTION: "30"
290
MUFFLER VALVE BLEEDING
290
MUFFLER VALVE BLEEDING
290
MUFFLER , Replaced By: A0004302470
300
SEALING CORD SUCTION LINE TO OIL PUMP
310
MUFFLER TRAILER CONTROL VALVE
310
MUFFLER , Replaced By: A0004302370
310
MUFFLER TRAILER CONTROL VALVE
310
MUFFLER BRAKE POWER REGULATOR,CONNECTION: "30"
320
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
320
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
330
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
330
CONNECTOR 75 DEGREES
340
FITTING TRAILER CONTROL VALVE
350
LOOM TIE LINE MOUNTING
