Поз.
Артикул
Описание

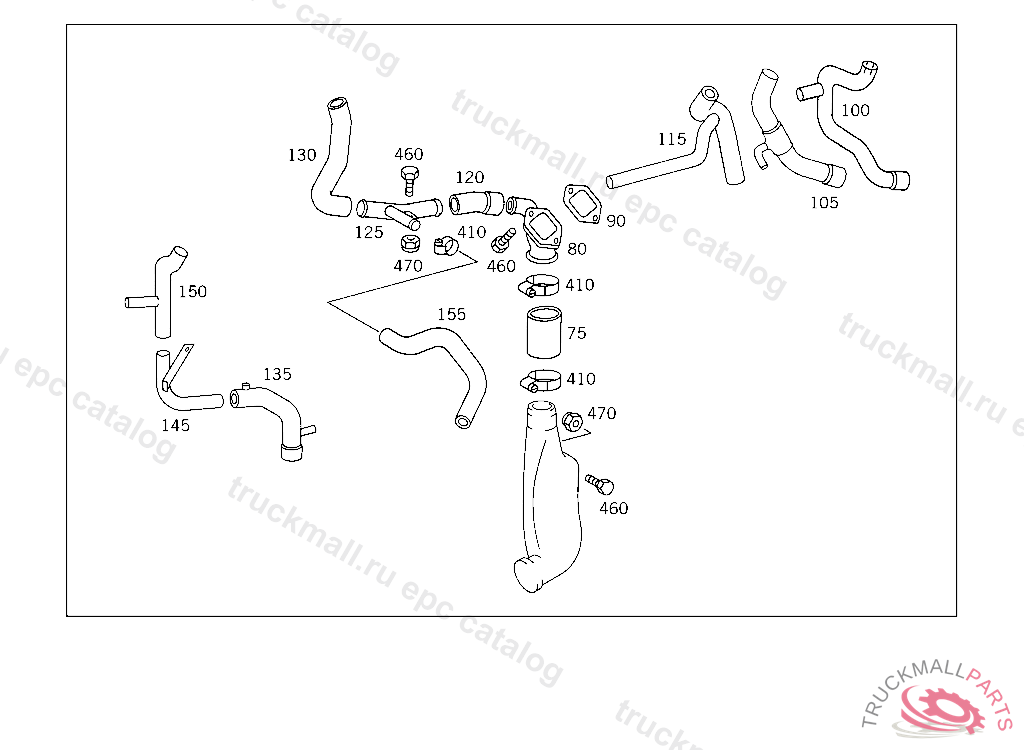

75
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
80
CONNECTOR AT WATER PUMP
80
CONNECTOR AT WATER PUMP
80
CONNECTOR FOR SCREW FITTING
90
GASKET CONNECTOR
90
GASKET CONNECTOR, Replaced By: A0002011280
90
GASKET CONNECTOR, Replaced By: A0002011180
90
GASKET CONNECTOR, Replaced By: A0002011080
100
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
100
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
100
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
100
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
100
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE, TO BE ADAPTED DURING ASSEMBLY
100
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
100
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
100
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
105
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
105
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE, TO BE ADAPTED DURING ASSEMBLY
115
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
120
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
120
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
125
INTERMEDIATE PIECE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
130
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
130
HOSE , Replaced By: A6555013382
135
BREATHER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
145
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
150
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
155
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
155
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
410
CLAMP HOSE 70-90X13 MM
410
CLAMP , Replaced By: N000000000674
410
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
410
CLAMP , Replaced By: N000000000671
410
CLAMP , Replaced By: N000000000670
410
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
410
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
410
CLAMP , Replaced By: N000000000667
410
CLAMP HOSE TO FITTING AND TO OIL TANK
460
SCREW STRAP TO BRACKET
460
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
460
SCREW
460
SCREW SUPPORT TO FENDER
460
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
460
SCREW
460
SCREW , Replaced By: A0099900101
460
SCREW , Replaced By: N304017010051
460
SCREW , Replaced By: N000933008337
460
SCREW PIPE CLAMP
460
SCREW , Replaced By: N304017008021
460
SCREW PUMP TO BRACKET
460
SCREW BRACKET ON LOAD SENSOR
460
SCREW BRACKET TO FRAME SIDE MEMBER
460
SCREW END PIECE TO EXHAUST PIPE M 10X25
460
SCREW END PIECE TO EXHAUST PIPE M 10X25
460
SCREW COVER PLATE TO BRACKET
470
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
470
NUT , Replaced By: N913004008001
470
NUT STRAP TO BRACKET
470
NUT , Replaced By: N910113010000
470
NUT PUMP TO BRACKET
470
NUT , Replaced By: N913004006001
999
LINE FEED AND RETURN LINES TO HEATING
999
OUTLET AT WATER PUMP
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
