Поз.
Артикул
Описание

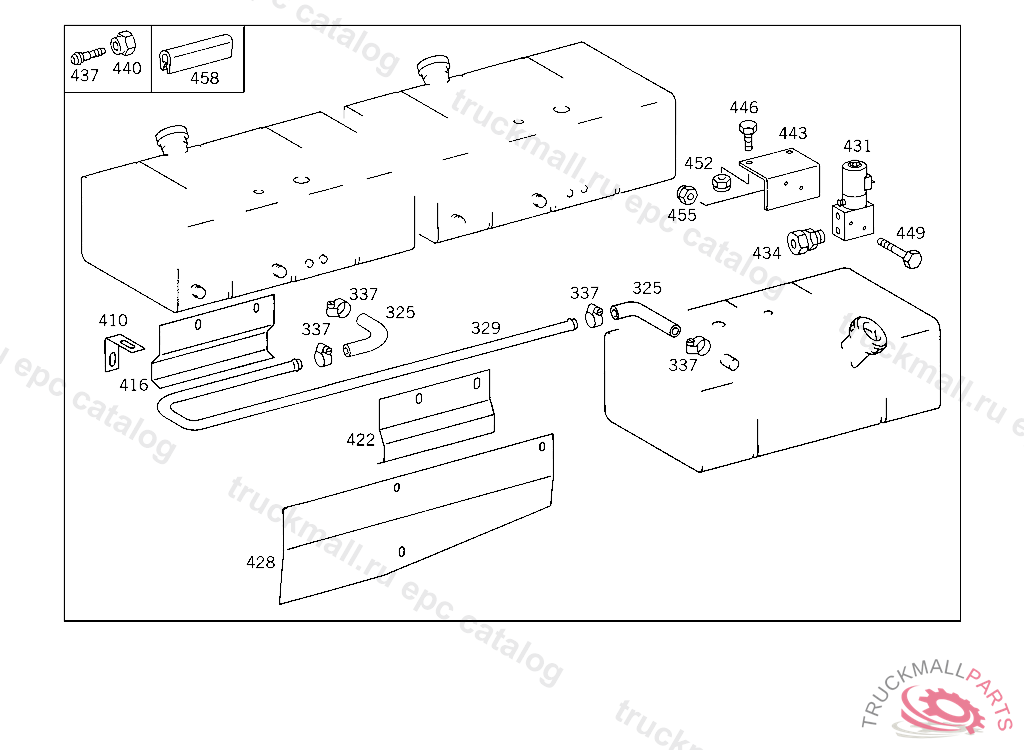

325
HOSE FROM FUEL TANK TO FUEL TANK
325
HOSE CONNECTION OF FUEL TANKS
325
HOSE FROM FUEL TANK TO FUEL TANK
325
HOSE FROM FUEL TANK TO FUEL TANK
325
HOSE FROM FUEL TANK TO FUEL TANK
329
LINE FROM FUEL TANK TO FUEL TANK
329
LINE FROM FUEL TANK TO FUEL TANK 38X1.5 MM
337
CLAMP , Replaced By: N000000000670
337
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
337
CLAMP , Replaced By: N000000000667
337
CLAMP , Replaced By: N000000000670
337
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
337
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
337
CLAMP , Replaced By: N000000000671
410
BRACKET BRACKET TO CROSS MEMBER
416
PANELLING (HEAT SHIELD)
422
PROTECTIVE PLATE (HEAT SHIELD)
422
PROTECTIVE PLATE (HEAT SHIELD)
428
PROTECTIVE PLATE (HEAT SHIELD)
428
PROTECTIVE PLATE (HEAT SHIELD)
431
VALVE SWITCHOVER FUEL RESERVOIR
434
FITTING SWITCHOVER FUEL RESERVOIR
437
FITTING RETURN
440
NUT. UNION NUT RETURN
443
BRACKET SWITCHOVER FUEL RESERVOIR, SIMPLE PART-PLEASE HAVE SHOP MADE
446
SCREW END PIECE TO EXHAUST PIPE M 12X30
446
SCREW , Replaced By: N304017012020
449
SCREW HOUSING TO PLATE
449
SCREW , Replaced By: N000933006226
452
NUT END PIECE TO EXHAUST PIPE
455
NUT PUMP TO BRACKET
455
NUT , Replaced By: N913004006001
458
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
458
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
458
EDGING , Replaced By: A0029873572
999
BRACKET FUEL LINE TO CONSOLE
