Поз.
Артикул
Описание

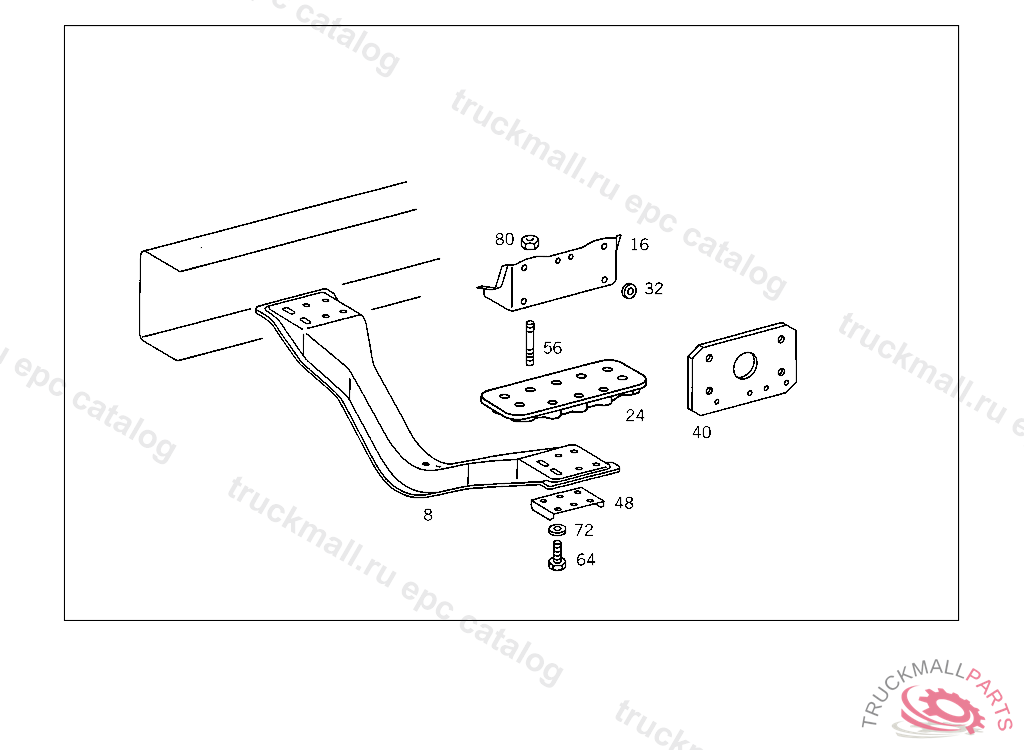

8
CROSS MEMBER ENGINE REAR MOUNTING
16
SUPPORT RIGHT
16
SUPPORT RIGHT
16
SUPPORT REAR RUBBER MOUNTING, TO BE ADAPTED DURING ASSEMBLY
16
SUPPORT , Replaced By: A3962420002
16
SUPPORT , Replaced By: A6562420002
16
SUPPORT LEFT
16
CONSOLE ENGINE REAR MOUNTING
16
SUPPORT REAR RUBBER MOUNTING, TO BE ADAPTED DURING ASSEMBLY
16
SUPPORT REAR RUBBER MOUNTING, TO BE ADAPTED DURING ASSEMBLY
16
CONSOLE RIGHT
16
CONSOLE LEFT
16
CONSOLE ENGINE REAR MOUNTING
16
SUPPORT ENGINE REAR MOUNTING, TO BE ADAPTED DURING ASSEMBLY
16
CONSOLE ENGINE REAR MOUNTING
24
SHIM ENGINE REAR MOUNTING
32
WASHER CROSS MEMBER TO SUPPORT
40
REINFORCEMENT SUPPORT TO SIDE MEMBER
40
REINFORCEMENT CONSOLE TO SIDE MEMBER
48
REINFORCEMENT CONSOLE TO SIDE MEMBER
56
STUD BOLT ENGINE MOUNTING TO CONSOLE M 12X1.5X40
56
STUD BOLT ENGINE MOUNTING TO CONSOLE M 12X1.5X60
64
SCREW , Replaced By: N308676014003
64
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
64
SCREW , Replaced By: N000961012025
64
SCREW SUPPORT TO SIDE MEMBER
64
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X38
64
SCREW , Replaced By: N000961016118
64
SCREWM 16X16X24X42
64
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
64
SCREW CONSOLE TO SIDE MEMBER M 16X1.5X48
64
SCREW BRACKET TO FRAME M 12X45
64
SCREW , Replaced By: N000961012184
64
SCREW , Replaced By: N308676012018
64
SCREW STRUT TO FRAME M 12X62
64
SCREW CONSOLE TO SIDE MEMBER
64
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
64
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
64
SCREW BRACKET TO CAB CONSOLE,K 035197
64
SCREW BRACKET TO SIDE MEMBER
64
SCREW , Replaced By: N308676016020
64
SCREW CONSOLE TO FRAME
64
SCREW CONSOLE TO FRAME SIDE MEMBER M16X38
64
SCREW BEARING BRACKET TO SIDE MEMBER
72
WASHER , Replaced By: N000125015019
72
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
72
WASHER , Replaced By: N007349013003
72
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
72
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
72
WASHER
72
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
80
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
80
NUT COMBINATION CYLINDER TO BEARING BRACKET
80
NUT , Replaced By: N308673012002
80
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
80
NUT , Replaced By: N910113014001
80
NUT BRACKET TO SIDE MEMBER
999
CONSOLE ENGINE REAR MOUNTING
999
CONSOLE ENGINE REAR MOUNTING
