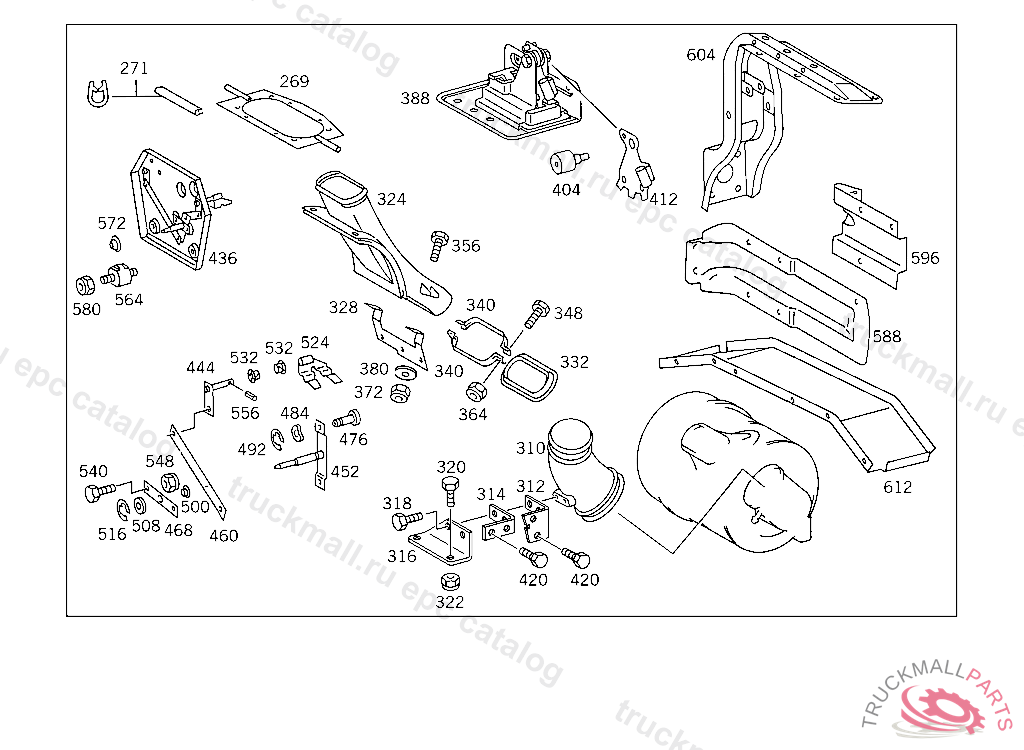

Поз.
Артикул
Описание
269
BRACKET BOOT
271
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
271
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
310
AIR INTAKE PIPE
310
AIR INTAKE PIPE
310
AIR INTAKE PIPE
310
AIR INTAKE PIPE
310
PIPE ELBOW AIR CLEANER
312
BRACKET AIR INTAKE PIPE
314
BRACKET AIR INTAKE PIPE
316
BRACKET AIR INTAKE PIPE
318
SCREW , Replaced By: N304017008039
318
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
318
SCREW CLAMP TO BRACKET AND TO PIPE
318
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
318
SCREW CLAMP TO BRACKET AND TO PIPE
318
SCREW , Replaced By: N304017008034
318
SCREW BRACKET TO CROSS CONNECTION STRUT
320
SCREW BRACKET TO FRAME SIDE MEMBER
320
SCREW BRACKET TO FRAME SIDE MEMBER
320
SCREW BRACKET TO FRAME SIDE MEMBER
322
NUT END PIECE TO EXHAUST PIPE
322
NUT END PIECE TO EXHAUST PIPE
324
AIR INTAKE PIPE
324
AIR INTAKE PIPE
324
AIR INTAKE PIPE
328
BRACKET AIR INTAKE PIPE
332
HOSE FROM AIR CLEANER TO INTAKE PIPE
340
STRAP HOSE TO AIR CLEANER AND TO INTAKE PIPE
348
SCREW CURRENT LIMITER M4 X 25,5 4475325 584018
348
SCREW CURRENT LIMITER M4 X 25,5 4475325 584018
356
SCREW , Replaced By: N304017008034
356
SCREW BRACKET TO CROSS CONNECTION STRUT
356
SCREW BRACKET TO CROSS CONNECTION STRUT
364
NUT , Replaced By: N913002004001
364
NUT ATTACHMENT, MARKER LIGHT
372
NUT , Replaced By: N913004008001
372
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
380
WASHER , Replaced By: N009021008213
380
WASHER BRACKET TO LEFT SIDE MEMBER
388
LOCKING MECHANISM CAB, RIGHT,5 719571
388
LOCKING MECHANISM CAB, RIGHT,5 719572
388
LOCKING MECHANISM CAB, RIGHT,5 719572
404
COUPLING
404
COUPLING
412
TOOTHED SEGMENT
420
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
420
SCREW , Replaced By: N304017008016
436
COVER AIR DUCT
436
COVER AIR DUCT
436
COVER AIR INTAKE PIPE LOCKING MECHANISM BEHIND CAB,5 719571
444
PLATE TOP LEFT AND RIGHT
452
LEVER LOCKING MECHANISM
452
LEVER LOCKING MECHANISM
460
MOUNTING BOW
468
MOUNTING BOW
476
PIN PLATE TO PLATE AND TO LEVER
484
SPRING WASHER PLATE TO PLATE AND TO LEVER
492
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
500
WASHER PLATE TO LEVER
508
WASHER
516
LOCK PLATE INTERMEDIATE BEARING
524
BRACKET
524
BRACKET
532
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
540
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
540
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
540
SCREW , Replaced By: N304017008016
548
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
548
NUT , Replaced By: N913004008001
556
CLAMPING SLEEVE LEVER MOUNTING
564
RUBBER BUFFER SUPPORT TO BRACKET
564
RUBBER BUFFER SUPPORT TO BRACKET
572
GROMMET EXPANSION PLUG
572
GROMMET EXPANSION PLUG
572
GROMMET EXPANSION PLUG
580
NUT
580
NUT
580
NUT
588
BRACKET FENDER
588
BRACKET , Replaced By: A6575210140
596
SUPPORT (CONSOLE),FOR FENDER
596
BRACKET , FOR USE WITH SHORT MERCEDES-BENZ CAB, Replaced By: A6575200033
596
BRACKET , Replaced By: A6575210040
604
BRACKET RIGHT FENDER
604
BRACKET RIGHT FENDER
612
COVER ENGINE COVERING, FOR USE WITH SHORT MERCEDES-BENZ CAB
999
EDGE GUARD SECTION , Replaced By: A0029873572
999
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
999
SEAL RING INTAKE PIPE TO AIR CLEANER
999
AIR CLEANER CYCLONE
999
EDGE GUARD SECTION , Replaced By: A0029873572
999
WASHER , Replaced By: A3859900440
999
SPACER TUBE , Replaced By: A6559910140
999
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
999
AIR INTAKE PIPE FROM AIR INTAKE PIPE TO CYCLONE
999
STAY AIR INTAKE PIPE
999
STRAP AIR INTAKE PIPE TO BRACKET
999
STAY AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE
999
CLAMP BRACKET TO AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE
999
PIPE ELBOW (INTAKE PIPE)
999
SUPPORT BOOT
999
SUPPORT AIR INTAKE PIPE
999
SUPPORT AIR INTAKE PIPE
999
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
CONSOLE CAB SUSPENSION,5 742148
999
CONSOLE CAB SUSPENSION
999
CONSOLE AIR INTAKE CASE
999
CLAMP INTAKE PIPE TO AIR CLEANER
999
LOCKING MECHANISM CAB, RIGHT
999
SUPPORT , Replaced By: A6555202133
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
999
BRACKET AIR CLEANER,FRONT
999
BUFFER ,5 350513
999
LOCKING MECHANISM CAB, RIGHT, FOR USE WITH SHORT MERCEDES-BENZ CAB
999
LEVER COVER
999
CLAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 431572, Replaced By: A6555200067
999
MOUNTING BOW , Replaced By: A6555280344
