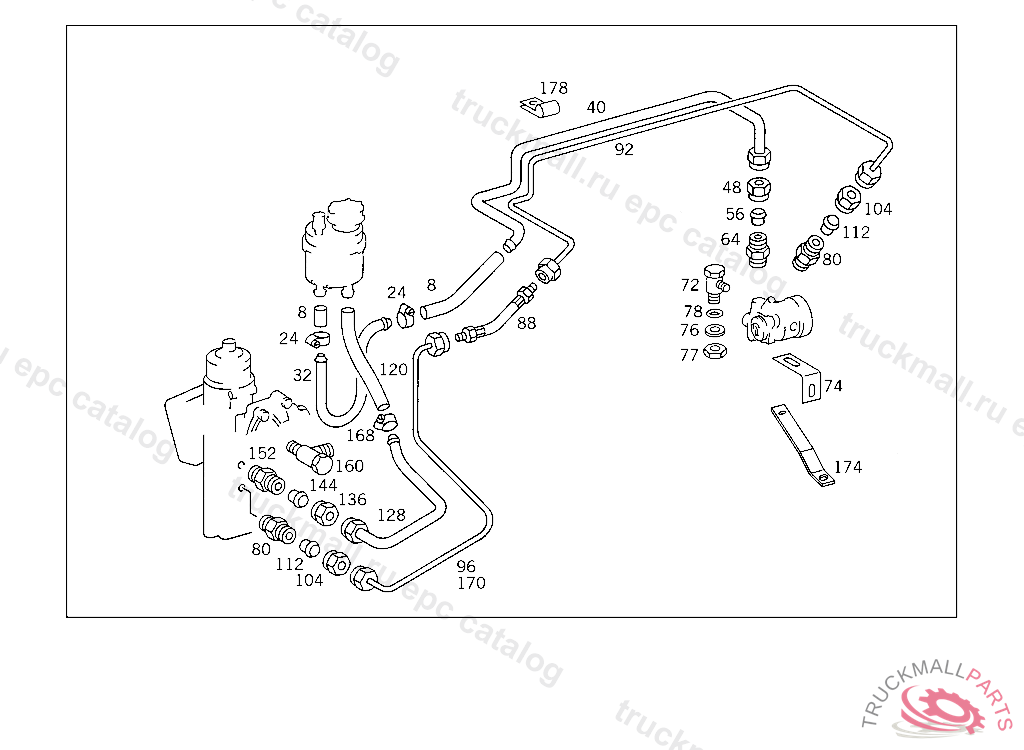

Поз.
Артикул
Описание
8
HOSE , Replaced By: A3859971582
8
HOSE , Replaced By: A3859971582
8
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
8
HOSE , Replaced By: A3439970382
24
CLAMP HOSE TO FITTING AND TO OIL TANK
24
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
32
LINE FROM OIL TANK TO HOSE
32
LINE FROM OIL TANK TO HOSE
32
LINE , Replaced By: A0004291601
32
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
32
LINE FROM OIL TANK TO HOSE, Replaced By: A0004291601
32
LINE FROM OIL TANK TO HOSE
32
LINE FROM OIL TANK TO HOSE
32
LINE FROM OIL TANK TO HOSE
32
LINE FROM OIL TANK TO HOSE
32
LINE , Replaced By: A0004291601
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE , Replaced By: A0004291601
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE , Replaced By: A0004291601
40
LINE , Replaced By: A0004291601
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE , Replaced By: A6564602224
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE , Replaced By: A0004291601
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE , Replaced By: A0004291601
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP, NOT USED
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
40
LINE , Replaced By: A0004291601
48
UNION NUT LINE CONNECTION, Replaced By: N000000006243
48
NUT LINE CONNECTION
56
GLAND , Replaced By: A0019901267
56
SEAL CONE LINE CONNECTION
64
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
64
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
72
THREADED CONNECTION SUCTION LINE TO OIL PUMP
72
SCREW CONNECTION SUCTION LINE TO OIL PUMP, Replaced By: N000000006460
72
ELBOW FITTING SUCTION LINE TO OIL PUMP
72
FITTING SUCTION LINE TO OIL PUMP
72
ELBOW FITTING SUCTION LINE TO OIL PUMP
74
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
74
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6205244040
76
THRUST RING SUCTION LINE TO OIL PUMP
77
NUT SUCTION LINE TO OIL PUMP
78
SEALING CORD SUCTION LINE TO OIL PUMP
80
FITTING DELIVERY LINE TO PUMP
80
FITTING DELIVERY LINE TO PUMP
80
SCREW-IN FITTING DELIVERY LINE TO PUMP
80
SCREW-IN FITTING DELIVERY LINE TO PUMP
80
FITTING DELIVERY LINE TO PUMP
88
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
88
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
88
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
88
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
88
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
88
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
88
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
88
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
88
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
LINE , Replaced By: A0005516156
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
LINE FROM PUMP TO HIGH PRESSURE HOSE, NOT USED
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
TUBE FROM HIGH PRESSURE HOSE TO STEERING
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
92
TUBE FROM HIGH PRESSURE HOSE TO STEERING
92
LINE , Replaced By: A0005516156
92
LINE FROM PUMP TO HIGH PRESSURE HOSE
96
LINE FROM HIGH PRESSURE HOSE TO STEERING
96
LINE RETURN, FROM STEERING TO OIL TANK
96
LINE FROM HIGH PRESSURE HOSE TO STEERING
96
LINE FROM HIGH PRESSURE HOSE TO STEERING
96
TUBE FROM HIGH PRESSURE HOSE TO STEERING
96
LINE FROM HIGH PRESSURE HOSE TO STEERING
96
LINE FROM HIGH PRESSURE HOSE TO STEERING
96
LINE FROM HIGH PRESSURE HOSE TO STEERING
96
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
96
LINE , Replaced By: A0005516256
96
LINE FROM HIGH PRESSURE HOSE TO STEERING
96
LINE FROM HIGH PRESSURE HOSE TO STEERING
104
UNION NUT LINE CONNECTION, Replaced By: N000000006239
104
UNION NUT LINE CONNECTION
112
GLAND , Replaced By: A0019901967
112
SEAL CONE LINE CONNECTION
120
HOSE DELIVERY LINE TO STEERING
120
HOSE RETURN, FROM STEERING TO OIL TANK
120
HOSE , Replaced By: A3439970382
120
HOSE , Replaced By: A3859971582
120
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
120
HOSE DELIVERY LINE TO STEERING
128
LINE RETURN, FROM STEERING TO OIL TANK
128
LINE RETURN, FROM STEERING TO OIL TANK
128
LINE , Replaced By: A0005516256
128
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
128
LINE RETURN, FROM STEERING TO OIL TANK
128
LINE RETURN, FROM STEERING TO OIL TANK
136
UNION NUT LINE CONNECTION
136
UNION NUT LINE CONNECTION, Replaced By: N000000006243
136
NUT LINE CONNECTION
136
UNION NUT LINE CONNECTION, Replaced By: N000000006239
136
UNION NUT LINE CONNECTION
144
GLAND LINE CONNECTION
144
GLAND , Replaced By: A0019901267
144
SEAL CONE LINE CONNECTION
144
GLAND , Replaced By: A0019901967
144
SEAL CONE LINE CONNECTION
152
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
160
SCREW CONNECTION RETURN, FROM STEERING TO OIL TANK
168
CLAMP HOSE TO FITTING AND TO OIL TANK
168
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
168
CLAMP HOSE TO FITTING AND TO OIL TANK
170
LINE DELIVERY LINE TO STEERING
174
BRACKET TWO-WAY VALVE
178
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
178
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
178
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
178
CLAMP DELIVERY AND SUCTION LINES TO STEERING
178
CLAMP LINE MOUNTING
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
CLAMP DELIVERY AND SUCTION LINES TO FRAME
999
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
