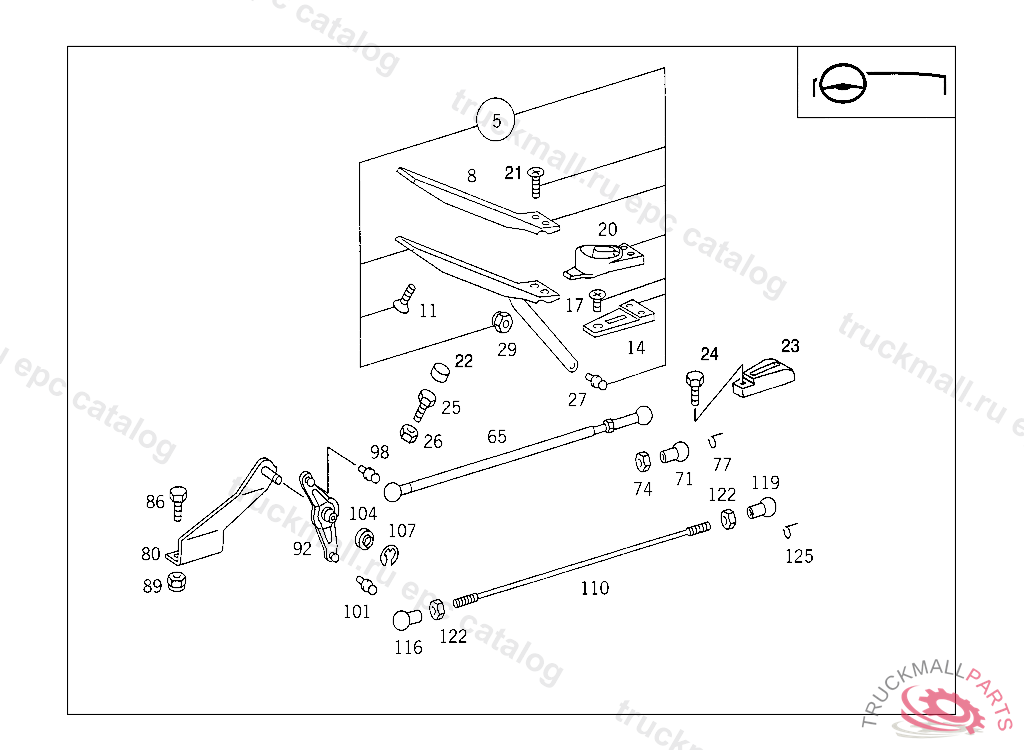

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
21
SCREW ACCELERATOR PEDAL TO CAB M 6X25
22
STOP ACCELERATOR PEDAL
23
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
24
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
25
SCREW VALVE TO BRACKET, Replaced By: N304014008002
25
SCREW VALVE TO BRACKET
26
NUT
27
BALL PIVOT LOAD SENSOR
29
NUT , Replaced By: N913004006001
29
NUT PUMP TO BRACKET
65
ROD LOAD SENSOR CONTROL
71
BALL SOCKET PULL ROD TO LEVER
71
BALL SOCKET PULL ROD TO LEVER
74
NUT BALL PIVOT TO LEVER
77
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
80
BEARING BRACKET INTERMEDIATE BEARING
86
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
89
NUT , Replaced By: N910113010000
89
NUT STRAP TO BRACKET
92
LEVER INTERMEDIATE BEARING
98
BALL STUD. BALL PIVOT TOP B10X4,5 MM
101
BALL PIVOT BOTTOM B13X5 MM
104
COVERING INTERMEDIATE BEARING
107
LOCK PLATE INTERMEDIATE BEARING
110
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
116
BALL SOCKET ROD TO BALL PIVOT
119
BALL SOCKET ROD TO BALL PIVOT
122
NUT
125
SECURING CLIP. CIRCLIP
