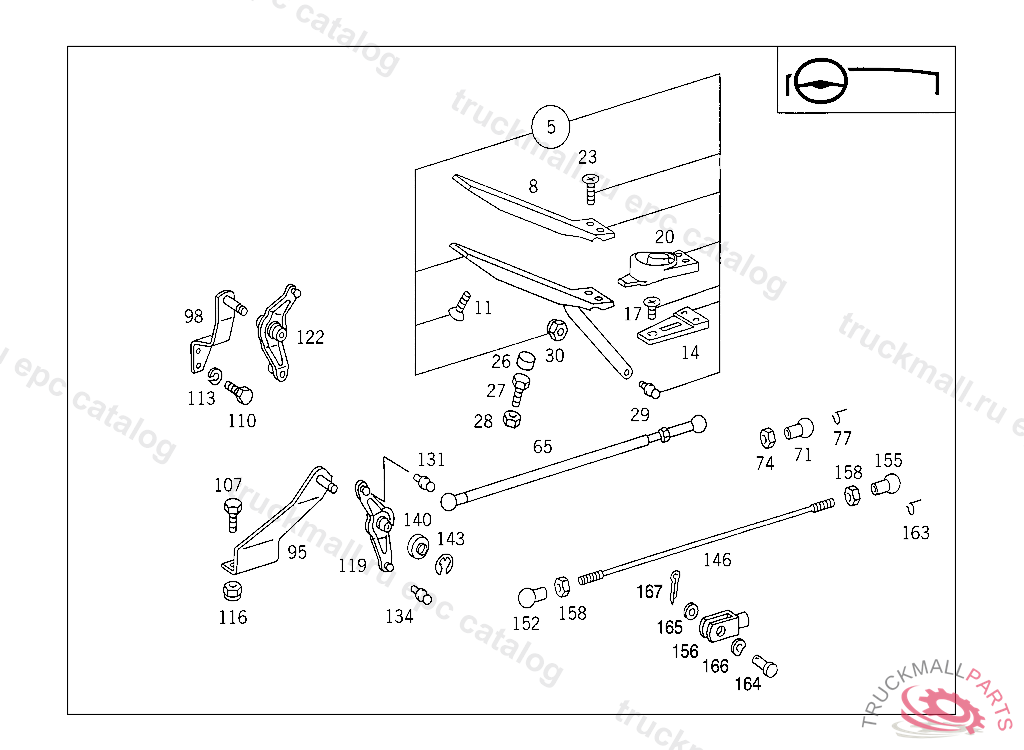

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
STOP ACCELERATOR PEDAL
27
SCREW VALVE TO BRACKET, Replaced By: N304014008002
27
SCREW VALVE TO BRACKET
28
NUT
29
BALL PIVOT LOAD SENSOR
30
NUT , Replaced By: N913004006001
30
NUT PUMP TO BRACKET
65
ROD LOAD SENSOR CONTROL
71
BALL SOCKET PULL ROD TO LEVER
71
BALL SOCKET PULL ROD TO LEVER
74
NUT BALL PIVOT TO LEVER
77
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
95
BEARING BRACKET INTERMEDIATE BEARING
107
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
116
NUT , Replaced By: N910113010000
116
NUT STRAP TO BRACKET
119
LEVER INTERMEDIATE BEARING
119
LEVER (REVERSING LEVER)
131
BALL STUD. BALL PIVOT TOP B10X4,5 MM
134
BALL PIVOT BOTTOM B13X5 MM
140
COVERING INTERMEDIATE BEARING
143
LOCK PLATE INTERMEDIATE BEARING
146
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
152
BALL SOCKET ROD TO BALL PIVOT
155
BALL SOCKET ROD TO BALL PIVOT
156
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
158
NUT
163
SECURING CLIP. CIRCLIP
164
PIN ROD TO LEVER
165
WASHER BRACKET TO CROSS MEMBER
166
SPRING WASHER , Replaced By: N000137008212
166
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
167
COTTER PIN ROD TO INTERMEDIATE LEVER
167
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
