Поз.
Артикул
Описание

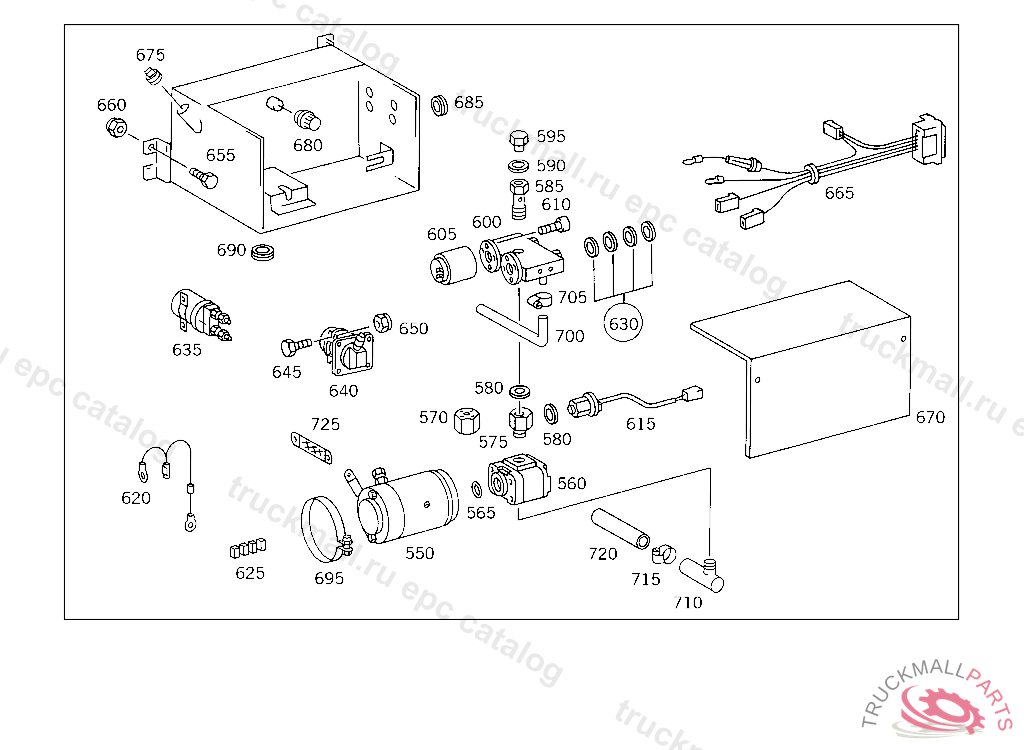

550
MOTORSWE
550
MOTORBOSCH
560
PUMPSWE
560
PUMPBOSCH
565
SEAL RINGSWE
565
SEAL RINGBOSCH
570
VALVE (CHECK VALVE) BOSCH
575
VALVE (CHECK VALVE) SWE
580
SEAL RING , Replaced By: N007603018101
580
SEAL RING VALVE TO VALVE,K 025179
585
HOLLOW SCREW SOLENOID VALVE
590
SEAL RING SOLENOID VALVE
595
SCREW , Replaced By: A0019976130
595
SCREW PLUG
600
VALVE , Replaced By: A0005504355
600
VALVE , Replaced By: A0005505355
600
VALVE (CONTROL VALVE)
600
VALVE (CONTROL VALVE)
605
MAGNET
610
SCREW
615
SWITCH (PRESSURE SWITCH) 140 BAR
620
CONTROL UNIT THERMAL SWE
625
CARBON BRUSH PARTS KIT BOSCH
625
CARBON BRUSH PARTS KIT SWE
630
SEAL RING PARTS KIT SWE
635
COIL , Replaced By: A0005450967
635
CONTACTOR
640
COIL , Replaced By: A0005450967
640
CONTACTOR
645
SCREW IN CASE OF SUBSEQUENT INSTALLATION
650
NUT TWO-WAY VALVE TO BRACKET
655
SCREW , Replaced By: N304017006018
655
SCREW COVER PLATE TO COVER PLATE M 6 X 12
660
NUT , Replaced By: N913004006001
660
NUT PUMP TO BRACKET
665
CABLE HARNESS ELECTRIC
670
COVER SWITCH BOX
675
SCREW PLUG OIL TANK
680
FILTER HOUSING OIL TANK
685
GROMMET , Replaced By: A6999970181
690
GROMMET OIL TANK
695
BRACKET ENGINE
700
HOSE FROM OIL TANK TO SOLENOID VALVE
700
HOSE FROM OIL TANK TO SOLENOID VALVE, ORDER BY THE METER
705
CLAMP , Replaced By: N916017011001
705
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
710
LINE OIL TANK SWE
715
CLAMP , Replaced By: N000000000667
715
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
720
HOSE
725
GROUND STRAP ENGINE SWE
999
TRAILING AXLE FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 749.005
999
TRAILING AXLE FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 749.005
